This setup is not needed at this time for the class. This is kept here for reference only!

For Windows, we will use the Podman container engine, while for Mac, we will use the Docker container engine. For the perspective of the class, both engines work the same way, except for the initial command (podman versus docker). All subcommands for both engines are the same.

Setup Podman on Windows

• Make sure that your Windows is up to date prior to completing the remaining steps.
• If you are running on Windows Home, make sure that you switch out of S mode.
• The minimal configuration this setup has been tested on is:
  • Intel Celeron CPU N3550
  • 4GB memory
  • Windows 10 Home version 20H2

Setup Windows Linux Subsystem

• Download and install Windows Terminal from the Microsoft Store.

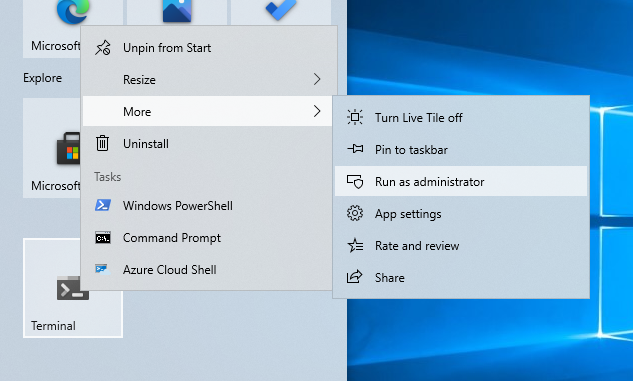

• Launch Windows Terminal in Administrator Mode.

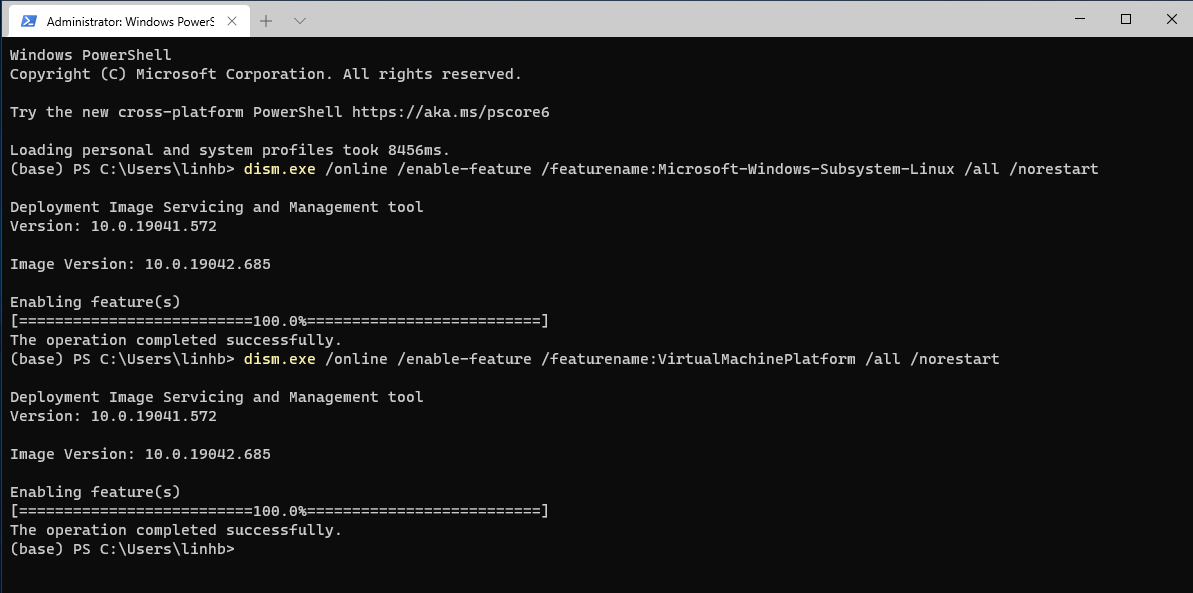

• Run the following commands in the terminal:

$ dism.exe /online /enable-feature /featurename:Microsoft-Windows-Subsystem-Linux /all /norestart
$ dism.exe /online /enable-feature /featurename:VirtualMachinePlatform /all /norestart

• Restart your computer.
• After restarting, download and install WSL2 Linux kernel update package for x64 machines.
• Open another Windows terminal (not in administrator mode) and run

$ wsl --set-default-version 2

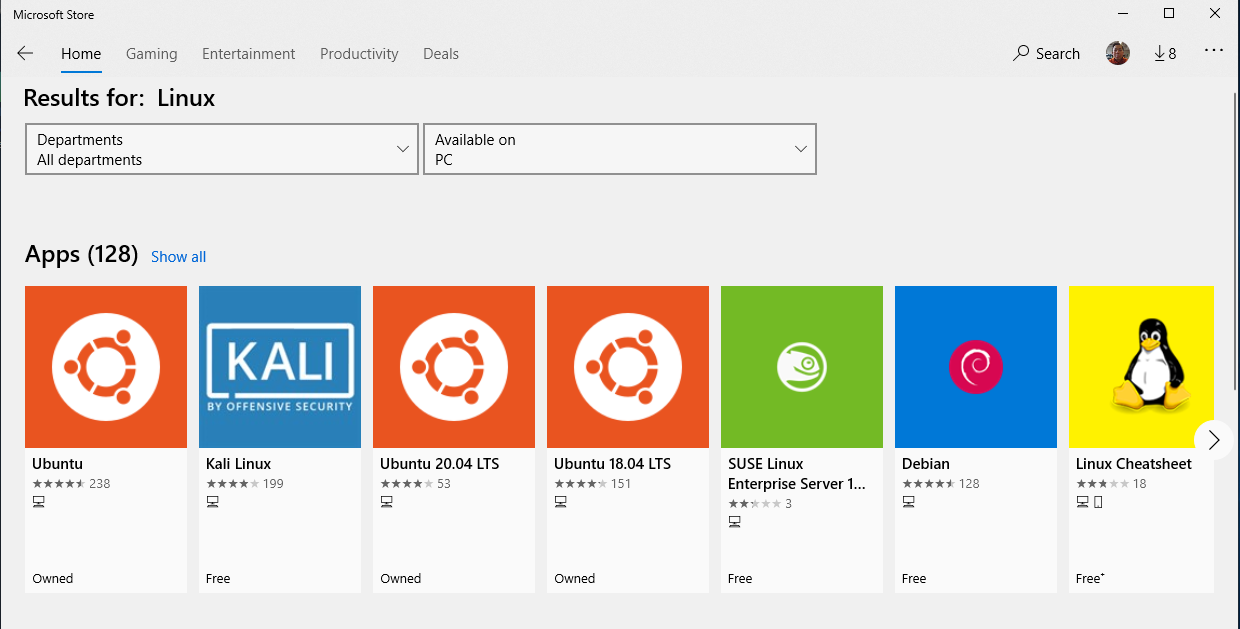

• Open Microsoft Store and search for Linux.
• We will use Ubuntu 20.04 LTS distro.

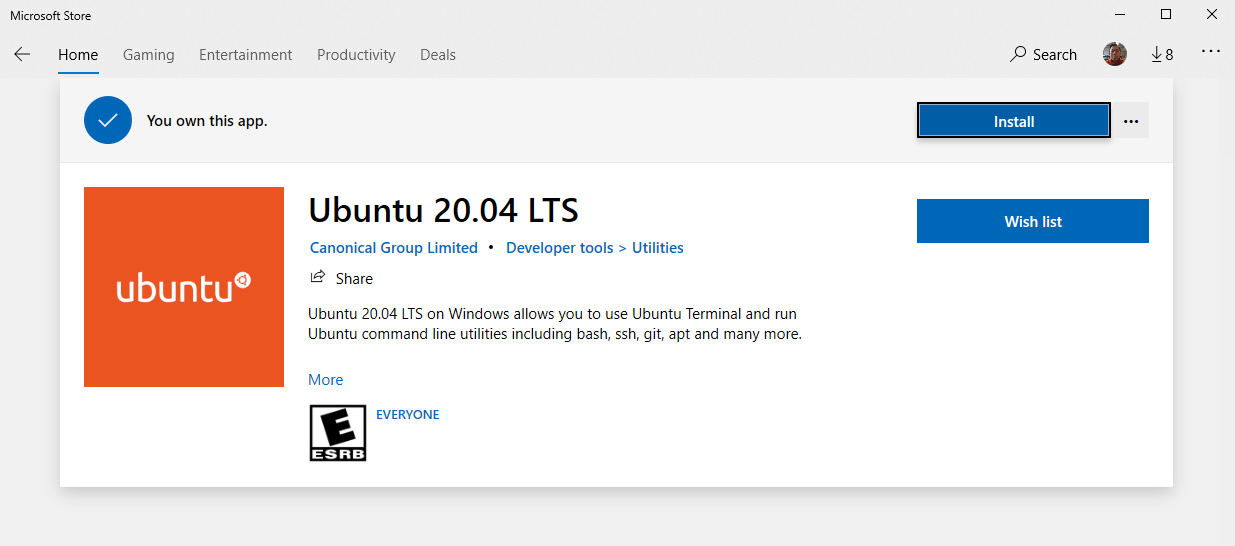

• Select Ubuntu 20.04 LTS and click Install.

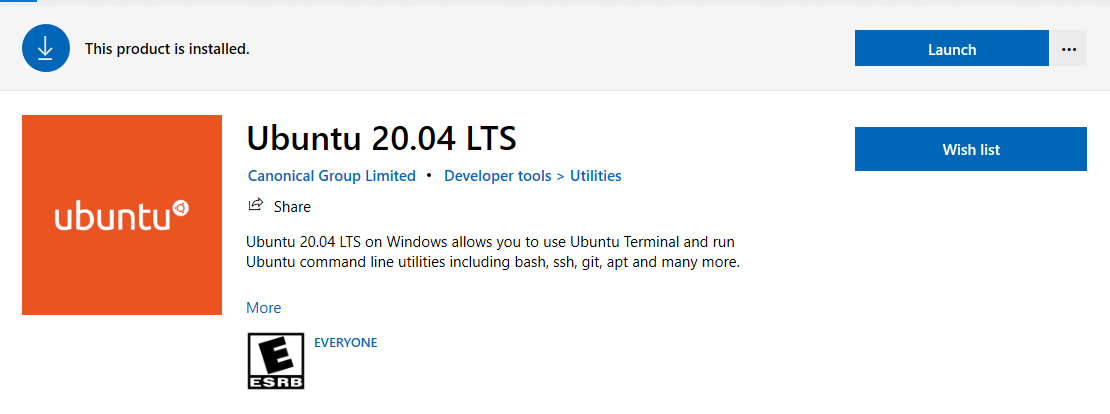

• After finish, click Launch.

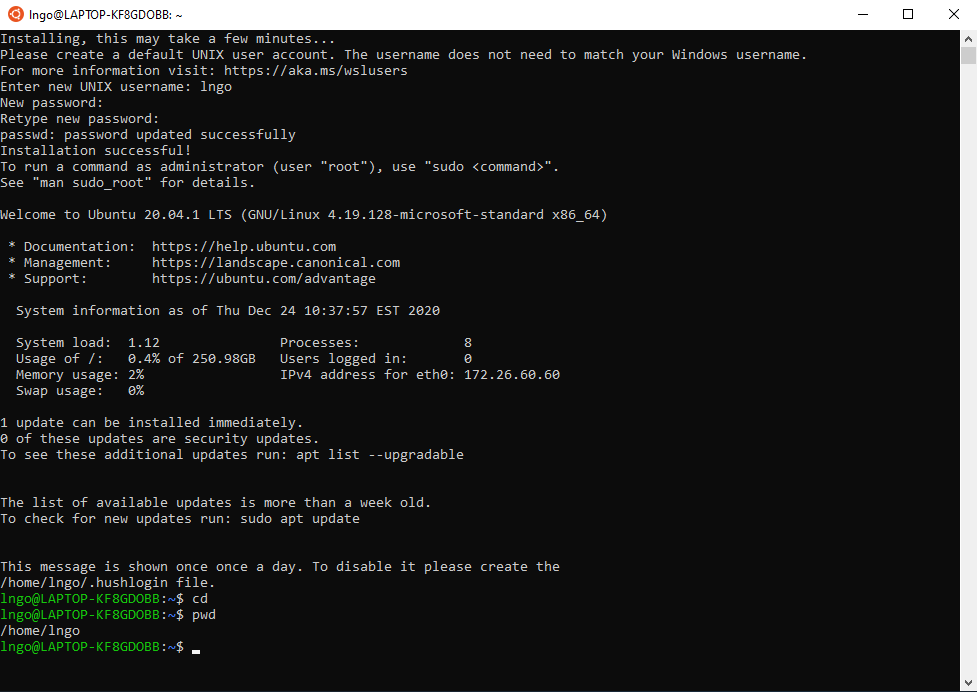

• The initial setup will ask you to enter a Linux username and a root password for this distribution.

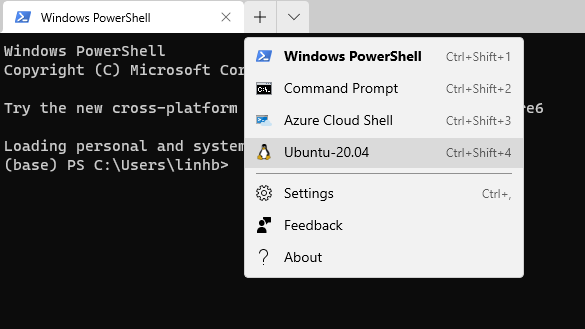

• Relaunch your Windows terminal, and you will see Ubuntu 20.04 available as one of the possible shell options in the dropbox box.

• In a normal PowerShell shell of Windows terminal, you can check that your Linux subsystem is installed and running by executing

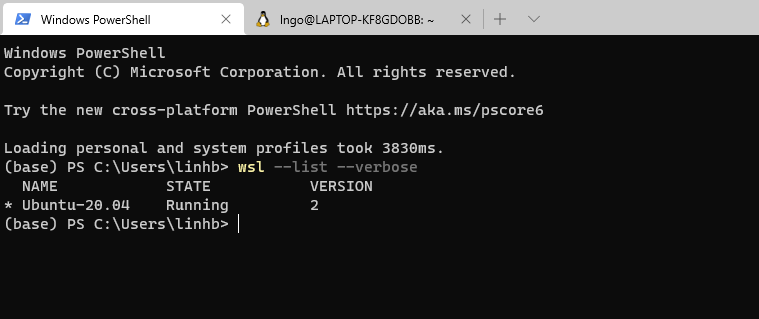

$ wsl --list --verbose

Setup Podman

• Launch a Ubuntu-20.04 shell in Windows Terminal.
• Run the following commands (check your typing carefully!)

$ cd
$ . /etc/os-release
$ sudo sh -c "echo 'deb https://download.opensuse.org/repositories/devel:/kubic:/libcontainers:/stable/xUbuntu_${VERSION_ID}/ /' > /etc/apt/sources.list.d/devel:kubic:libcontainers:stable.list"
$ curl -L https://download.opensuse.org/repositories/devel:/kubic:/libcontainers:/stable/xUbuntu_${VERSION_ID}/Release.key | sudo apt-key add -
$ sudo apt-get update -qq
$ sudo apt-get -qq -y install podman
sudo mkdir -p /etc/containers
echo -e "[registries.search]\nregistries = ['docker.io','quay.io']" | sudo tee /etc/containers/registries.conf
sudo cp /usr/share/containers/containers.conf /etc/containers/

• Open the file /etc/containers/containers.conf using your favorite editor . You will need to run the command with sudo.
• Find the options for cgroup_manager and events_logger (they will be commented out), uncomment, and change them to the followings:

cgroup_manager = "cgroupfs"
events_logger = "file"

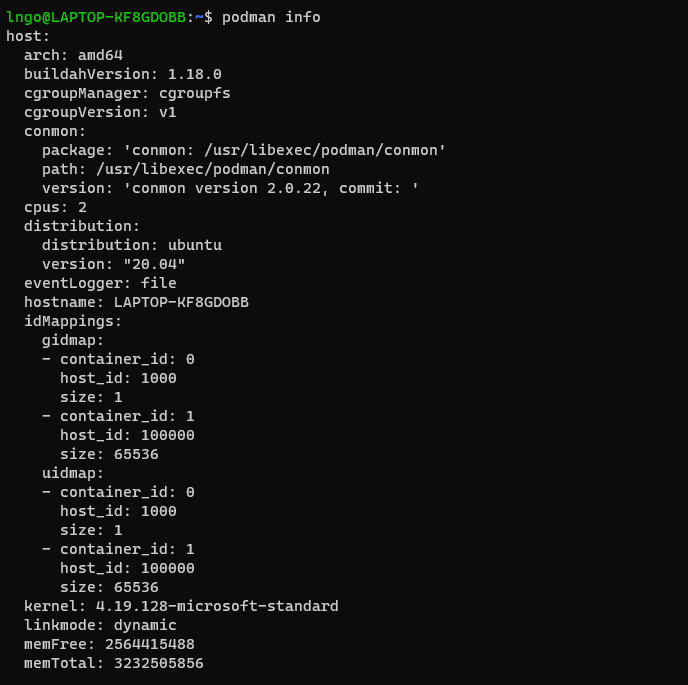

• Now you can test the operation of podman by first run:

podman info

• The resulting output should give detailed information about your machine and the Linux subsystem being used to run podman.

• First, we will use podman to run the Hello World container from docker.io.

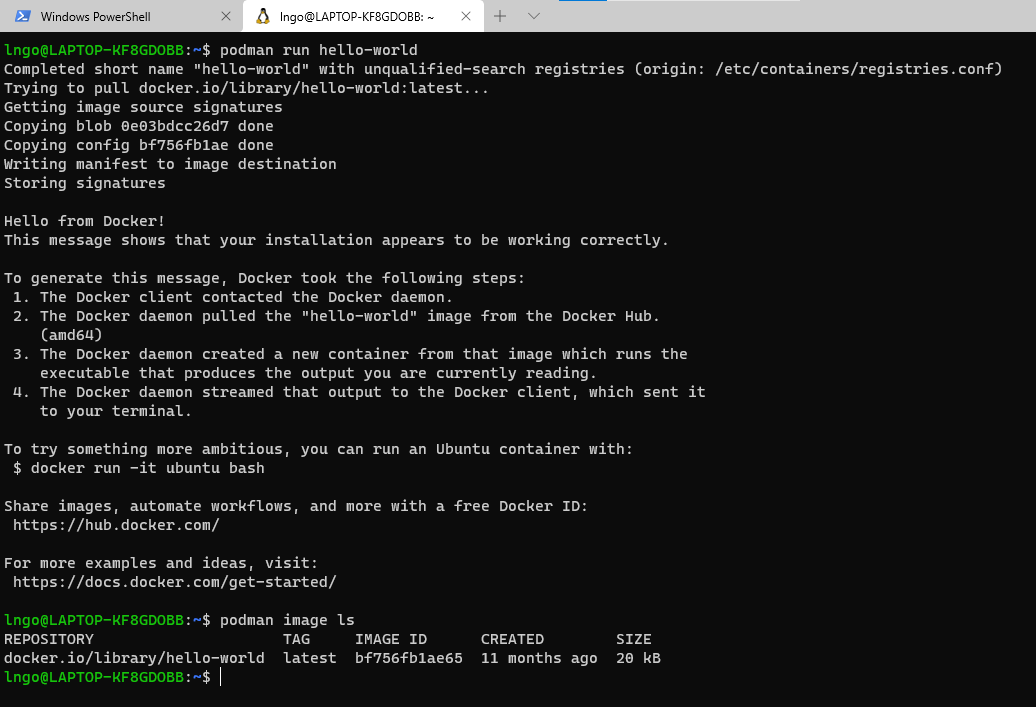

$ podman run hello-world
$ podman image ls

• You should be able to observe how the hello-world image is pulled from docker.io and run, and how the image remains in your computer image repository afterward.

• We need to identify the IP address assigned to the Linux subsystem by Windows

$ ip addr | grep 172

• Next, we will attempt to launch an nginx webserver inside podman and see how we can view the server from the Windows host machine browser.

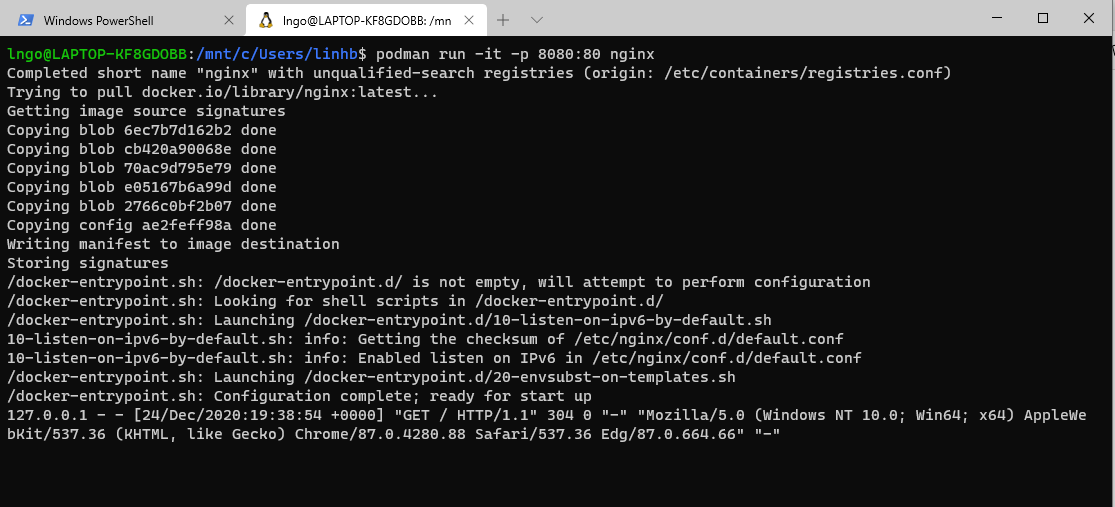

$ podman run -it -p 8080:80 nginx

• Open a browser on your Windows host machine, copy the 172... address found in the previous command, and add :8080 as the port:

Setup for Mac

• Download and install Docker Desktop for Mac
• Use the Search box (magnifying glass on top-right of your Mac Desktop) to find Docker and run.

• A successful launch of Docker will show a swimming whale carrying containers on the top bar of the desktop.

• First, we will use docker to run the Hello World container from docker.io.

$ docker run hello-world
$ docker image ls

• You should be able to observe how the hello-world image is pulled from docker.io and run, and how the image remains in your computer image repository afterward.

• Next, we will attempt to launch an nginx webserver inside podman and see how we can view the server from the Windows host machine browser.

$ docker run -it -p 8080:80 nginx

• Open a browser on your Mac machine and visit 127.0.0.1:8080:
