Distributed and Cluster Computing: Introduction to C

What is C?

• Developed by Dennis Ritchie at Bell Labs
• First public released in 1972.
• The book: *The C programming languange” by Dennis M. Ritchie and Brian W. Kernighan. Prentice Hall 1988.

How to learn C (now that you already know Java)?

• C for Java programmers
• C programming vs. Java programming

Scary stuff ahead …

• C is much less supportive for programmers than Java.
• (Much) easier to make mistake, and (much) harder to fix.

But it is exciting …

• C requires less memory resources than Java.
• C, in many instances, runs faster than Java.
• Knowing C will make you a better programmer overall.

Similarities (or mostly similar) between C and Java

• Values, types, literals, expressions
• Variables
• Control flow (if, switch, while, for, do-while)
• Call-return: parameters, arguments, return values
• Arrays (mostly)
• Primitive and reference types
• Type casting.
• Library usage.

Differences between C and Java

• C has no classes or objects (but something similar)
• C is not object-oriented.
• C arrays are simpler:
  • No boundary checking.
  • No knowledge of array’s own size.
• String operations are limited.
• No collections, exceptions, or generics.
• No automatic memory management.
• Pointers!!!

How Java programs run

How C programs run

Hands-on 1: Getting started

• Connect VSCode to taz.cs.wcupa.edu.
• Navigate to your home directory.
• Open a terminal

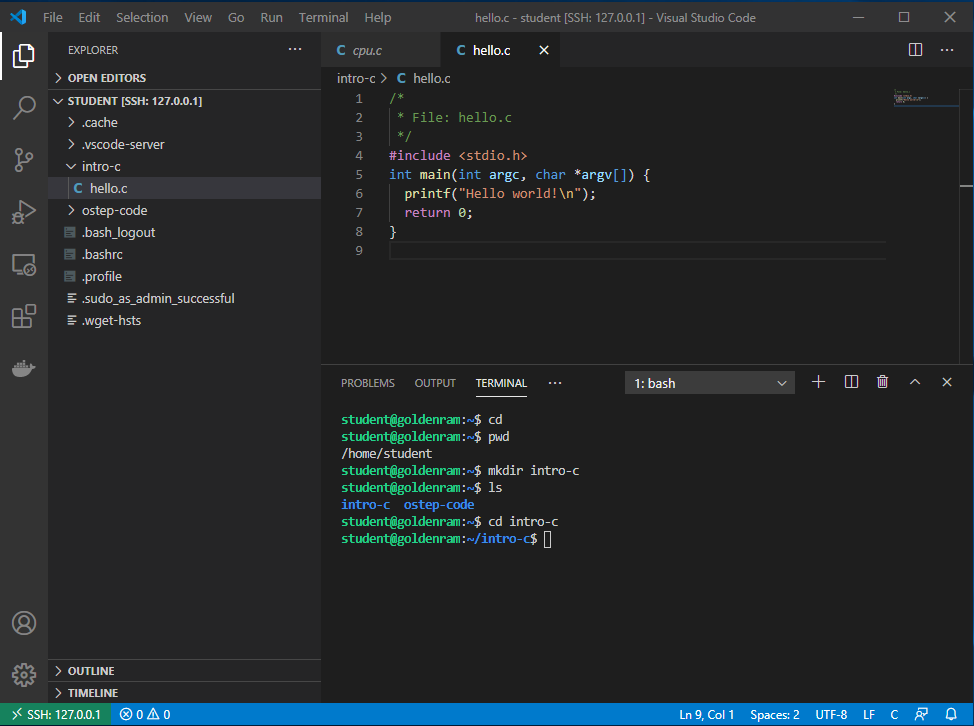

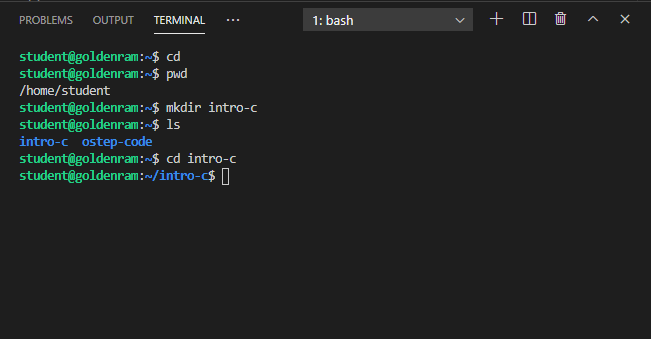

Hands-on 2: Setup directory

Create a directory named intro-c inside your home directory, then change into that directory.

$ cd
$ pwd
$ mkdir intro-c
$ ls
$ cd intro-c

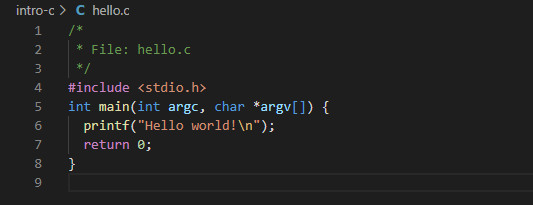

Hands-on 3: Create hello.c

• In the EXPLORER window, right-click on intro-c and select New File.
• Type hello.c as the file name and hits Enter.
• Enter the following source code in the editor windows:
• Save the file when you are done:
  • Ctrl-S for Windows/Linux
  • Command-S for Macs
• Memorize your key-combos!.

/*
 * File: hello.c
 */
#include <stdio.h>
int main(int argc, char *argv[]) {
  printf("Hello world!\n");
  return 0;
}

What’s in the code?

• Line 1-3: Comments, similar to Java.
• Line 4: Standard C library for I/O, similar to Java’s import.
• Line 5-8: Function declaration for main:
  • Line 5:
    • return type: int
    • function name: main
    • parameter list:
      • argc: number of command line arguments.
      • *argv[]: pointers to array of command line argument strings.
  • Line 6: Invoke builtin function printf to print out string Hello world! with an end-of-line character \n. This is similar to System.out.printf.
  • Line 7: Exit a successfully executed program with a return value of 0.

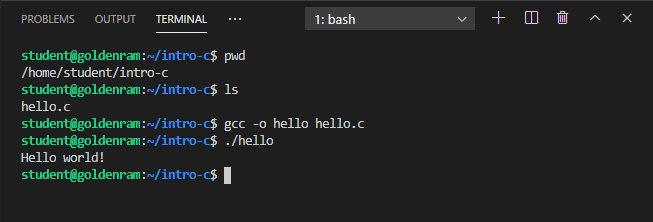

Hands-on 4: Simple compile and run

• Similar to javac, we use gcc to compile C code.
• Before compile, make sure that you are still inside intro-c in the terminal.

$ pwd
$ ls
$ gcc -o hello hello.c
$ ls
$ ./hello

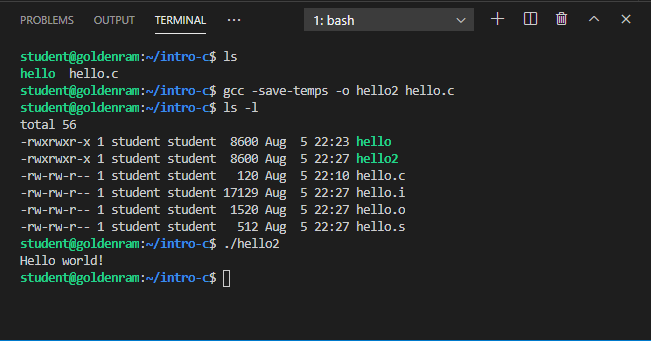

Hands-on 4: Compile and show everything

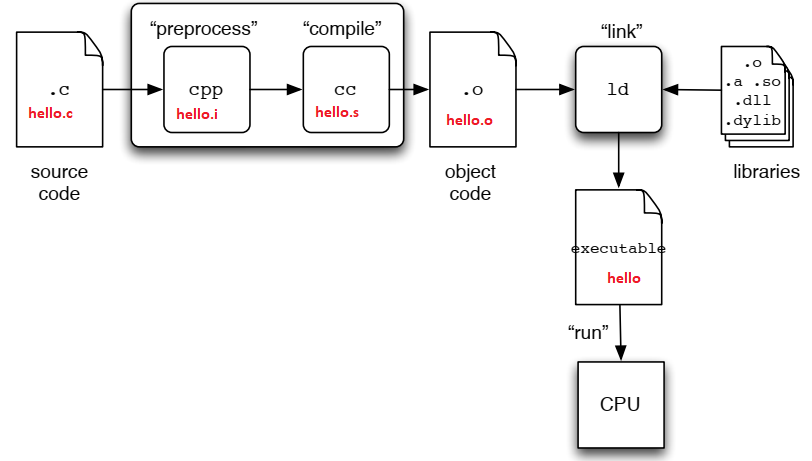

• There are a number of steps from C codes to executable binaries.

$ ls
$ gcc -save-temps -o hello2 hello.c
$ ls -l
$ ./hello2

What are those?

• hello.i: generated by pre-processor
• hello.s: generated by compiler.
• hello.o: generated by assembler.
• hello: executable, generated by linker.

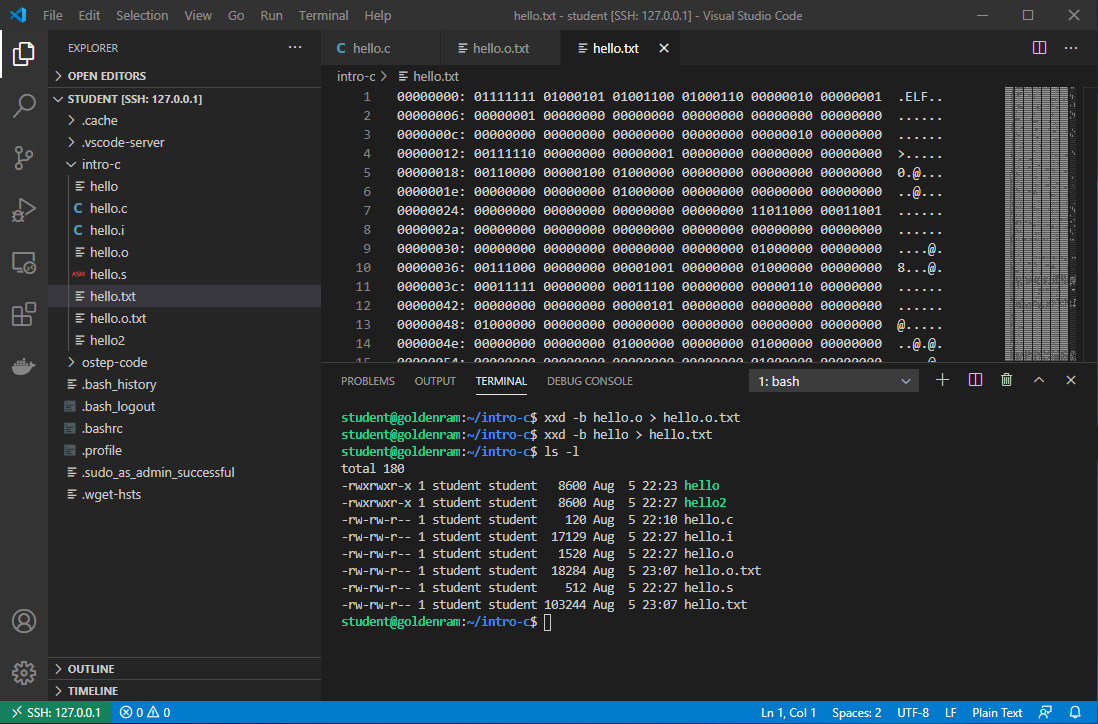

Hands-on 5: View files

• For hello.i and hello.s, they can be view on the editor.
• For hello.o and hello, we need to dump the binary contents first.

$ xxd -b hello.o > hello.o.txt
$ xxd -b hello > hello.txt
$ ls -l

•

Variables, Addresses, and Pointers

• In Java, you can manipulate the value of a variable via the program but not directly in memory (inside the JVM).
• In C, you can retrieve the address of the location in memory where the variable is stored.
• The operator & (reference of) represents the memory address of a variable.

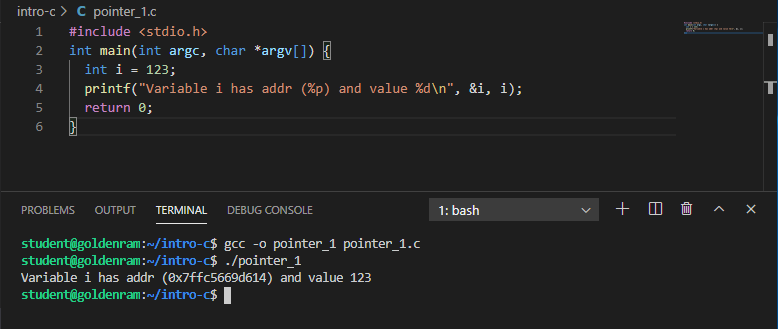

Hands-on 6: Pointer

• In the EXPLORER window, right-click on intro-c and select New File.
• Type pointer_1.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>
int main(int argc, char *argv[]) {
  int i = 123;
  printf("Variable i has addr (%p) and value %d\n", &i, i);
  return 0;
}

• %p is an output conversion syntax (similar to Java specifiers) for displaying memory address in hex format. See [Other Output Conversions][gcc_output_conversion] for more details.
• Compile and run pointer_1.c

Pointer Definition

• Pointer is a variable that points to a memory location (contains a memory location).
  • We can them pointer variables.
• A pointer is denoted by a * character.
• The type of pointer must be the same as that of the value being stored in the memory location (that the pointer points to).
• If a pointer points to a memory location, how do we get these locations?
  • An & character in front of a variable (includes pointer variables) denotes that variable’s address location.

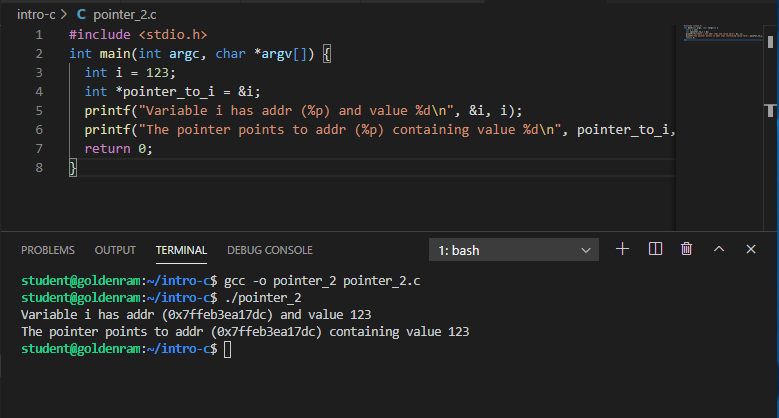

Hands-on 7: Pointer and Variable’s Addresses

• In the EXPLORER window, right-click on intro-c and select New File.
• Type pointer_2.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>
int main(int argc, char *argv[]) {
  int i = 123;
  int *p_i = &i;
  printf("Variable i has addr (%p) and value %d\n", &i, i);
  printf("The pointer points to addr (%p) containing value %d\n", p_i, *p_i);
  return 0;
}

• Since p_i is a pointer variable, p_i contains a memory address (hence %p).
• Then, *p_i will point to the value in the memory address contained in p_i.
  • This is referred to as de-referencing.
  • This is also why the type of a pointer variable must match the type of data stored in the memory address the pointer variable contains.
• Compile and run pointer_2.c

Pass by Value and Pass by Reference

• Parameters are passed to functions.
• Parameters can be value variables or pointer variables.
• What is the difference?

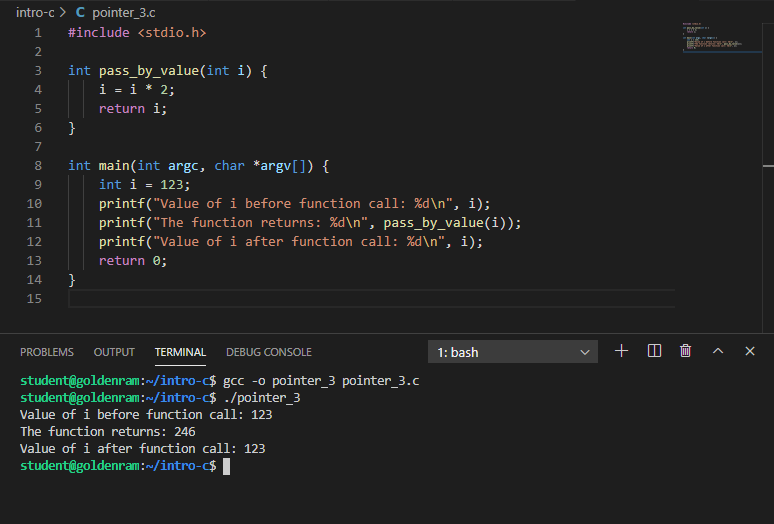

Hands-on 8: Pass by value

• In the EXPLORER window, right-click on intro-c and select New File.
• Type pointer_3.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>

int pass_by_value(int i) {
   i = i * 2;
   return i;
}

int main(int argc, char *argv[]) {
  int i = 123;
  printf("Value of i before function call: %d\n", i);
  printf("The function returns: %d\n", pass_by_value(i));
  printf("Value of i after function call: %d\n", i);
  return 0;
}

• Compile and run pointer_3.c

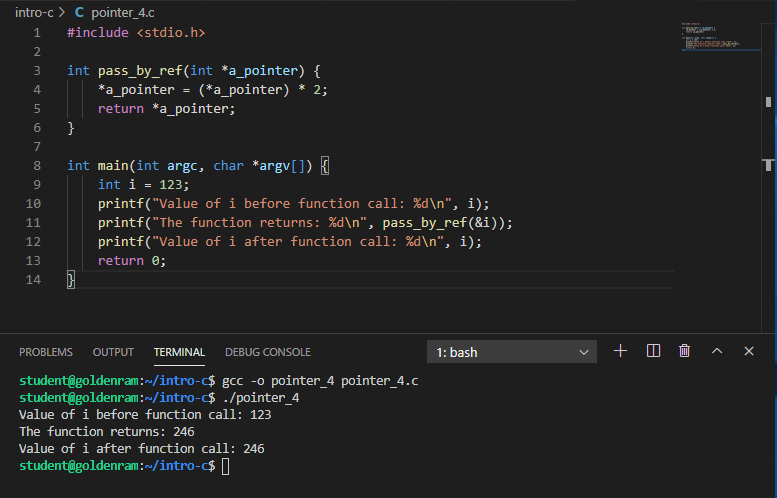

Hands-on 9: Pass by reference

• In the EXPLORER window, right-click on intro-c and select New File.
• Type pointer_4.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>

int pass_by_ref(int *a_pointer) {
  *a_pointer = (*a_pointer) * 2;
  return *a_pointer;
}

int main(int argc, char *argv[]) {
  int i = 123;
  printf("Value of i before function call: %d\n", i);
  printf("The function returns: %d\n", pass_by_ref(&i));
  printf("Value of i after function call: %d\n", i);
  return 0;
}

• Compile and run pointer_4.c

Question

In Java, do you pass by value or pass by reference?

Answer

• Primitives are passed by value.
• Objects are passed by reference.

Pointers and memory allocation

• How does C request dynamic memory when you don’t know at compile-time exactly what you will need?
• How does C allocate memory?
  • Automatic: compile arranges for memory to be allocated and initialized for local variables when it is in scope.
  • Static: memory for static variables are allocated once when program starts.
  • Dynamic: memory is allocated on the fly as needed.

Dynamic memory allocation

• Unlike Java, you have to do everything!
  • Ask for memory.
  • Return memory when you are done (garbage collection!).
• C function: malloc
  • void *malloc(size_t size);
  • The malloc() function allocates size bytes and returns a pointer to the allocated memory. The memory is not initialized. If size is 0, then malloc() returns either NULL, or a unique pointer value that can later be successfully passed to free().
• C function: free
  • void free(void *ptr);
  • The free() function frees the memory space pointed to by ptr, which must have been returned by a previous call to malloc(), calloc() or realloc(). Otherwise, or if free(ptr) has already been called before, undefined behavior occurs. If ptr is NULL, no operation is performed.

Void pointer

• When malloc allocates memory, it returns a sequence of bytes, with no predefined types.
• A pointer that points to this sequence of bytes (the address of the starting byte), is called a void pointer.
• A void pointer will then be typecast to an appropriate type.

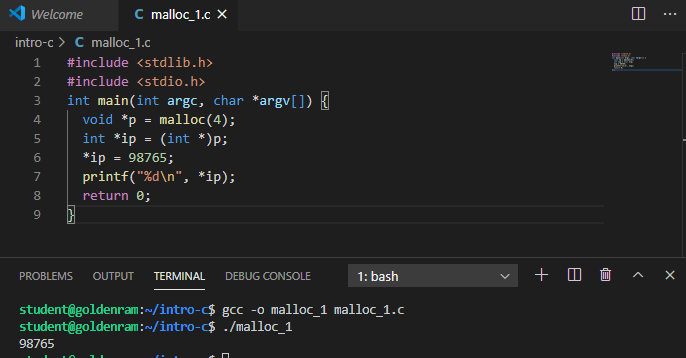

Hands-on 10: Malloc and type cast

• In the EXPLORER window, right-click on intro-c and select New File.
• Type malloc_1.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdlib.h>
#include <stdio.h>

int main(int argc, char *argv[]) {
  void *p = malloc(4);
  int *ip = (int *)p;
  *ip = 98765;
  printf("%d\n", *ip);
 return 0;
}

• What points to where:
  • void *p = malloc(4);: allocate 4 contiguous bytes. The address of the first byte is returned and assign to pointer variable p. p has no type, so it is a void pointer.
  • int *ip = (int *)p;: The address value pointed to by p is assigned to pointer variable ip. The bytes pointed to be p are now casted to type int.
• Compile and run malloc_1.c

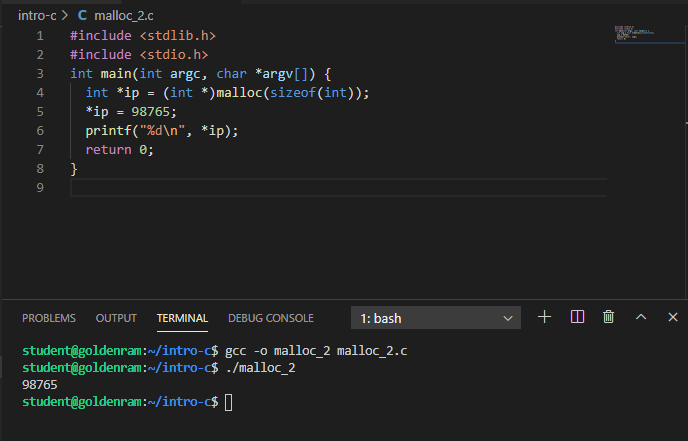

Hands-on 11: Malloc and type cast with calculation

• In the EXPLORER window, right-click on intro-c and select New File.
• Type malloc_2.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdlib.h>
#include <stdio.h>

int main(int argc, char *argv[]) {
  int *ip = (int *)malloc(sizeof(int));
  *ip = 98765;
  printf("%d\n", *ip);
  return 0;
}

• Only ask for exactly what you need!
• Compile and run malloc_2.c

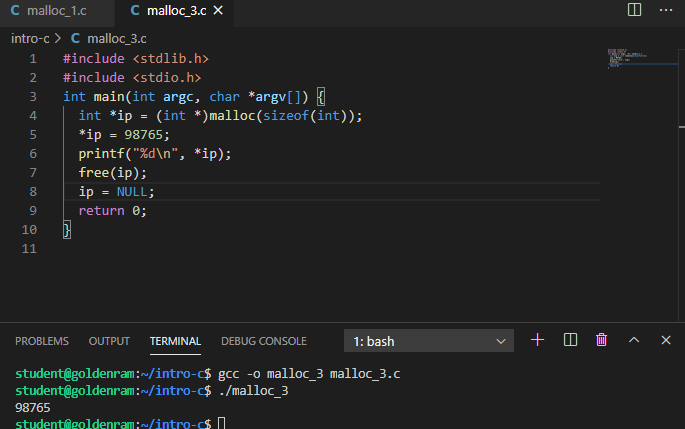

Hands-on 12: Safety

• In the EXPLORER window, right-click on intro-c and select New File.
• Type malloc_3.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdlib.h>
#include <stdio.h>

int main(int argc, char *argv[]) {
  int *ip = (int *)malloc(sizeof(int));
  *ip = 98765;
  printf("%d\n", *ip);
  free(ip);
  ip = NULL;
  return 0;
}

• Only ask for exactly what you need!
• Compile and run malloc_3.c

Dynamic memory allocation

• Critical to support complex data structures that grow as the program executes.
• In Java, custom classes such as ArrayList and Vector provide such support.
• In C, you have to do it manually: How?
• Let’s start with a simpler problem:
  • How can we dynamically allocate memory to an array whose size is not known until during run time?

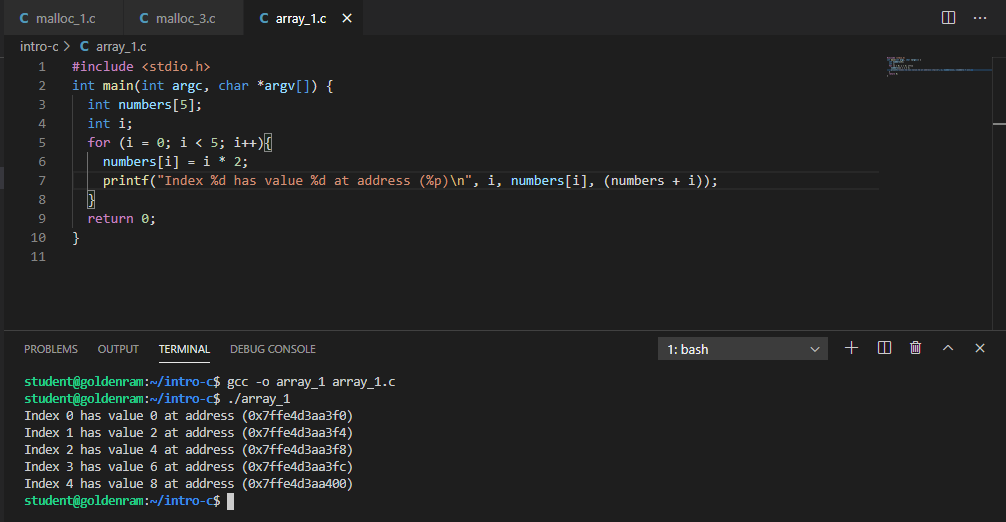

Hands-on 13: What does an array in C look like?

• In the EXPLORER window, right-click on intro-c and select New File.
• Type array_1.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>
int main(int argc, char *argv[]) {
  int numbers[5];
  int i;
  for (i = 0; i < 5; i++){
    numbers[i] = i * 2;
    printf("Index %d has value %d at address (%p)\n", i, numbers[i], (numbers + i));
  }
  return 0;
}

• What is the distance between addresses? Why?
• Compile and run array_1.c

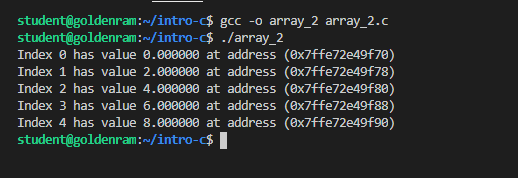

Exercise

• Create a copy of array_1.c called array_2.c.
• Change the type of numbers to double.
• What is the address step now?

Answer

An array variable

• … is in fact pointing to an address containing a value.
• … without the bracket notation and an index points to the corresponding address of the value at the index.
• … is quite similar to a pointer!

Hands-on 14: Array as pointer (or vice versa …)

• In the EXPLORER window, right-click on intro-c and select New File.
• Type array_3.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>
#include <stdlib.h>
int main(int argc, char *argv[]) {
  int i, size;
  int *p;
  size = 5;
  p = malloc(sizeof(int) * size);
  for (i = 0; i < size; i++){
    printf("Before init, index %d has value %d at addr (%p)\n", i, p[i], p + i);
    p[i] = i * 2;
    printf("After init, index %d has value %d at addr (%p)\n", i, p[i], p + i);
  }
  return 0;
}

• Compile and run array_3.c

Hands-on 15: Dynamic array creation with command line arguments.

• In the EXPLORER window, right-click on intro-c and select New File.
• Type array_4.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>
#include <stdlib.h>
int main(int argc, char *argv[]) {
  int i, size;
  int *p;
  size = atoi(argv[1]);
  printf(“Before malloc, p is pointing to address (%p)\n”, p);
  p = malloc(sizeof(int) * size);
  for (i = 0; i < size; i++){
    p[i] = i * 2;
    printf("After malloc and assignment, index %d has value %d at addr (%p)\n", i, p[i], p + i);
  }
  return 0;
}

• In C, the command line arguments include the program’s name. The actual arguments start at index position 1 (not 0 like Java).
• Compile and run array_4.c

Hands-on 16: String

• In the EXPLORER window, right-click on intro-c and select New File.
• Type string_1.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include<stdio.h>

int main(int argc, char *argv[]) {
  int i;
  char str[] = "Hello, world!";
  printf("%s\n",str);
  for (i = 0; i < 12; i++) {
    printf("%c ", str[i]);
  }
  printf("\n");
  return 0;
}

• Compile and run string_1.c

Hands-on 17: Array of strings

• In the EXPLORER window, right-click on intro-c and select New File.
• Type string_2.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int main(int argc, char *argv[]){
  int i, word_count;
  int str_len[2] = {6, 4};
  char **s_array;
  word_count = 2;
  s_array = (char**)calloc(word_count, sizeof(char *));
  for (i = 0; i < word_count; i++){
    s_array[i] = (char *)calloc(str_len[i], sizeof(char));
  }
  strcpy(s_array[0], "Golden");
  strcpy(s_array[1], "Rams");
  printf("%s %s\n", s_array[0], s_array[1]);
  return 0;
}

• Compile and run string_2.c

Object in C

• C has no classes or objects.
• Instead, it has struct type (think ancestor of objects) .

Hands-on 18: Struct in C

• In the EXPLORER window, right-click on intro-c and select New File.
• Type struct_1.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>

struct point {
  int x;
  int y;
};

int main(int argc, char *argv[]){
  struct point origin;
  origin.x = 0;
  origin.y = 0;

  printf("The coordinates of the origin are: %d %d\n", origin.x, origin.y);
  printf("The address of coordinates of the origin are: %p %p\n", &origin.x, &origin.y);
  return 0;
}

• Compile and run struct_1.c

Hands-on 19: Struct of structs in C

• In the EXPLORER window, right-click on intro-c and select New File.
• Type struct_2.c as the file name and hits Enter.
• Enter the following source code in the editor windows:

#include <stdio.h>

struct point {
  int x;
  int y;
};

struct line {
  struct point start;
  struct point end;
};

int main(int argc, char *argv[]){
  struct point origin;
  origin.x = 0;
  origin.y = 0;

  printf("The coordinates of the lines are: %d %d %d %d\n",
          l.start.x, l.start.y, l.end.x, l.end.y);
  printf("The address of coordinates of the origin are: %p %p %p %p\n",
          &l.start.x, &l.start.y, &l.end.x, &l.end.y);
  return 0;
}

• Compile and run struct_1.c

Function in C

• Almost the same as methods in Java, except for one small difference.
• They need to either be declared, or must be defined prior to being called (relative to written code position).

Hands-on 20: Functions in C - definition and declaration

• Create three C files, funcion_1.c, function_2.c, and function_3.c, with the source codes below:

/* function_1.c */
#include <stdio.h>

int times2(int x) {
  return x * 2;
}

int times4(int x) {
  return times2(x) * 2;
}

int main(int argc, char *argv[]) {
  int x = 100;
  printf("Result: %d\n", times4(x));
  return 0;
}

/* function_2.c */
#include <stdio.h>

int times4(int x) {
  return times2(x) * 2;
}

int times2(int x) {
  return x * 2;
}

int main(int argc, char *argv[]) {
  int x = 100;
  printf("Result: %d\n", times4(x));
  return 0;
}

/* function_3.c */
#include <stdio.h>
int times2(int x);
int times4(int x);

int times4(int x) {
  return times2(x) * 2;
}

int times2(int x) {
  return x * 2;
}

int main(int argc, char *argv[]) {
  int x = 100;
  printf("Result: %d\n", times4(x));
  return 0;
}

• Compile and run these files.
