Introduction to OpenMP

Overview

Teaching: 0 min
Exercises: 0 min

Questions

• What is the OpenMP model?

Objectives

• Know the target hardware architecture for OpenMP

• Be able to compile and run an OpenMP program.

• Understand the concept of parallel regions.

Target hardware

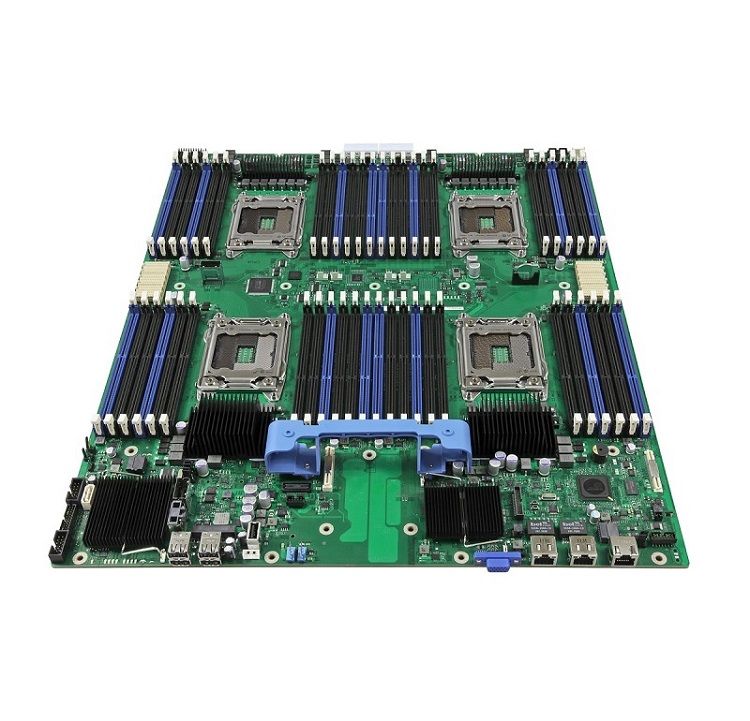

• Single computing node, multiple sockets, multiple cores.
• Dell PowerEdge M600 Blade Server.

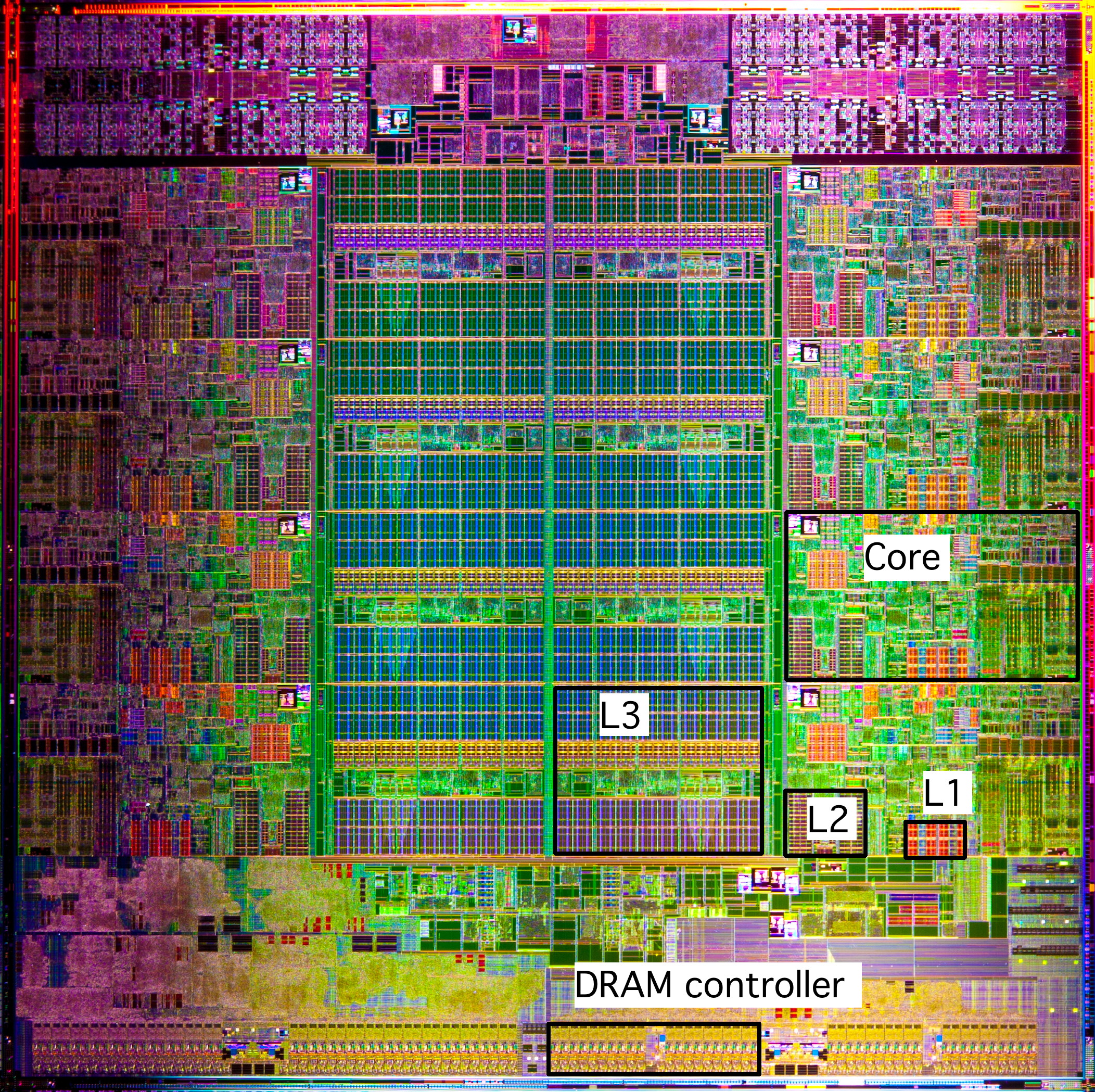

• Intel Sandy Bridge CPU.
• In summary
  • Node with up to four sockets.
  • Each socker has up to 60 cores.
  • Each core is an independent CPU.
  • Each core has access to all the memory on the node.

Target software

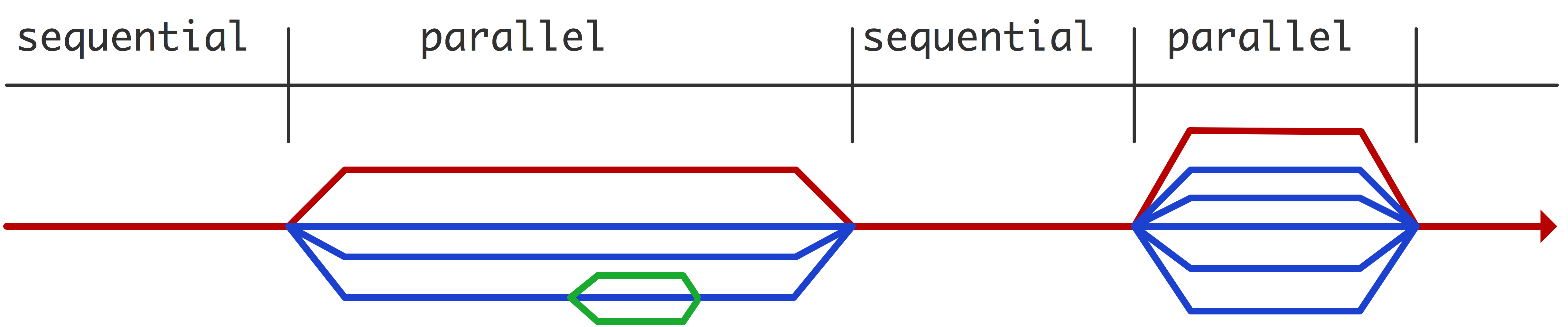

• Provide wrappers for threads and fork/join model of parallelism.
  • Program originally runs in sequential mode.
  • When parallelism is activated, multiple threads are forked from the original proces/thread (master thread).
  • Once the parallel tasks are done, threads are joined back to the original process and return to sequential execution.

• The threads have access to all data in the master thread. This is shared data.
• The threads also have their own private memory stack.

Basic requirements to write, compile, and run an OpenMP program

• Source code (C) needs to include #include <omp.h>
• Compiling task need to have -fopenmp flag.
• Specify the environment variable OMP_NUM_THREADS.

OMP directives

• OpenMP must be told when to parallelize.
• For C/C++, pragma is used to annotate:

  #pragma omp somedirective clause(value, othervalue)
  parallel statement;


• or

  #pragma omp somedirective clause(value, othervalue)
  {
  parallel statement 1;
  parallel statement 2;
  ...
  }

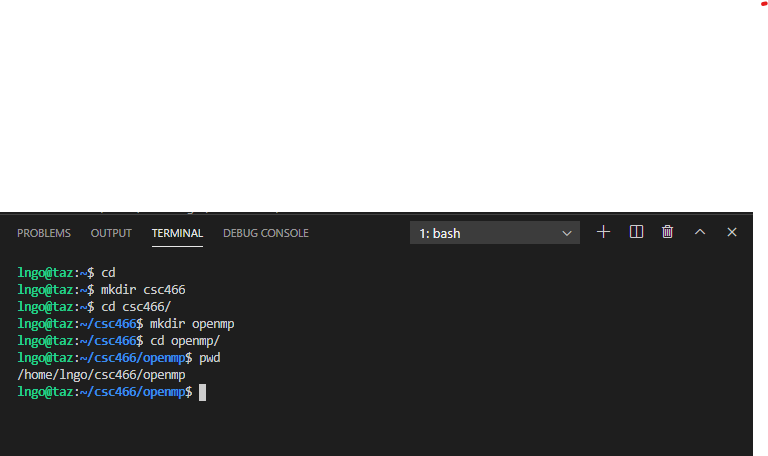

Hands-on 1: Setup directory

• Create a directory named csc466 inside your home directory, then change into that directory.
• Next, create a directory called openmp, and change into that directory

  $ cd
  $ mkdir csc466
  $ cd csc466
  $ mkdir openmp
  $ cd openmp

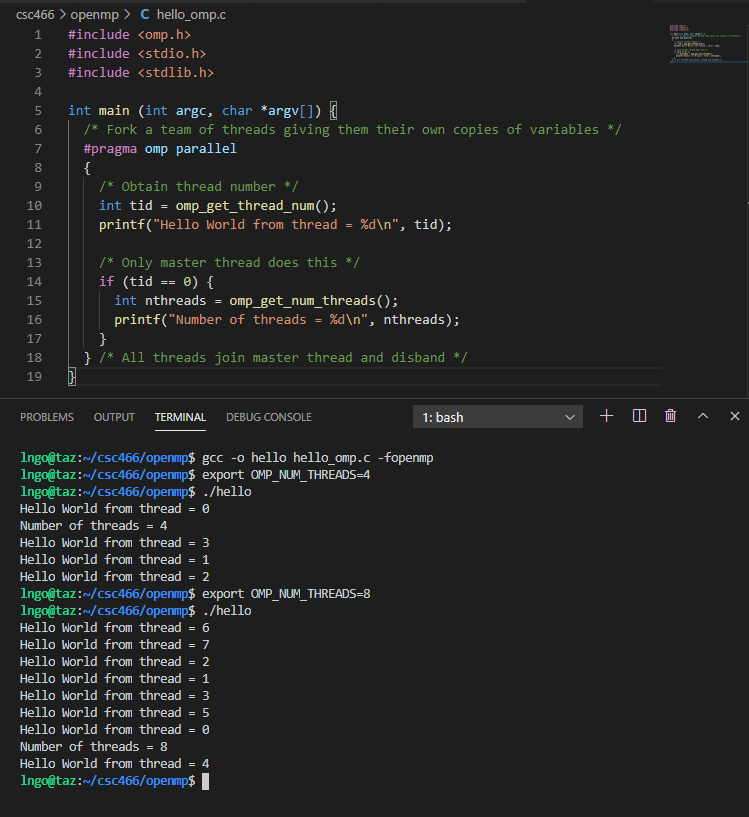

Hands-on 2: Create hello_omp.c

• In the EXPLORER window, right-click on csc466/openmp and select New File.
• Type hello_omp.c as the file name and hits Enter.
• Enter the following source code in the editor windows:
• Save the file when you are done:
  • Ctrl-S for Windows/Linux
  • Command-S for Macs
• Memorize your key-combos!.

#include <omp.h>
#include <stdio.h>
#include <stdlib.h>

int main (int argc, char *argv[]) {
  /* Fork a team of threads giving them their own copies of variables */
  #pragma omp parallel
  {
    /* Obtain thread number */
    int tid = omp_get_thread_num();
    printf("Hello World from thread = %d\n", tid);

    /* Only master thread does this */
    if (tid == 0) {
      int nthreads = omp_get_num_threads();
      printf("Number of threads = %d\n", nthreads);
    }
  } /* All threads join master thread and disband */
}

• Line 1: Include omp.h to have libraries that support OpenMP.
• Line 7: Declare the beginning of the parallel region. Pay attention to how the curly bracket is setup, comparing to the other curly brackets.
• Line 10: omp_get_thread_num gets the ID assigned to the thread and then assign it to a variable named tid of type int.
• Line 15: omp_get_num_threads gets the value assigned to OMP_NUM_THREADS and return it to a variable named nthreads of type int.

What’s important?

• tid and nthreads.
• They allow us to coordinate the parallel workloads.
• Specify the environment variable OMP_NUM_THREADS.

$ export OMP_NUM_THREADS=4

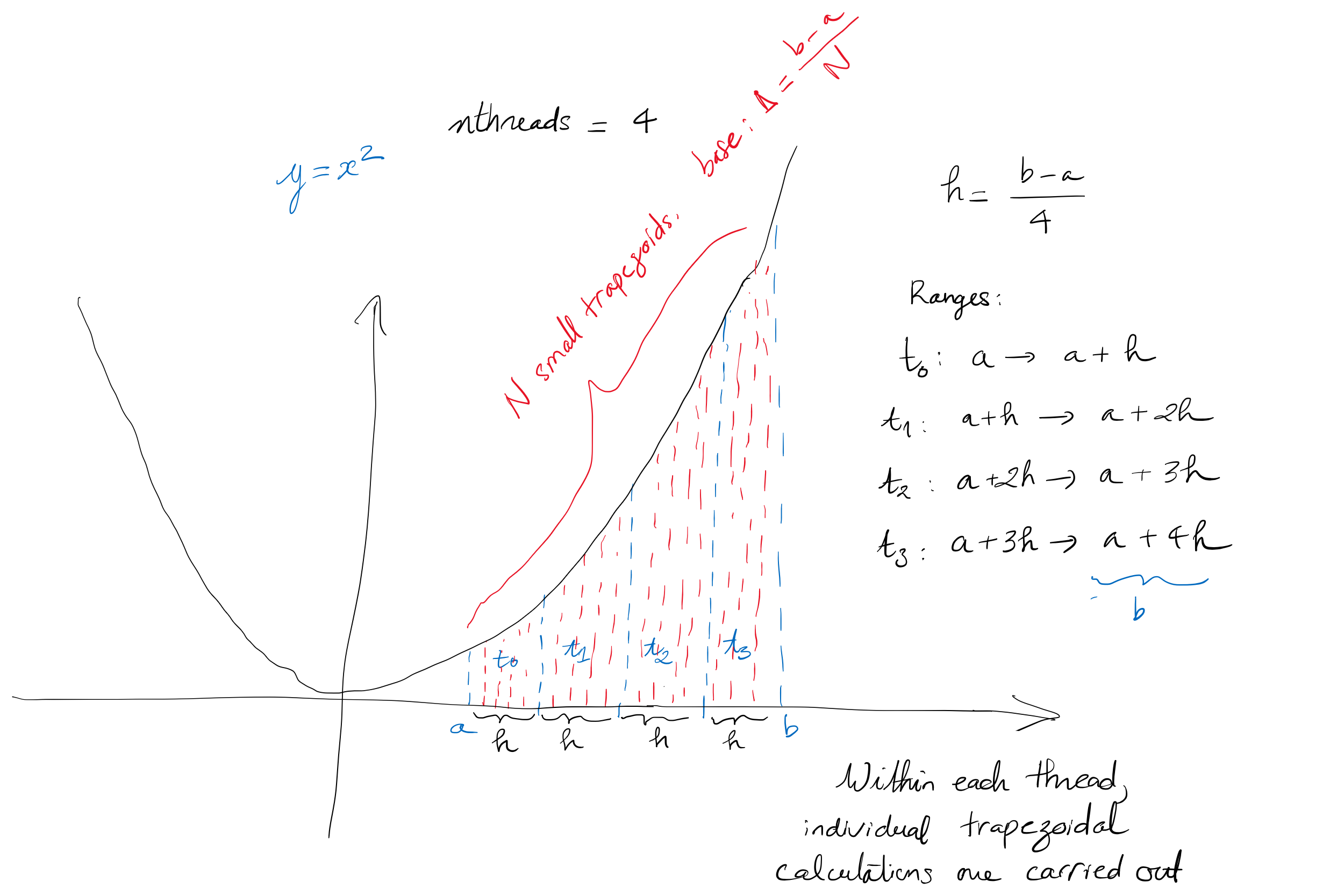

Example: trapezoidal

• Problem: estimate the integral of $y=x^2$ on $[2,8]$ using trapezoidal rule. four threads.
• With 4 threads: nthreads=4.
  • How to decide which thread will handle which segment?
  • How to get all results back together?

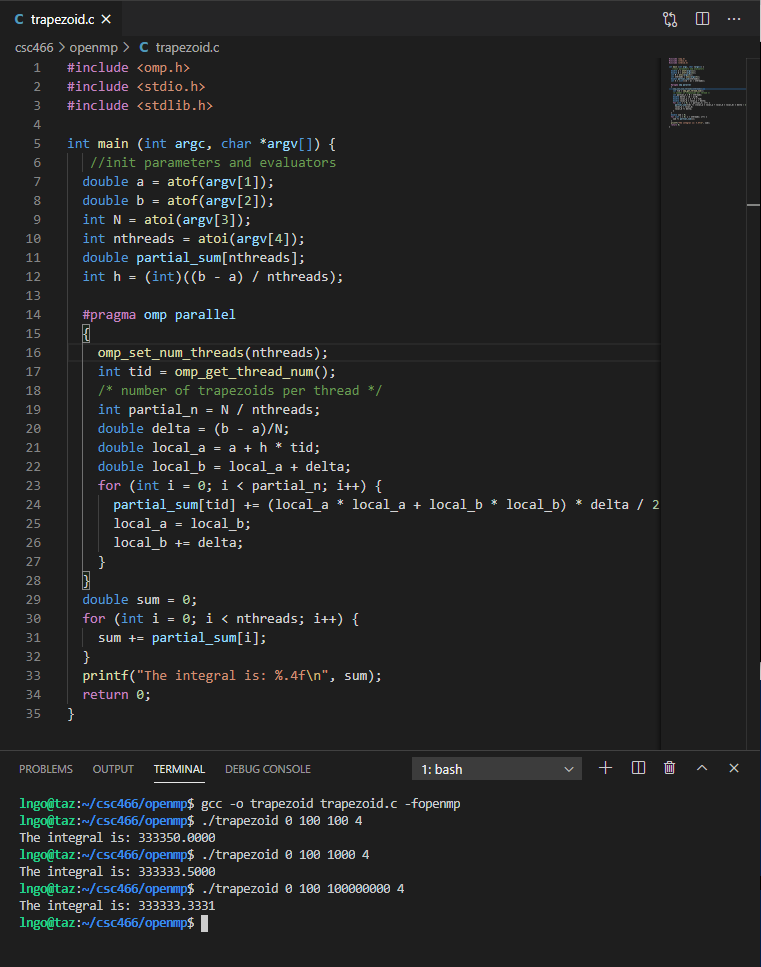

Hands-on 3: Trapezoid implementation

• In the EXPLORER window, right-click on csc466/openmp and select New File.
• Type trapezoid.c as the file name and hits Enter.
• Enter the following source code in the editor windows:
• Save the file when you are done:
  • Ctrl-S for Windows/Linux
  • Command-S for Macs
• Memorize your key-combos!.

#include <omp.h>
#include <stdio.h>
#include <stdlib.h>

int main (int argc, char *argv[]) {
  //init parameters and evaluators
  double a = atof(argv[1]);
  double b = atof(argv[2]);
  int N = atoi(argv[3]);
  int nthreads = atoi(argv[4]);
  double partial_sum[nthreads];
  double h = ((b - a) / nthreads);

  omp_set_num_threads(nthreads);
  #pragma omp parallel
  {
    int tid = omp_get_thread_num();
    /* number of trapezoids per thread */
    int partial_n = N / nthreads;
    double delta = (b - a)/N;
    double local_a = a + h * tid;
    double local_b = local_a + delta;
    for (int i = 0; i < partial_n; i++) {
      partial_sum[tid] += (local_a * local_a + local_b * local_b) * delta / 2;
      local_a = local_b;
      local_b += delta;
    }
  }
  double sum = 0;
  for (int i = 0; i < nthreads; i++) {
    sum += partial_sum[i];
  }
  printf("The integral is: %.4f\n", sum);
  return 0;
}

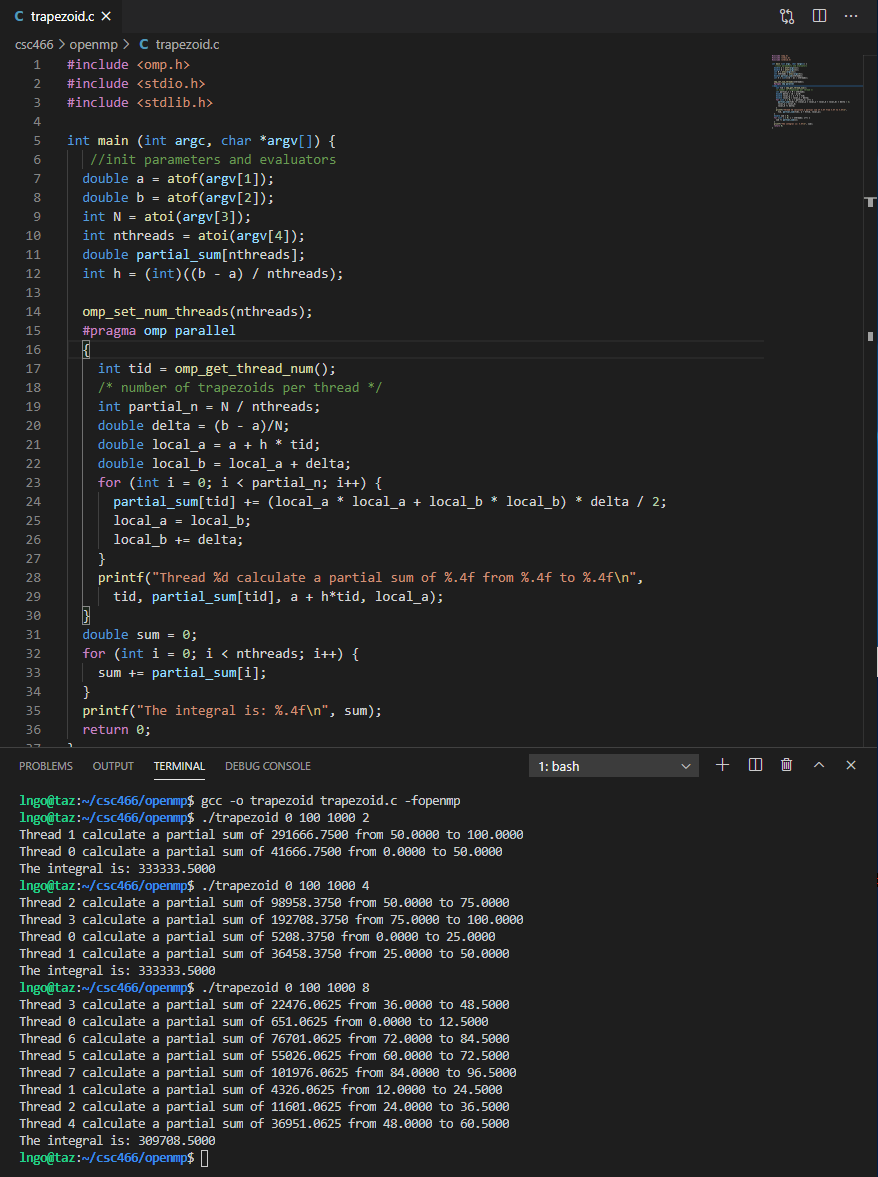

Hands-on 4: A bit more detailed

• Modify the trapezoid.c so that it looks like below.
• Save the file when you are done:
  • Ctrl-S for Windows/Linux
  • Command-S for Macs
• Memorize your key-combos!.

#include <omp.h>
#include <stdio.h>
#include <stdlib.h>

int main (int argc, char *argv[]) {
  //init parameters and evaluators
  double a = atof(argv[1]);
  double b = atof(argv[2]);
  int N = atoi(argv[3]);
  int nthreads = atoi(argv[4]);
  double partial_sum[nthreads];
  double h = ((b - a) / nthreads);

  omp_set_num_threads(nthreads);
  #pragma omp parallel
  {
    int tid = omp_get_thread_num();
    /* number of trapezoids per thread */
    int partial_n = N / nthreads;
    double delta = (b - a)/N;
    double local_a = a + h * tid;
    double local_b = local_a + delta;
    for (int i = 0; i < partial_n; i++) {
      partial_sum[tid] += (local_a * local_a + local_b * local_b) * delta / 2;
      local_a = local_b;
      local_b += delta;
    }
    printf("Thread %d calculate a partial sum of %.4f from %.4f to %.4f\n", tid, partial_sum[tid], a + h*tid, local_a);
  }
  double sum = 0;
  for (int i = 0; i < nthreads; i++) {
    sum += partial_sum[i];
  }
  printf("The integral is: %.4f\n", sum);
  return 0;
}

Challenge 1:

Alternate the trapezoid.c code so that the parallel region will invokes a function to calculate the partial sum.

Solution

#include <omp.h>
#include <stdio.h>
#include <stdlib.h>

double trap(double a, double b, int N, int nthreads, int tid) {
  double h = ((b - a) / nthreads);
  int partial_n = N / nthreads;
  double delta = (b - a)/N;
  double local_a = a + h * tid;
  double local_b = local_a + delta;
  double p_sum = 0;
  for (int i = 0; i < partial_n; i++) {
    p_sum += (local_a * local_a + local_b * local_b) * delta / 2;
    local_a = local_b;
    local_b += delta;
  }
  return p_sum;
}

int main (int argc, char *argv[]) {
   //init parameters and evaluators
  double a = atof(argv[1]);
  double b = atof(argv[2]);
  int N = atoi(argv[3]);
  int nthreads = atoi(argv[4]);
  double partial_sum[nthreads];

  omp_set_num_threads(nthreads);
  #pragma omp parallel
  {
    int tid = omp_get_thread_num();
    partial_sum[tid] = trap(a, b, N, nthreads, tid) ;
  }
  double sum = 0;
  for (int i = 0; i < nthreads; i++) {
    sum += partial_sum[i];
  }
  printf("The integral is: %.4f\n", sum);
  return 0;
}

Challenge 2:

• Write a program called sum_series.c that takes a single integer N as a command line argument and calculate the sum of the first N non-negative integers.
• Speed up the summation portion by using OpenMP.
• Assume N is divisible by the number of threads.

Solution

#include <omp.h>
#include <stdio.h>
#include <stdlib.h>

int sum(int N, int nthreads, int tid) {
  int count = N / nthreads;
  int start = count * tid + 1;
  int p_sum = 0;
  for (int i = start; i < start + count; i++) {
    p_sum += i;
  }
  return p_sum;
}

int main (int argc, char *argv[]) {
  int N = atoi(argv[1]);
  int nthreads = atoi(argv[2]);
  int partial_sum[nthreads];

  omp_set_num_threads(nthreads);
  #pragma omp parallel
  {
    int tid = omp_get_thread_num();
    partial_sum[tid] = sum(N, nthreads, tid) ;
  }
  int sum = 0;
  for (int i = 0; i < nthreads; i++) {
    sum += partial_sum[i];
  }
  printf("The sum of series is: %.4f\n", sum);
  return 0;
}

Challenge 3:

• Write a program called sum_series_2.c that takes a single integer N as a command line argument and calculate the sum of the first N non-negative integers.
• Speed up the summation portion by using OpenMP.
• There is no assumtion that N is divisible by the number of threads.

Solution

#include <omp.h>
#include <stdio.h>
#include <stdlib.h>

int sum(int N, int nthreads, int tid) {
  int count = N / nthreads;
  int start = count * tid;
  int end = start + count;
  int p_sum = 0;

  for (int i = start; i < end; i++) {
    p_sum += i;
  }
  if (tid < remainder) {
    p_sum += count * remainder + tid + 1;
  }

  return p_sum;
}

int main (int argc, char *argv[]) {
  int N = atoi(argv[1]);
  int nthreads = atoi(argv[2]);
  int partial_sum[nthreads];

  omp_set_num_threads(nthreads);
  #pragma omp parallel
  {
    int tid = omp_get_thread_num();
    partial_sum[tid] = sum(N, nthreads, tid) ;
  }
  int sum = 0;
  for (int i = 0; i < nthreads; i++) {
    sum += partial_sum[i];
  }
  printf("The sum of series is: %.4f\n", sum);
  return 0;
}

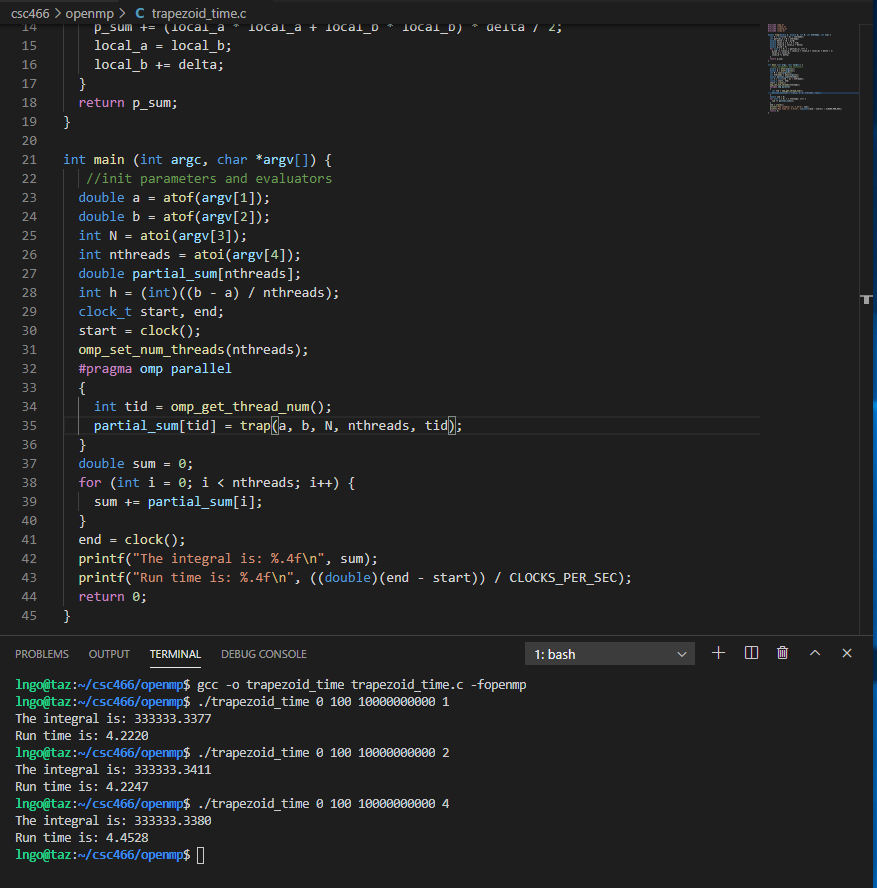

Hands-on 5: Trapezoid implementation with timing

• In the EXPLORER window, right-click on csc466/openmp and select New File.
• Type trapezoid_time.c as the file name and hits Enter.
• Enter the following source code in the editor windows (You can copy the contents of trapezoid.c with function from Challenge 1 as a starting point):
• Save the file when you are done:
  • Ctrl-S for Windows/Linux
  • Command-S for Macs
• Memorize your key-combos!.

#include <omp.h>
#include <stdio.h>
#include <stdlib.h>
#include <time.h>

int main (int argc, char *argv[]) {
  //init parameters and evaluators
  double a = atof(argv[1]);
  double b = atof(argv[2]);
  int N = atoi(argv[3]);
  int nthreads = atoi(argv[4]);
  double partial_sum[nthreads];
  double h = ((b - a) / nthreads);
  clock_t start, end;

  omp_set_num_threads(nthreads);
  start = clock();
  #pragma omp parallel
  {
    int tid = omp_get_thread_num();
    /* number of trapezoids per thread */
    int partial_n = N / nthreads;
    double delta = (b - a)/N;
    double local_a = a + h * tid;
    double local_b = local_a + delta;
    for (int i = 0; i < partial_n; i++) {
      partial_sum[tid] += (local_a * local_a + local_b * local_b) * delta / 2;
      local_a = local_b;
      local_b += delta;
    }
  }
  end = clock();
  double sum = 0;
  for (int i = 0; i < nthreads; i++) {
    sum += partial_sum[i];
  }
  printf("The integral is: %.4f\n", sum);
  printf("The run time is: %.4f\n", ((double) (end - start)) / CLOCKS_PER_SEC);
  return 0;
}

• How’s the run time?

Key Points
