Introduction to MPI

Overview

Teaching: 0 min
Exercises: 0 min

Questions

Objectives

• Understand the origin of message passing interface (MPI)

• Know the basic MPI routines to identify rank and get total number of participating processes.

• Understand how to leverage process rank and total process count for work assignment.

1. Message passing

• Processes communicate via messages
• Messages can be:
  • Raw data used in actual calculations
  • Signals and acknowledgements for the receiving processes regarding the workflow.

2. History of MPI: early 80s

• Various message passing environments were developed.
• Many similar fundamental concepts:
  • Cosmic Cube and nCUBE/2 (Caltech),
  • P4 (Argonne),
  • PICL and PVM (Oakridge),
  • LAM (Ohio SC)

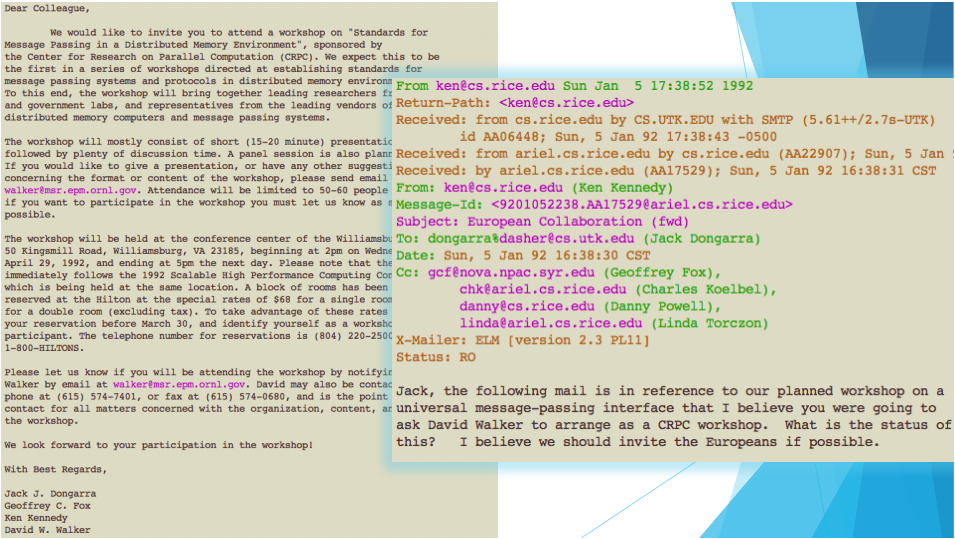

3. History of MPI: 1991-1992

• More than 80 researchers from different institutions in US and Europe agreed to develop and implement a common standard for message passing.
• Follow-up first meeting of the working group hosted at Supercomputing 1992 in Minnesota.

4. After finalization of working technical draft

• MPI becomes the de-facto standard for distributed memory parallel programming.
• Available on every popular operating system and architecture.
• Interconnect manufacturers commonly provide MPI implementations optimized for their hardware.
• MPI standard defines interfaces for C, C++, and Fortran.
• Language bindings available for many popular languages (quality varies)
  • Python (mpi4py)
  • Java (no longer active)

5. 1994: MPI-1

• Communicators
  • Information about the runtime environments
  • Creation of customized topologies
• Point-to-point communication
  • Send and receive messages
  • Blocking and non-blocking variations
• Collectives
  • Broadcast and reduce
  • Gather and scatter

6. 1998: MPI-2

• One-sided communication (non-blocking)
  • Get & Put (remote memory access)
• Dynamic process management
  • Spawn
• Parallel I/O
  • Multiple readers and writers for a single file
  • Requires file-system level support (LustreFS, PVFS)

7. 2012: MPI-3

• Revised remote-memory access semantic
• Fault tolerance model
• Non-blocking collective communication
• Access to internal variables, states, and counters for performance evaluation purposes

8. Hands-on: taz and submitty

• Your account (login/password) will work on both taz and submitty.
• USERNAME represents the login name that you received in email.
• To access taz from a terminal:

$ ssh USERNAME@taz.cs.wcupa.edu

• To access submitty from a terminal:

$ ssh USERNAME@submitty.cs.wcupa.edu

• The environments on taz and submitty are similar to one another. In the remainder of these lectures, example screenshots will be taken from submitty, but all commands will work on taz as well.

9. Hands-on: create and compile MPI codes

• Create a directory named intro-mpi
• Change into intro-mpi

$ cd
$ mkdir intro-mpi
$ cd intro-mpi

• To create a file from terminal, run nano -c file_name.
• When finish editing, press Ctrl-X to select Quit and Save.
• Press Y to confirm that you want to save.
• Press Enter to confirm that you are saving to file_name.
• Inside intro-mpi, create a file named first.c with the following contents

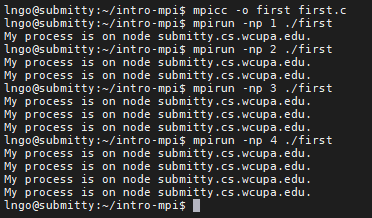

• Compile and run first.c:

$ mpicc -o first first.c
$ mpirun -np 1 ./first
$ mpirun -np 2 ./first
$ mpirun -np 4 ./first

• Both taz and submitty only have four computing cores, therefore we can (should) only run to a maximum of four processes.

10. MPI in a nutshell

• All processes are launched at the beginning of the program execution.
  • The number of processes are user-specified
  • This number could be modified during runtime (MPI-2 standards)
  • Typically, this number is matched to the total number of cores available across the entire cluster
• All processes have their own memory space and have access to the same source codes.
• MPI_Init: indicates that all processes are now working in message-passing mode.
• MPI_Finalize: indicates that all processes are now working in sequential mode (only one process active) and there are no more message-passing activities.

11. MPI in a nutshell

• MPI_COMM_WORLD: Global communicator
• MPI_Comm_rank: return the rank of the calling process
• MPI_Comm_size: return the total number of processes that are part of the specified communicator.
• MPI_Get_processor_name: return the name of the processor (core) running the process.

12. MPI communicators (first defined in MPI-1)

MPI defines communicator groups for point-to-point and collective communications:

• Unique IDs (rank) are defined for individual processes within a communicator group.
• Communications are performed based on these IDs.
• Default global communication (MPI_COMM_WORLD) contains all processes.
• For N processes, ranks go from 0 to N−1.

13. Hands-on: hello.c

• Inside intro-mpi, create a file named hello.c with the following contents

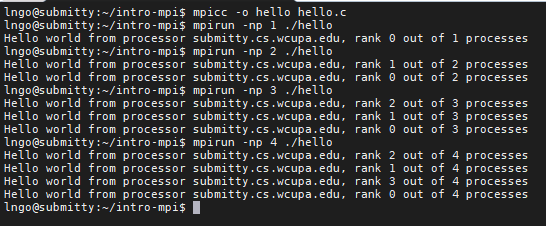

• Compile and run hello.c:

$ mpicc -o hello hello.c
$ mpirun -np 1 ./hello
$ mpirun -np 2 ./hello
$ mpirun -np 4 ./hello

14. Hands-on: evenodd.c

• In MPI, processes’ ranks are used to enforce execution/exclusion of code segments within the original source code.
• Inside intro-mpi, create a file named evenodd.c with the following contents

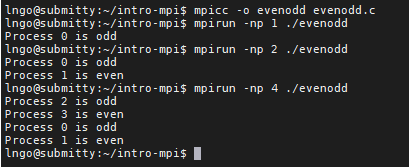

• Compile and run evenodd.c:

$ mpicc -o evenodd evenodd.c
$ mpirun -np 1 ./evenodd
$ mpirun -np 2 ./evenodd
$ mpirun -np 4 ./evenodd

15. Hands-on: rank_size.c

• In MPI, the values of ranks and size can be used as means to calculate and distribute workload (data) among the processes.
• Inside intro-mpi, create a file named rank_size.c with the following contents

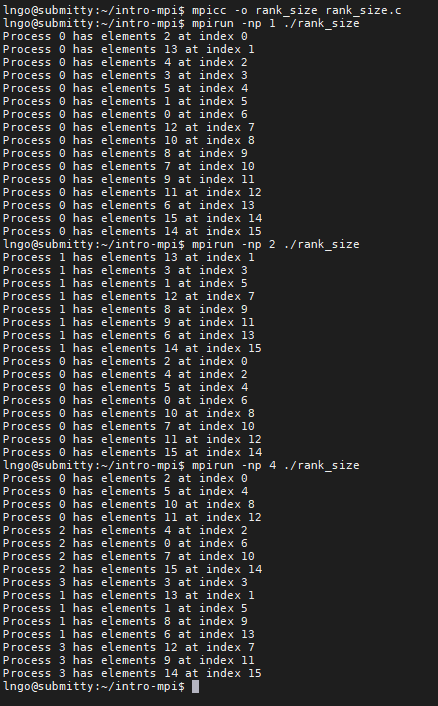

• Compile and run rank_size.c:

$ mpicc -o rank_size rank_size.c
$ mpirun -np 1 ./rank_size
$ mpirun -np 2 ./rank_size
$ mpirun -np 4 ./rank_size

Key Points
