C programming debugging and optimization

Overview

Teaching: 0 min
Exercises: 0 min

Questions

• How can programs run faster?

Objectives

• First learning objective. (FIXME)

1. Defects and Infections

• A systematic approach to debugging.
  • The programmer creates a defect
  • The defect causes an infection
  • The infection propagates
  • The infection causes a failure
• Not every defect causes a failure!
• Testing can only show the presence of errors - not their absence.
  • In other words, if you pass every tests, it means that your program has yet to fail. It does not mean that your program is correct.

2. Explicit debugging

• Stating the problem
  • Describe the problem aloud or in writing
  • A.k.a. Rubber duck or teddy bear method
• Often a comprehensive problem description is sufficient to solve the failure

3. Scientific debugging

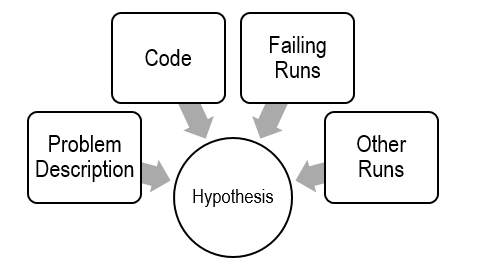

• Before debugging, you need to construct a hypothesis as to the defect.
  • Propose a possible defect and why it explains the failure conditions
• Ockham’s Razor: given several hypotheses, pick the simplest/closest to current work

• Make predictions based on your hypothesis
  • What do you expect to happen under new conditions
  • What data could confirm or refute your hypothesis
• How can I collect that data?
  • What experiments?
  • What collection mechanism?
• Does the data refute the hypothesis?
  • Refine the hypothesis based on the new inputs

4. Hands on: bad Fibonacci

• Specification defined the first Fibonacci number as 1.
• Compile and run the following bad_fib.c program:
• fib(1) returns an incorrect result. Why?

$ gcc -o bad_fib bad_fib.c
$ ./bad_fib

• Constructing a hypothesis:
  • while (n > 1): did we mess up the loop in fib?
  • int f: did we forget to initialize f?
• Propose a new condition or conditions
  • What will logically happen if your hypothesis is correct?
  • What data can be
  • fib(1) failed // Hypothesis
    • Loop check is incorrect: Change to n >= 1 and run again.
    • f is uninitialized: Change to int f = 1;
• Experiment
  • Only change one condition at a time.
  • fib(1) failed // Hypothesis
    • Change to n >= 1: ???
    • Change to int f = 1: Works. Sometimes a prediction can be a fix.

5. Hands on: brute force approach

• Strict compilation flags: -Wall, -Werror.
• Include optimization flags (capital letter o): -O3 or -O0.

$ gcc -Wall -Werror -O3 -o bad_fib bad_fib.c

• Use valgrind, memory analyzer.

$ sudo apt-get install -y valgrind
$ gcc -Wall -Werror -o bad_fib bad_fib.c
$ valgrind ./bad_fib

6. Observation

• What is the observed result?
  • Factual observation, such as Calling fib(1) will return 1.
  • The conclusion will interpret the observation(s)
• Don’t interfere.
  • Sometimes printf() can interfere
  • Like quantum physics, sometimes observations are part of the experiment
• Proceed systematically.
  • Update the conditions incrementally so each observation relates to a specific change
• Do NOT ever proceed past first bug.

7. Learn

• Common failures and insights
  • Why did the code fail?
  • What are my common defects?
• Assertions and invariants
  • Add checks for expected behavior
  • Extend checks to detect the fixed failure
• Testing
  • Every successful set of conditions is added to the test suite

8. Quick and dirty

• Not every problem needs scientific debugging
• Set a time limit: (for example)
  • 0 minutes – -Wall, valgrind
  • 1 – 10 minutes – Informal Debugging
  • 10 – 60 minutes – Scientific Debugging
  • 60 minutes – Take a break / Ask for help

8. Code optimization: Rear Admiral Grace Hopper

• Invented first compiler in 1951 (technically it was a linker)
• Coined compiler (and bug)
• Compiled for Harvard Mark I
• Eventually led to COBOL (which ran the world for years)
• “I decided data processors ought to be able to write their programs in English, and the computers would translate them into machine code”.

9. Code optimization: John Backus

• Led team at IBM invented the first commercially available compiler in 1957
• Compiled FORTRAN code for the IBM 704 computer
• FORTRAN still in use today for high performance code
• “Much of my work has come from being lazy. I didn’t like writing programs, and so, when I was working on the IBM 701, I started work on a programming system to make it easier to write programs”.

10. Code optimization: Fran Allen

• Pioneer of many optimizing compilation techniques
• Wrote a paper simply called Program Optimization in 1966
• “This paper introduced the use of graph-theoretic structures to encode program content in order to automatically and efficiently derive relationships and identify opportunities for optimization”.
• First woman to win the ACM Turing Award (the Nobel Prize of Computer Science).

11. Performance realities

• There’s more to performance than asymptotic complexity.
• Constant factors matter too!
  • Easily see 10:1 performance range depending on how code is written
  • Must optimize at multiple levels: algorithm, data representations, procedures, and loops
• Must understand system to optimize performance
  • How programs are compiled and executed
  • How modern processors + memory systems operate
  • How to measure program performance and identify bottlenecks
  • How to improve performance without destroying code modularity and generality.

12. Leveraging cache blocks

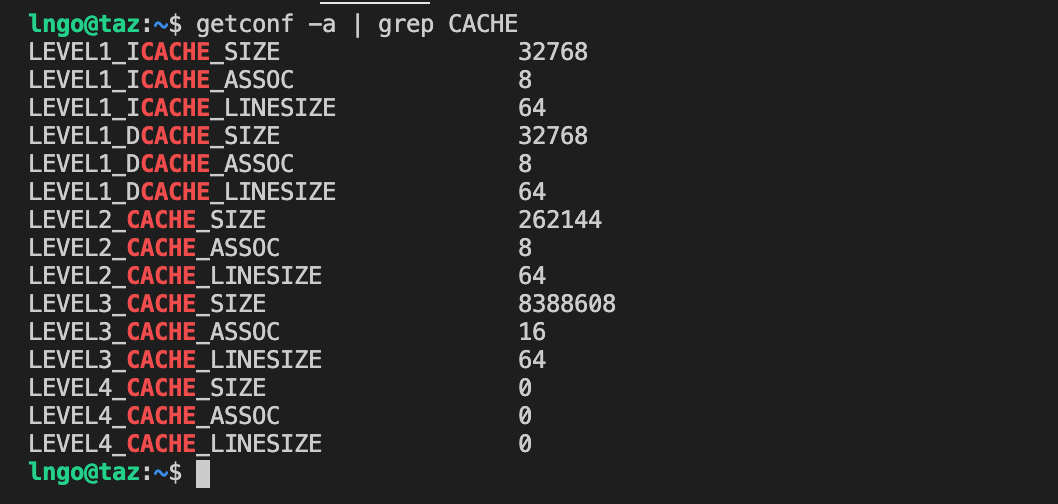

• Check the size of cache blocks

$ getconf -a | grep CACHE

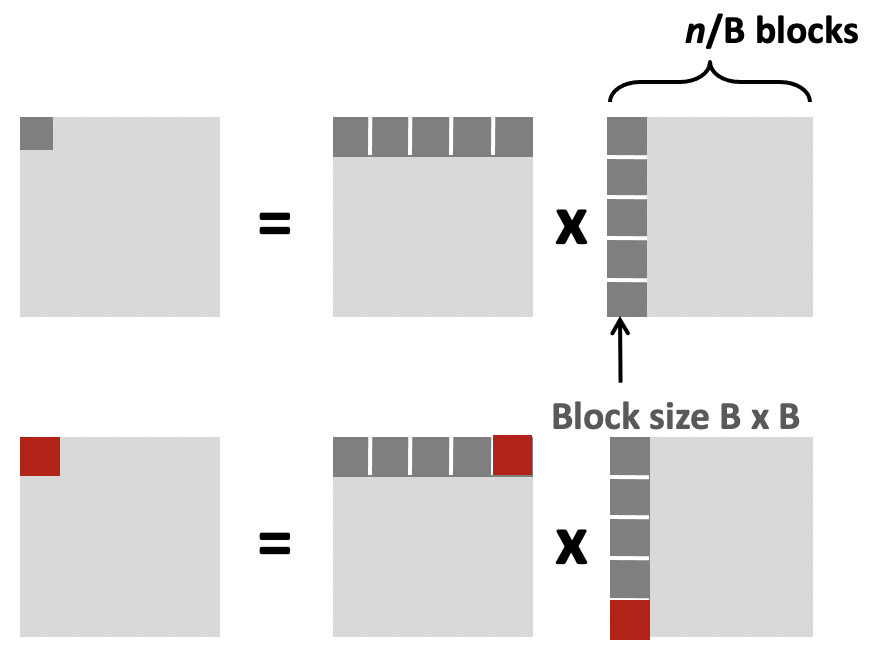

• We focus on cache blocks for optimization:
  • If calculations can be performed using smaller matrices of A, B, and C (blocks) that all fit in cache, we can further minimize the amount of cache misses per calculation.

• 3 blocks are needed (for A, B, and C).
• Each block has dimension B, so the total block size is B²
• Therefore: 3B² < cache_size
• Based on the information above: B = 8 (so that 8 * 8 = 64 fits in cache line).
• 3 * 8 * 8 < 32768.

13. Hands-on: matrix multiplications

• Check the size of cache blocks

$ getconf -a | grep CACHE

• Create the following two files: matrix_mult.c and block_matrix_mult.c inside a directory called 06-optimization.

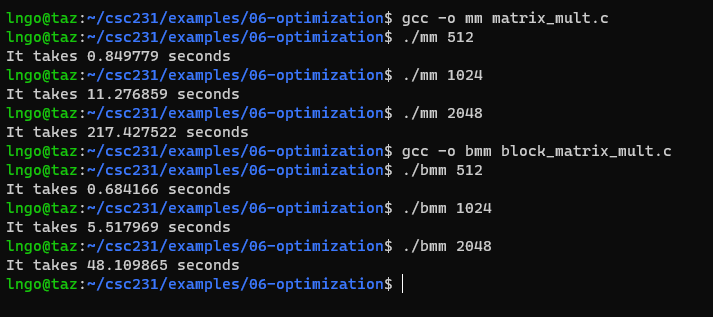

• Compile and run the two files:

$ gcc -o mm matrix_mult.c
$ ./mm 512
$ ./mm 1024
$ ./mm 2048
$ gcc -o bmm block_matrix_mult.c
$ ./bmm 512
$ ./bmm 1024
$ ./bmm 2048

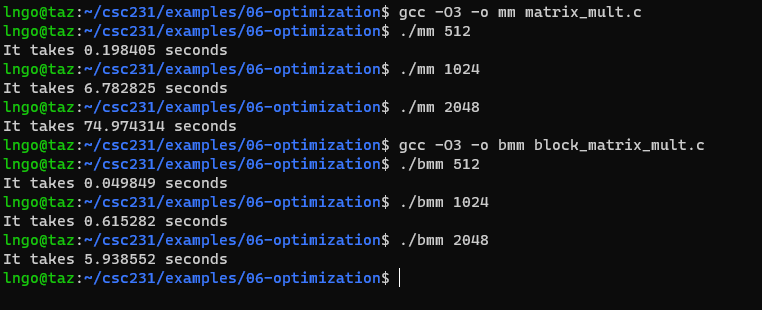

• Repeat the process with optimized compilation flag O3:

$ gcc -O3 -o mm matrix_mult.c
$ ./mm 512
$ ./mm 1024
$ ./mm 2048
$ gcc -O3 -o bmm block_matrix_mult.c
$ ./bmm 512
$ ./bmm 1024
$ ./bmm 2048

14. General optimization: you or your compiler should do it.

• Reduce code motion: reduce frequency with which computation performed
  • Need to produce same results
  • Move code out of loop.

• Reduction in strength: replace costly operation with simpler ones (multiply to addition).
  • Recognize sequence of products.

• Create the following file to automate the installations.

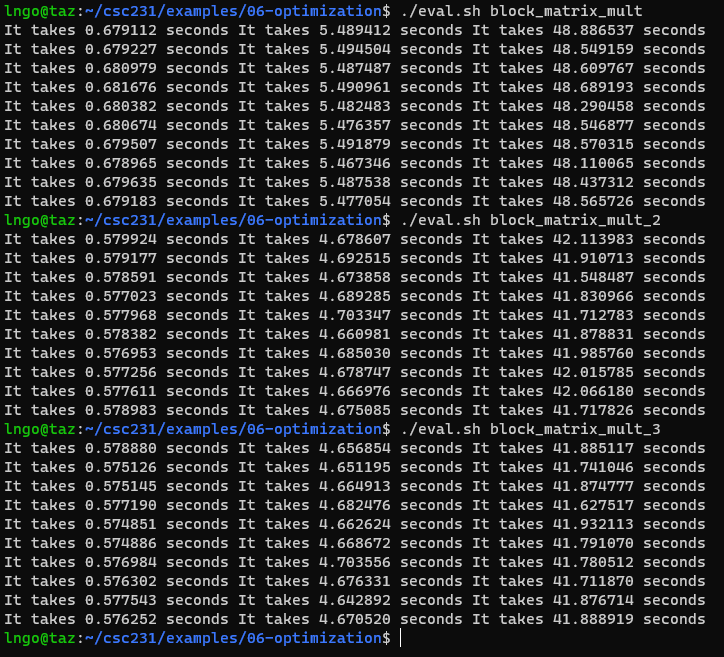

$ chmod 755 eval.sh
$ ./eval.sh block_matrix_mult
$ ./eval.sh block_matrix_mult_2
$ ./eval.sh block_matrix_mult_3

15. General optimization: when your compiler can’t.

• Operate under fundamental constraint
• Must not cause any change in program behavior
• Often prevents optimizations that affect only “edge case” behavior
• Behavior obvious to the programmer is not obvious to compiler
  • e.g., Data range may be more limited than types suggest (short vs. int)
• Most analysis is only within a procedure
  • Whole-program analysis is usually too expensive
  • Sometimes compiler does interprocedural analysis within a file (new GCC)
• Most analysis is based only on static information
  • Compiler has difficulty anticipating run-time inputs
• When in doubt, the compiler must be conservative

Key Points

• First key point. Brief Answer to questions. (FIXME)
