Machine language and debugging

Overview

Teaching: 0 min
Exercises: 0 min

Questions

• Getting closer to the hardware via machine languages

Objectives

• First learning objective. (FIXME)

1. Intel x86 processors

• Dominate laptop/desktop/server market
• Evolutionary design
  • Backwards compatible up until 8086, introduced in 1978
  • Added more features as time goes on
• x86 is a Complex Instruction Set Computer (CISC)
  • Many different instructions with many different formats
  • But, only small subset encountered with Linux programs
• Compare: Reduced Instruction Set Computer (RISC)
  • RISC: very few instructions, with very few modes for each
  • RISC can be quite fast (but Intel still wins on speed!)
  • Current RISC renaissance (e.g., ARM, RISC V), especially for low-power

2. Intel x86 processors: machine evolution

Name	Date	Transistor Counts
386	1985	0.3M
Pentium	1993	3.1M
Pentium/MMX	1997	4.5M
Pentium Pro	1995	6.5M
Pentium III	1999	8.2M
Pentium 4	2000	42M
Core 2 Duo	2006	291M
Core i7	2000	42M
Core i7 Skylake	2006	291M

• Added features
  • Instructions to support multimedia operations
  • Instructions to enable more efficient conditional operations (!)
  • Transition from 32 bits to 64 bits
  • More cores

3. x86 clones: Advanced Micro Devices (AMD)

• Historically
  • AMD has followed just behind Intel
  • A little bit slower, a lot cheaper
• Then
  • Recruited top circuit designers from Digital Equipment Corp. and other downward trending companies
  • Built Opteron: tough competitor to Pentium 4
  • Developed x86-64, their own extension to 64 bits
• Recent Years
  • Intel got its act together
    • 1995-2011: Lead semiconductor “fab” in world
    • 2018: #2 largest by $$ (#1 is Samsung)
    • 2019: reclaimed #1
• AMD fell behind
  • Relies on external semiconductor manufacturer GlobalFoundaries
  • ca. 2019 CPUs (e.g., Ryzen) are competitive again
  • 2020 Epyc

4. Machine programming: levels of abstraction

• Architecture: (also ISA: instruction set architecture) The parts of a processor design that one needs to understand for writing correct machine/assembly code
  • Examples: instruction set specification, registers
  • Machine Code: The byte-level programs that a processor executes
  • Assembly Code: A text representation of machine code
• Microarchitecture: Implementation of the architecture
  • Examples: cache sizes and core frequency
• Example ISAs:
  • Intel: x86, IA32, Itanium, x86-64
  • ARM: Used in almost all mobile phones
  • RISC V: New open-source ISA

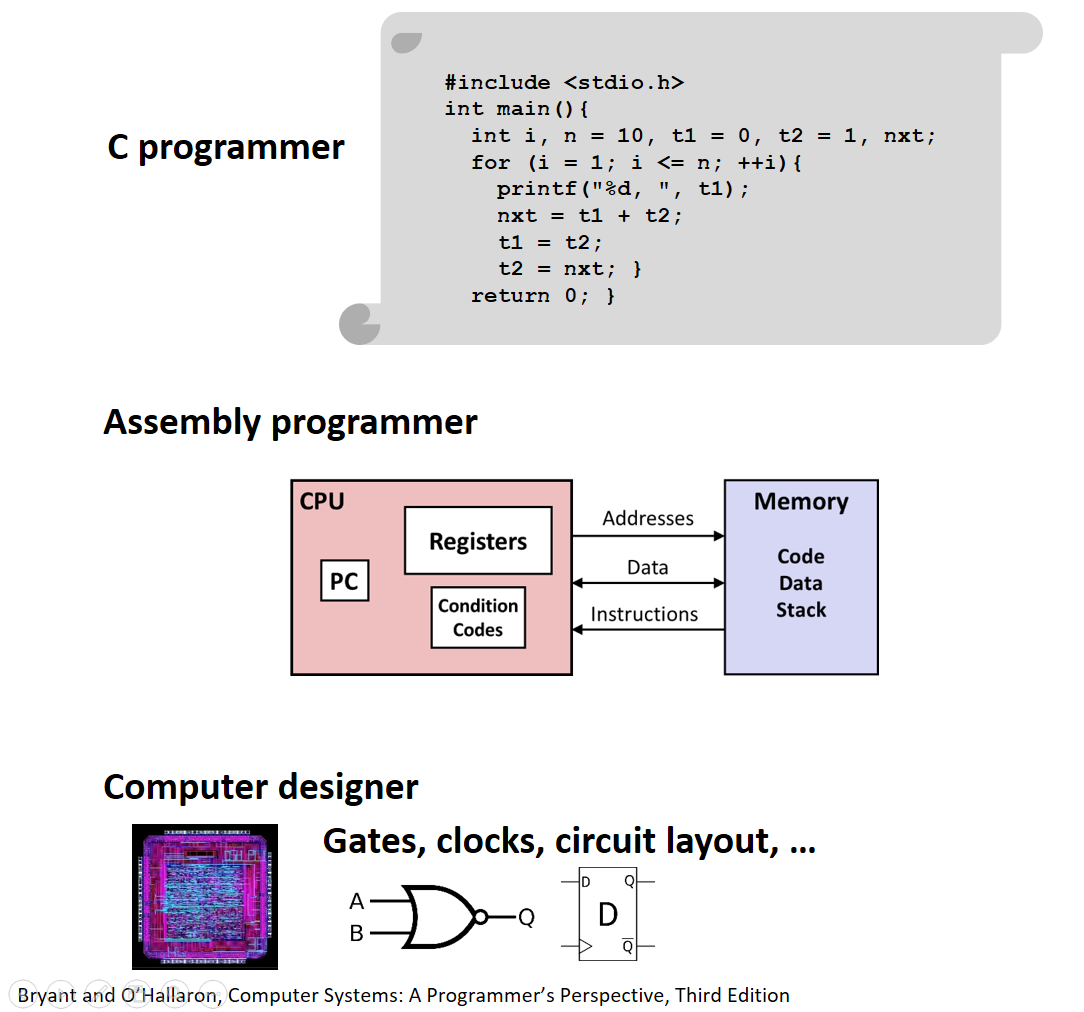

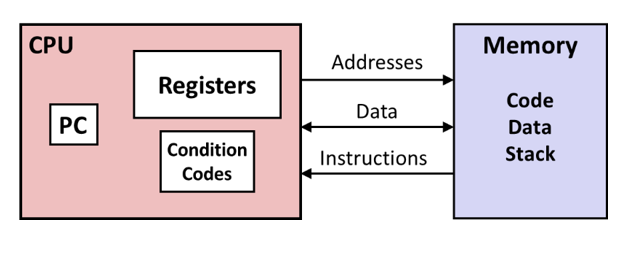

5. Assembly/Machine code view

• Machine code (Assembly code) differs greatly from the original C code.
• Parts of processor state that are not visible/accessible from C programs are now visible.
  • PC: Program counter
    • Contains address of next instruction
    • Called %rip (instruction pointer register)
  • Register file
    • contains 16 named locations (registers), each can store 64-bit values.
    • These registers can hold addresses (~ C pointers) or integer data.
  • Condition codes
    • Store status information about most recent arithmetic or logical operation
    • Used for conditional branching (if/while)
  • Vector registers to hold one or more integers or floating-point values.
  • Memory
    • Is seen as a byte-addressable array
    • Contains code and user data
    • Stack to support procedures

6. Hands on: assembly/machine code example

• Open a terminal (Windows Terminal or Mac Terminal).
• Reminder: It is podman on Windows and docker on Mac. Everything else is the same!.
• Launch the container:

Windows:

$ podman run --rm --userns keep-id --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -it -v /mnt/c/csc231:/home/$USER/csc231:Z localhost/csc-container /bin/bash

Mac:

$ docker run --rm --userns=host --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -it -v /Users/$USER/csc231:/home/$USER/csc231:Z csc-container /bin/bash

• Inside your csc231, create another directory called 04-machine and change into this directory.

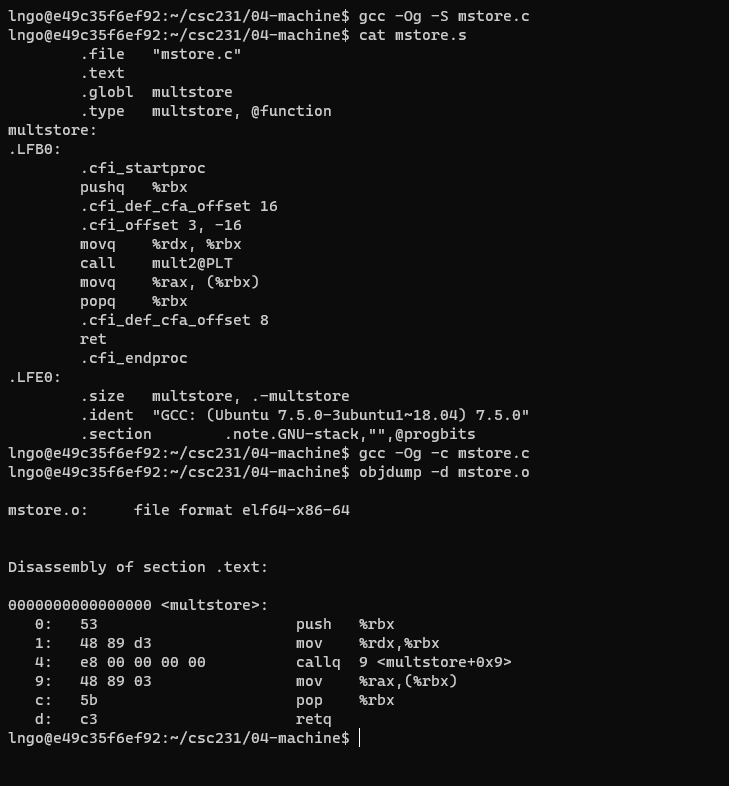

• Create a file named mstore.c with the following contents:

• Run the following commands It is capital o, not number 0

$ gcc -Og -S mstore.c
$ cat mstore.s
$ gcc -Og -c mstore.c
$ objdump -d mstore.o

• x86_64 instructions range in length from 1 to 15 bytes
• The disassembler determines the assembly code based purely on the byte-sequence in the machine-code file.
• All lines begin with . are directirves to the assembler and linker.

7. Data format

C data type	Intel data type	Assembly-code suffix	Size
char	Byte	b	1
short	Word	w	2
int	Double word	l	4
long	Quad word	q	8
char *	Quad word	q	8
float	Single precision	s	4
double	Double precision	l	8

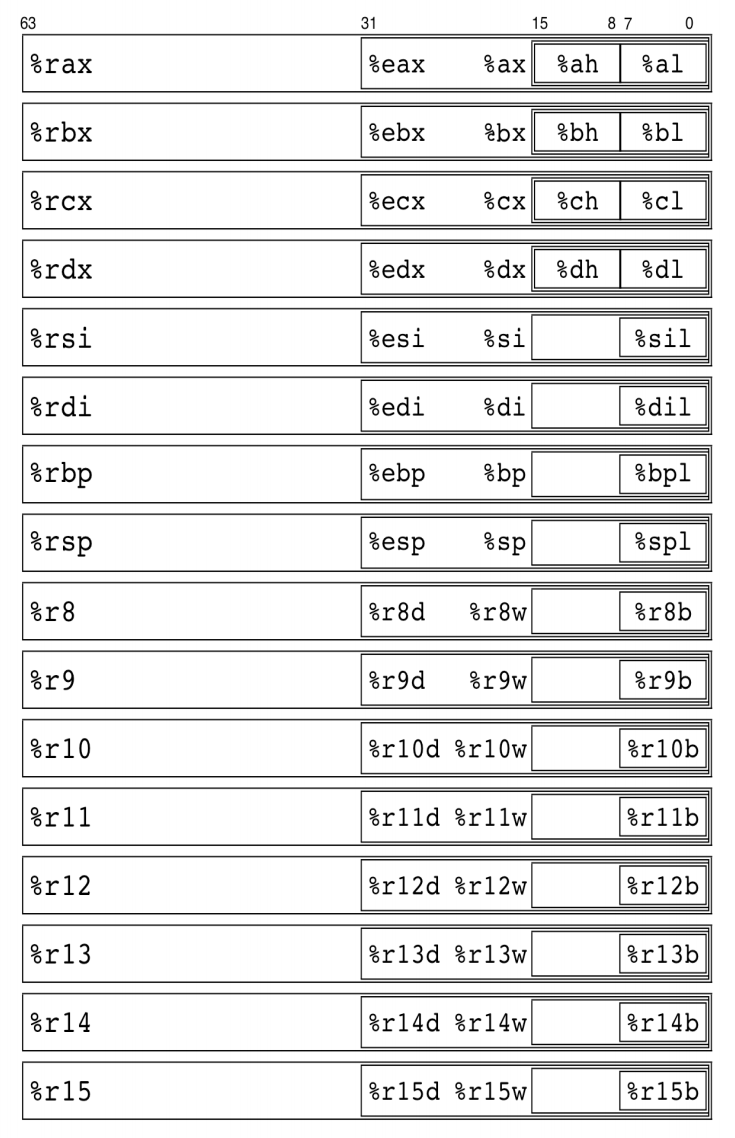

8. Integer registers

• x86_64 CPU contains a set of 16 general purpose registers storing 64-bit values.
• Original 8086 design has eight 16-bit registers, %ax through %sp.
  • Origin (mostly obsolete)
    • %ax: accumulate
    • %cx: counter
    • %dx: data
    • %bx: base
    • %si: source index
    • %di: destination index
    • %sp: stack pointer
    • %bp: base pointer
• After IA32 extension, these registers grew to 32 bits, labeled %eax through %esp.
• After x86_64 extension, these registers were expanded to 64 bits, labeled %rax through %rsp. Eight new registered were added: %r8 through %r15.
• Instructions can operate on data of different sizes stored in low-order bytes of the 16 registers.

Bryant and O’ Hallaron, Computer Systems: A Programmer’s Perspective, Third Edition

9. Assembly characteristics: operations

• Transfer data between memory and register
  • Load data from memory into register
  • Store register data into memory
• Perform arithmetic function on register or memory data
• Transfer control
  • Unconditional jumps to/from procedures
  • Conditional branches
  • Indirect branches

10. Data movement

• Example: movq Source, Dest
• Note: This is ATT notation. Intel uses mov Dest, Source
• Operand Types:
  • Immediate (Imm): Constant integer data.
    • $0x400, $-533.
    • Like C constant, but prefixed with $.
    • Encoded with 1, 2, or 4 bytes.
  • Register (Reg): One of 16 integer registers
    • Example: %rax, %r13
    • %rsp reserved for special use.
    • Others have special uses in particular instructions.
  • Memory (Mem): 8 (q in movq) consecutive bytes of memory at address given by register.
    • Example: (%rax)
    • Various other addressing mode (See textbook page 181, Figure 3.3).
• Other mov:
  • movb: move byte
  • movw: move word
  • movl: move double word
  • movq: move quad word
  • moveabsq: move absolute quad word

11. movq Operand Combinations

movq	Source	Dest	Src, Dest	C Analog
	Imm	Reg	movq $0x4, %rax	tmp = 0x4;
	Imm	Mem	movq $-147,(%rax)	*p = -147;
	Reg	Reg	movq %rax,%rdx	tmp2 = tmp1;
	Reg	Mem	movq %rax,(%rdx)	*p = tmp;
	Mem	Reg	movq (%rax),%rdx	tmp = *p;

12. Simple memory addressing mode

• Normal: (R) Mem[Reg[R]]
  • Register R specifies memory address
  • Aha! Pointer dereferencing in C
  • movq (%rcx),%rax
• Displacement D(R) Mem[Reg[R]+D]
  • Register R specifies start of memory region
  • Constant displacement D specifies offset
  • movq 8(%rbp),%rdx

13. x86_64 Cheatsheet

Brown University - Dr. Doeppner

14. Hands on: data movement

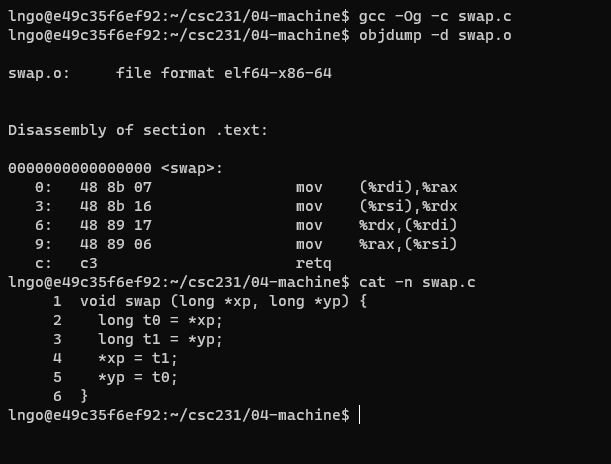

• Create a file named swap.c in 04-machine with the following contents:

• Run the following commands

$ gcc -Og -c swap.c
$ objdump -d swap.o

• Why %rsi and %rdi?
• Procedure Data Flow:
  • First six parameters will be placed into rdi, rsi, rdx, rcx, r8, r9.
  • The remaining parameters will be pushed on to the stack of the calling function.

15. Hands on: data movement

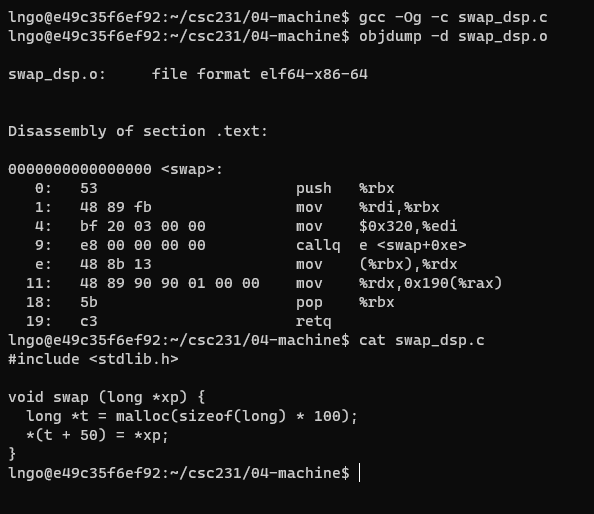

• Create a file named swap_dsp.c in 04-machine with the following contents:

• Run the following commands

$ gcc -Og -c swap_dsp.c
$ objdump -d swap_dsp.o

• What is the meaning of 0x190?

16. Complete memory addressing mode

• Most General Form
  • D(Rb,Ri,S): Mem[Reg[Rb]+S*Reg[Ri]+ D]
  • D: Constant displacement 1, 2, or 4 bytes
  • Rb: Base register: Any of 16 integer registers
  • Ri: Index register: Any, except for %rsp
  • S: Scale: 1, 2, 4, or 8
• Special Cases
  • (Rb,Ri): Mem[Reg[Rb]+Reg[Ri]]
  • D(Rb,Ri): Mem[Reg[Rb]+Reg[Ri]+D]
  • (Rb,Ri,S): Mem[Reg[Rb]+S*Reg[Ri]]
  • (,Ri,S): Mem[S*Reg[Ri]]
  • D(,Ri,S): Mem[S*Reg[Ri] + D]

17. Arithmetic and logical operations: lea

• lea: load effective address
• A form of movq intsruction
  • lea S, D: Write &S to D.
  • can be used to generate pointers
  • can also be used to describe common arithmetic operations.

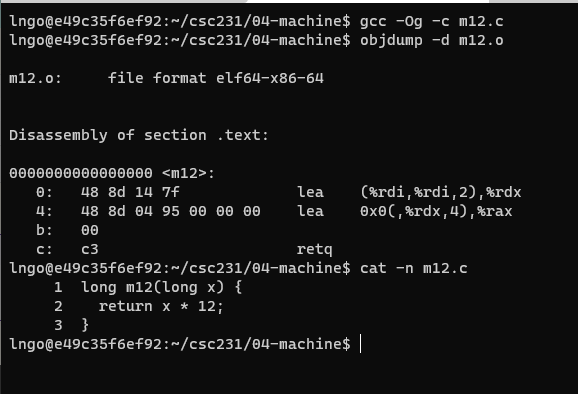

18. Hands on: lea

• Create a file named m12.c in 04-machine with the following contents:

• Run the following commands

$ gcc -Og -c m12.c
$ objdump -d m12.o

• Review slide 16
• %rdi: x
• (%rdi, %rdi,2) = x + 2 * x
• The above result is moved to %rdx with lea.
• 0x0(,%rdx,4) = 4 * (x + 2 * x) = 12*x
• The above result is moved to %rax with lea.

19. Other arithmetic operations

• Omitting suffixes comparing to the book.

Format	Computation	Description
add Src,Dest	D <- D + S	add
sub Src,Dest	D <- D - S	subtract
imul Src,Dest	D <- D * S	multiply
shl Src,Dest	D <- D « S	shift left
sar Src,Dest	D <- D » S	arith. shift right
shr Src,Dest	D <- D » S	shift right
sal Src,Dest	D <- D « S	arith. shift left
xor Src,Dest	D <- D ^ S	exclusive or
and Src,Dest	D <- D & S	and
or Src,Dest	D <- D | S	or
inc Src	D <- D + 1	increment
dec Src	D <- D - 1	decrement
neg Src	D <- -D	negate
not Src	D <- -D	complement

• Watch out for argument order (ATT versus Intel)
• No distinction between signed and unsigned int. Why is that?

20. Challenge: lea

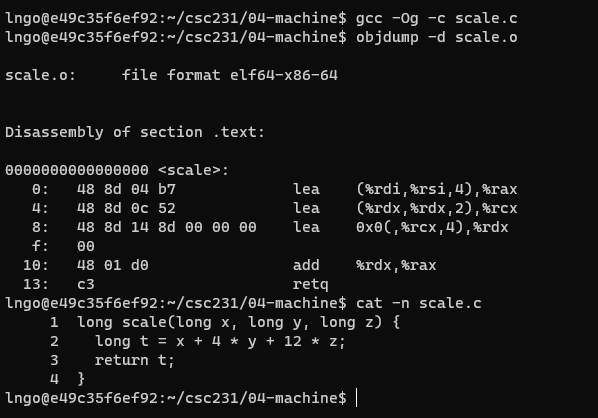

• Create a file named scale.c in 04-machine with the following contents:

• Run the following commands

$ gcc -Og -c scale.c
$ objdump -d scale.o

• Identify the registers holding x, y, and z.
• Which register contains the final return value?

Solution

• %rdi: x
• %rsi: y
• %rdx: z
• %rax contains the final return value.

Midterm

• Friday April 2, 2021
• 24-hour windows range: 12:00AM - 11:59PM April 2, 2021.
• 75 minutes duration.
• 20 questions (similar in format to the quizzes).
• Everything (including source codes) up to slide 20 of Machine language and debugging.
• No class on Friday April 2.

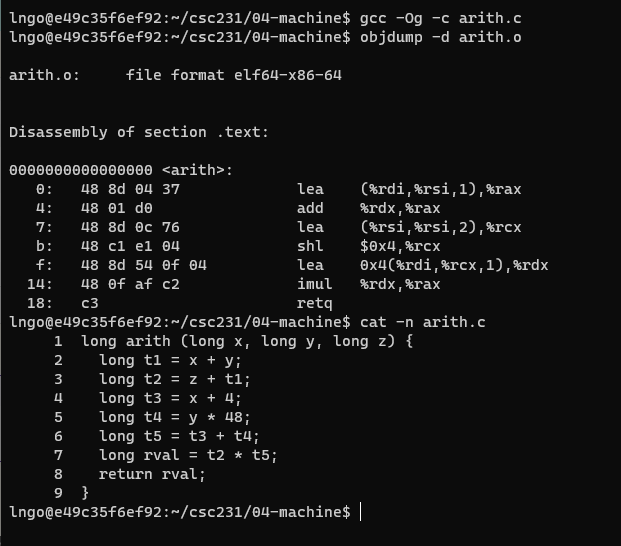

21. Hands on: long arithmetic

• Create a file named arith.c in 04-machine with the following contents:

• Run the following commands

$ gcc -Og -c arith.c
$ objdump -d arith.o

• Understand how the Assembly code represents the actual arithmetic operation in the C code.

22. Quick review: processor state

• Information about currently executing program
  • temporary data (%rax,…)
  • location of runtime stack (%rsp)
  • location of current code control point (%rip,…)
  • status of recent tests (CF, ZF, SF, OF in %EFLAGS)

23. Condition codes (implicit setting)

• Single-bit registers
  • CF: the most recent operation generated a carry out of the most significant bit.
  • ZF: the most recent operation yielded zero.
  • SF: the most recent operation yielded negative.
  • OF: the most recent operation caused a two’s-complement overflow.
• Implicitly set (as side effect) of arithmetic operations.

24. Condition codes (explicit setting)

• Exlicit setting by Compare instruction
  • cmpq Src2, Src1
  • cmpq b, a like computing a - b without setting destination
• CF set if carry/borrow out from most significant bit (unsigned comparisons)
• ZF set if a == b
• SF set if (a - b) < 0
• OF set if two’s complement (signed) overflow
  • (a>0 && b<0 && (a-b)<0) || (a<0 && b>0 && (a-b)>0)

25. Condition branches (jX)

• Jump to different part of code depending on condition codes
• Implicit reading of condition codes

jX	Condition	Description
jmp	1	direct jump
je	ZF	equal/zero
jne	~ZF	not equal/not zero
js	SF	negative
jns	~SF	non-negative
jg	~(SF^OF) & ~ZF	greater
jge	~(SF^OF)	greater or equal to
jl	SF^OF	lesser
jle	SF^OF | ZF	lesser or equal to
ja	~CF & ~ZF	above
jb	CF	below

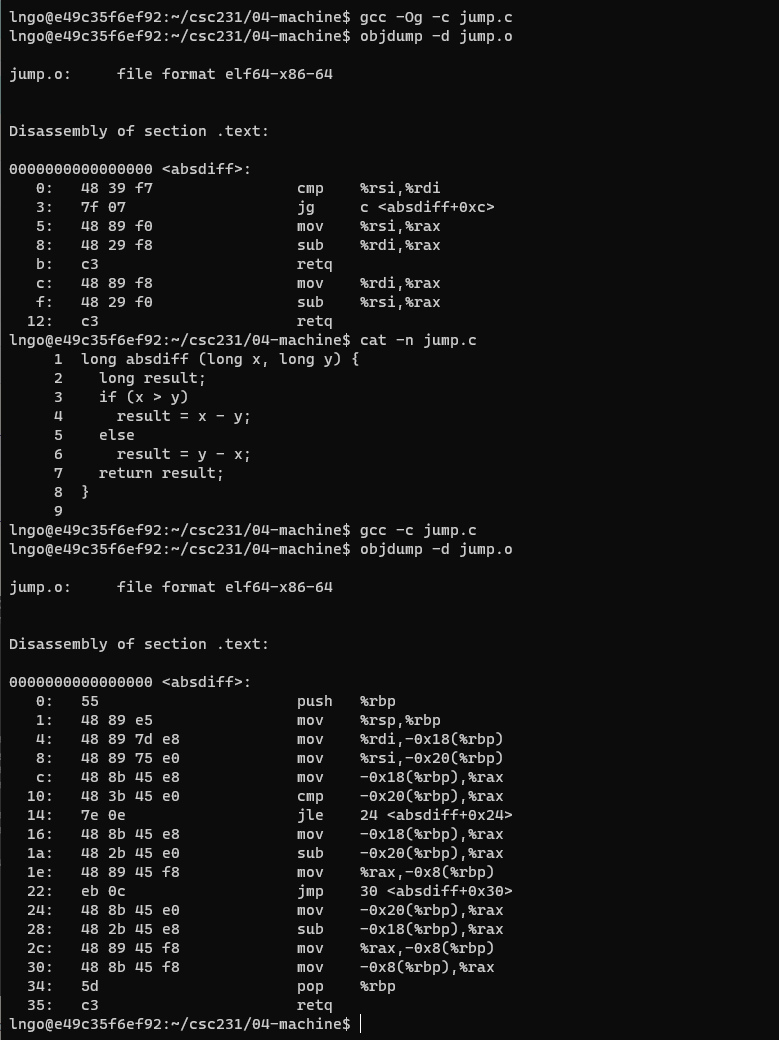

26. Hands on: a simple jump

• Create a file named jump.c in 04-machine with the following contents:

• Run the following commands

$ gcc -Og -c jump.c
$ objdump -d jump.o

• Understand how the Assembly code enables jump across instructions to support conditional workflow.

• Rerun the above commands but ommit -Og flag. Think about the differences in the resulting Assembly code.

27. Hands on: loop

• Create a file named fact_loop.c in 04-machine with the following contents:

• Run the following commands

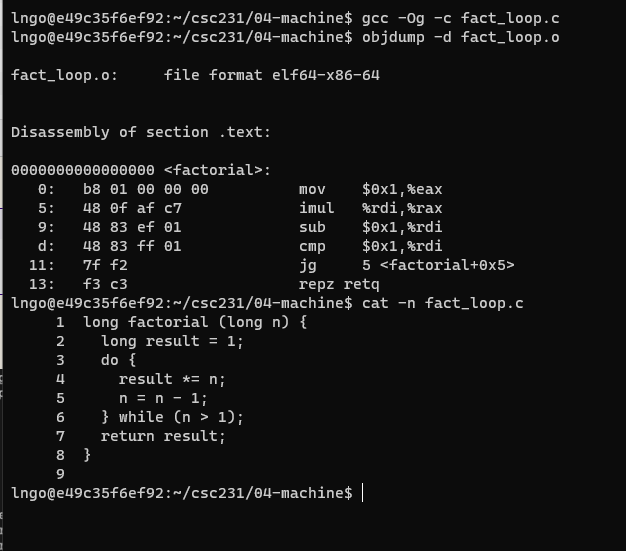

$ gcc -Og -c fact_loop.c
$ objdump -d fact_loop.o

• Understand how the Assembly code enables jump across instructions to support loop.

• Create fact_loop_2.c and fact_loop_3.c from fact_loop.c.
• Modify fact_loop_2.c so that the factorial is implemented with a while loop. Study the resulting Assembly code.
• Modify fact_loop_3.c so that the factorial is implemented with a for loop. Study the resulting Assembly code.

28. Hands on: switch

• Create a file named switch.c in 04-machine with the following contents:

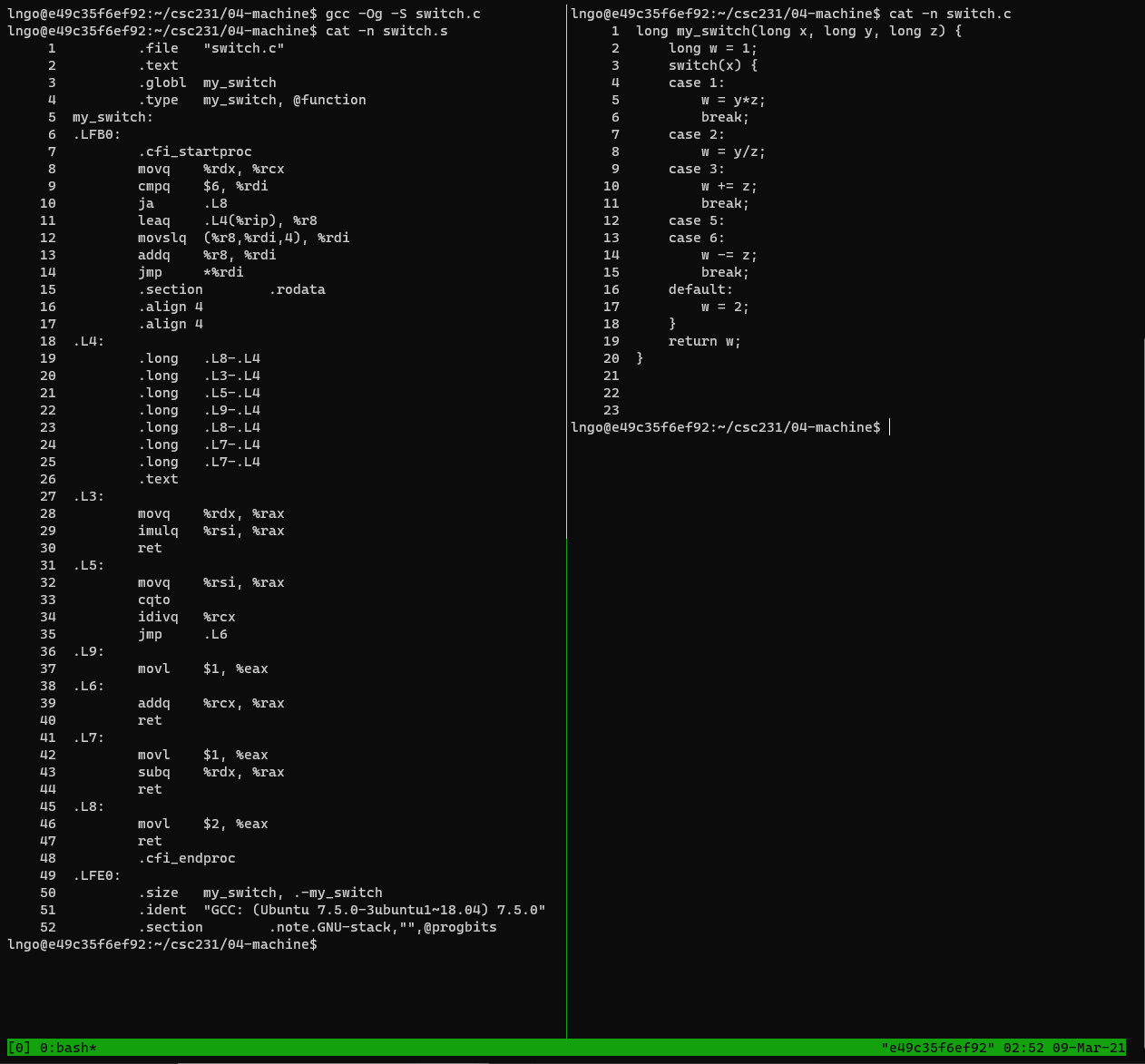

• View switch.c and the resulting switch.s in a two-column tmux terminal.

$ gcc -Og -S switch.c

29. Mechanisms in procedures

• Function = procedure (book terminology)
• Support procedure P calls procedure Q.
• Passing control
  • To beginning of procedure code
    • starting instruction of Q
  • Back to return point
    • next instruction in P after Q
• Passing data
  • Procedure arguments
    • P passes one or more parameters to Q.
    • Q returns a value back to P.
  • Return value
• Memory management
  • Allocate during procedure execution and de-allocate upon return
    • Q needs to allocate space for local variables and free that storage once finishes.
• Mechanisms all implemented with machine instructions
• x86-64 implementation of a procedure uses only those mechanisms required
• Machine instructions implement the mechanisms, but the choices are determined by designers. These choices make up the Application Binary Interface (ABI).

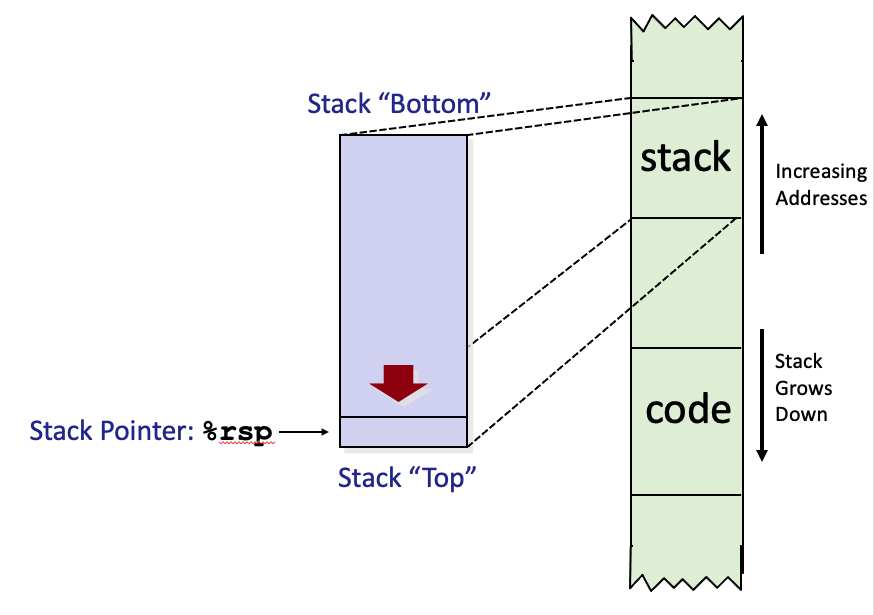

30. x86-64 stack

• Region of memory managed with stack discipline
  • Memory viewed as array of bytes.
  • Different regions have different purposes.
  • (Like ABI, a policy decision)
• Grows toward lower addresses
  • Register %rsp contains lowest stack address.
  • address of “top” element

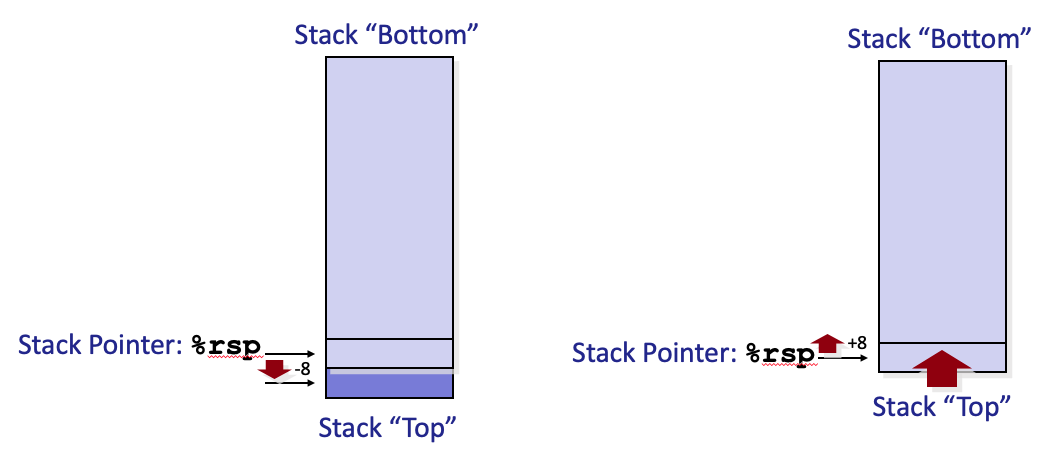

31. Stack push and pop

• pushq Src
  • Fetch operand at Src
  • Decrement %rsp by 8
  • Write operand at address given by %rsp
• popq Dest
  • Read value at address given by %rsp
  • Increment %rsp by 8
  • Store value at Dest (usually a register)

32. Hands on: function calls

• Create a file named mult.c in 04-machine with the following contents:

• Compile with -g and -Og flags and run gdb on the resulting executable.

$ gcc -g -Og -o mult mult.c
$ gdb mult

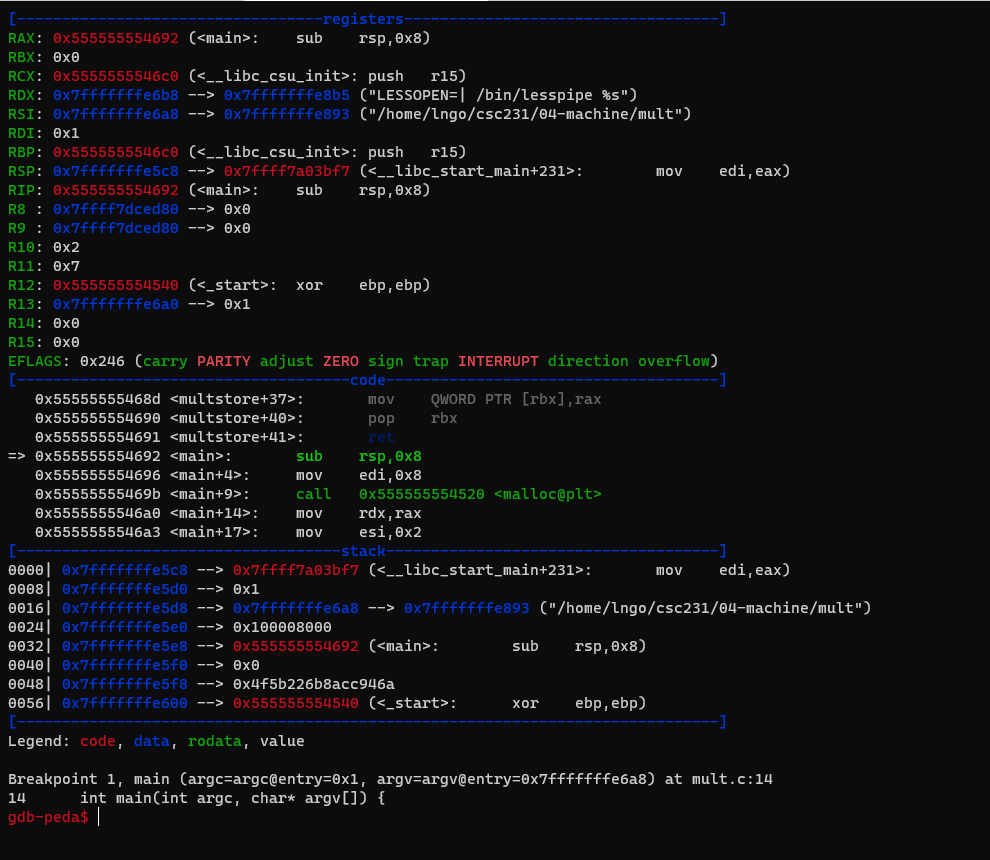

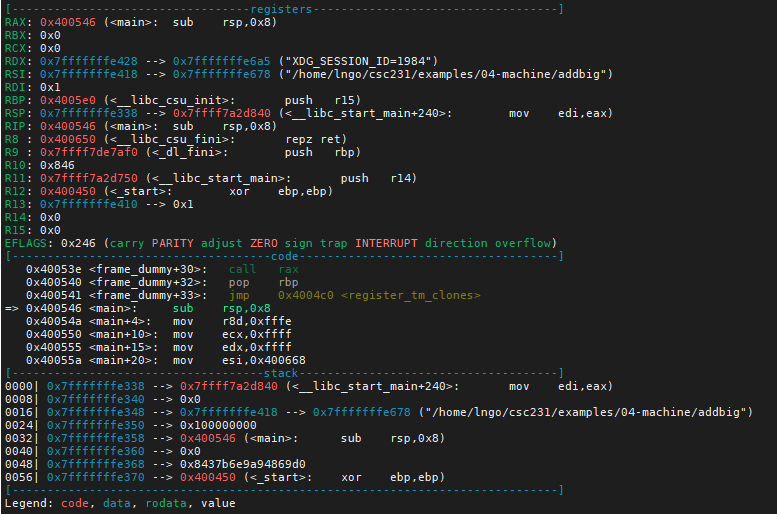

• Setup gdb with a breakpoint at main and start running.
• A new GDB command is s or step: executing the next instruction (machine or code instruction).
  • It will execute the highlighted (greened and arrowed) instruction in the code section.
• Be careful, Intel notation in the code segment of GDB
• Run s once to execute sub rsp,0x8

• Use n to execute the instruction: mov edi,0x8 and step over the next instruction, call 0x0400410 <malloc@plt>, which is a function call that we don’t want to step into this call.
• These are the instructions for the malloc call.

mov edi,0x8
call 0x0400410 <malloc@plt>

• Pay attention to the next three instructions after call 0x0400410 <malloc@plt.
  • Recall that the return value of malloc is placed into %rax.
• These instructions setup the parameters for the upcoming multstore(1,2,p) call.
  • mov rdx,rax.
  • mov esi,0x2
  • mov edi,0x1
• Also, check the values of rax and p

gdb-peda$ p $rax
gdb-peda$ p p

• This is the value of the memory block allocated via malloc to contain one long element.
• Run s to step into multstore(1,2,p)

• Inside mulstore, we immediately prepare to launch mult2.
• Run s once. This will store the value in rdx into rbx. This is to save the value in rdx because we need to use it later. parameters for the mult2 call.
• Procedure Data Flow:
  • First six parameters will be placed into rdi, rsi, rdx, rcx, r8, r9.
  • The remaining parameters will be pushed on to the stack of the calling function ( in this case mulstore).
  • Note that rsp (stack pointer of multstore) is currently at 0x7ffffffe320.
• Run s to step into mult2.

• The 7^th parameter of mult2 is pushed on to the stack frame of multstore and is stored at address 0x7ffffffe318.
• Function/procedure mult2 has no local variable, hence the stack frame is almost empty. The stack pointer, rsp, of mult2, is actually pointing toward the address of the 7^th parameter.
• Run s.
• The subsequence instructions (<mult2> through <mult2+23>) are for the multiplication.
• The final value will be stored in rax to be returned to multstore.

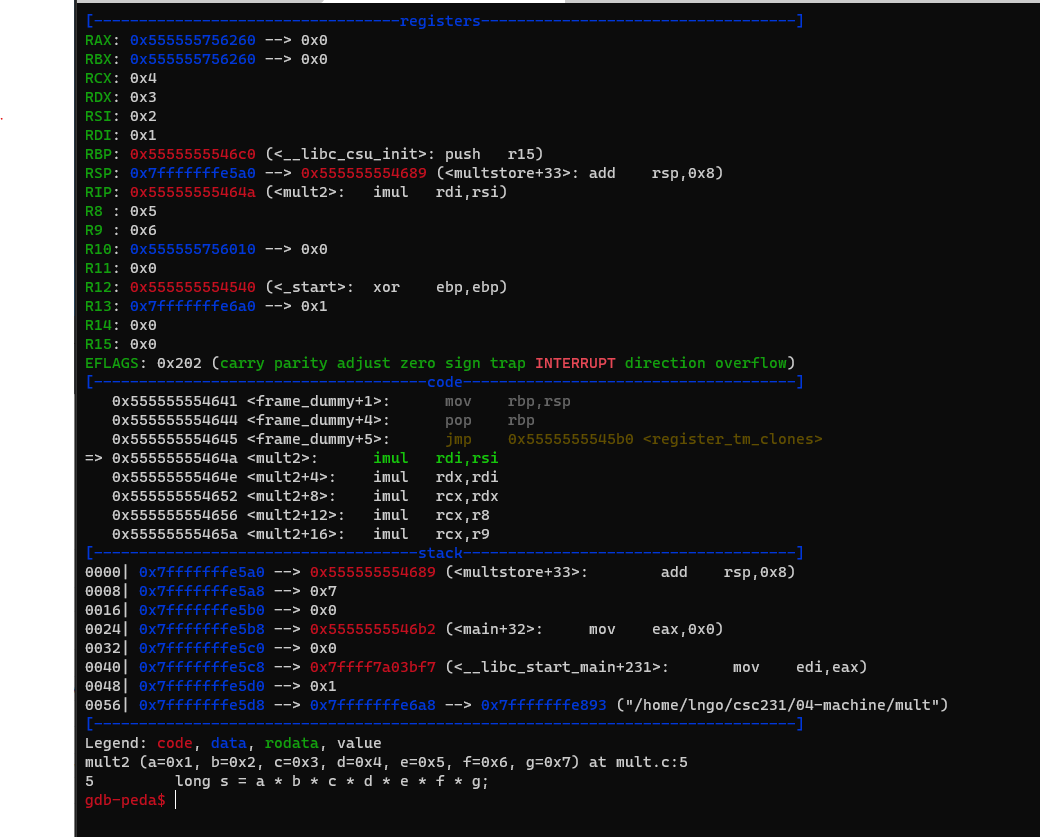

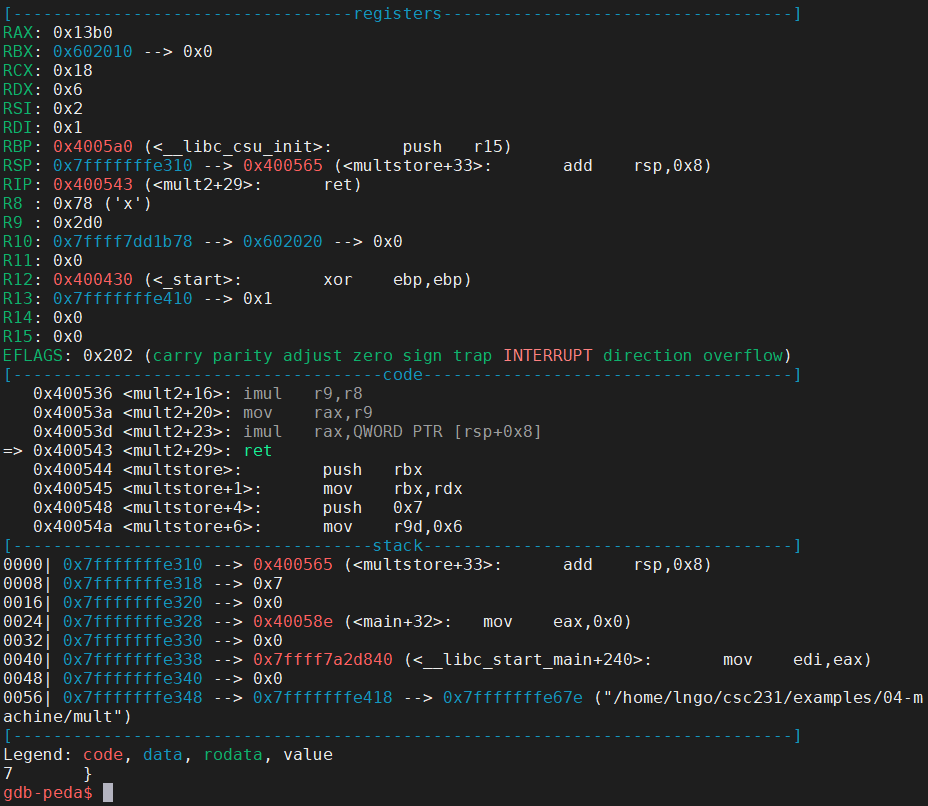

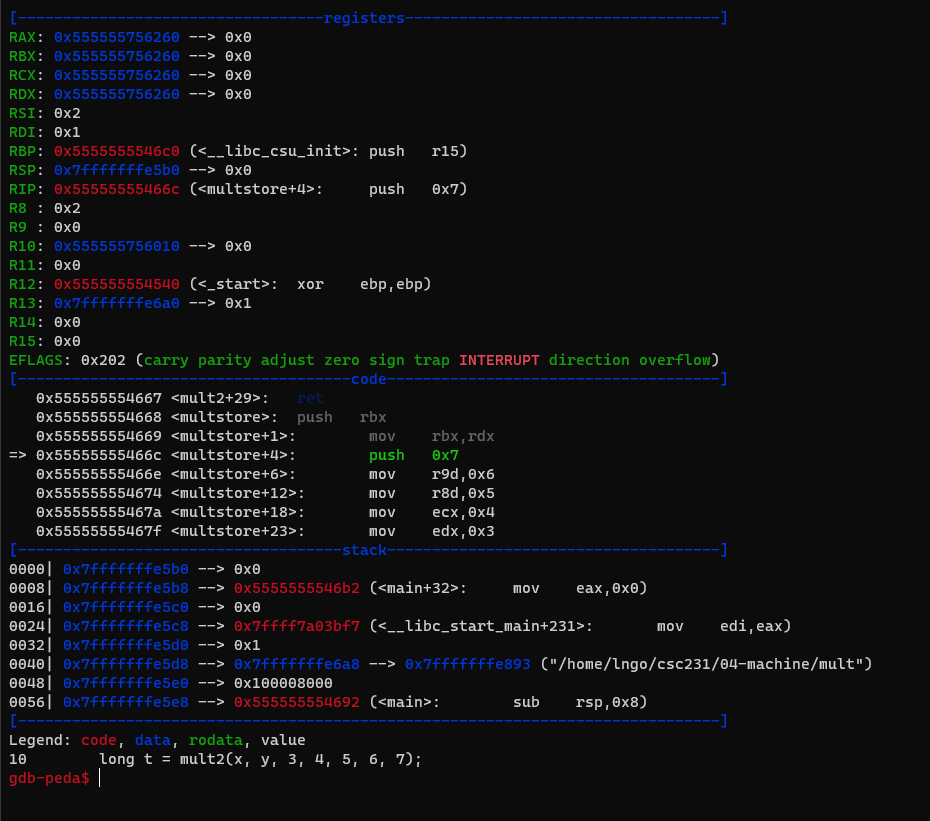

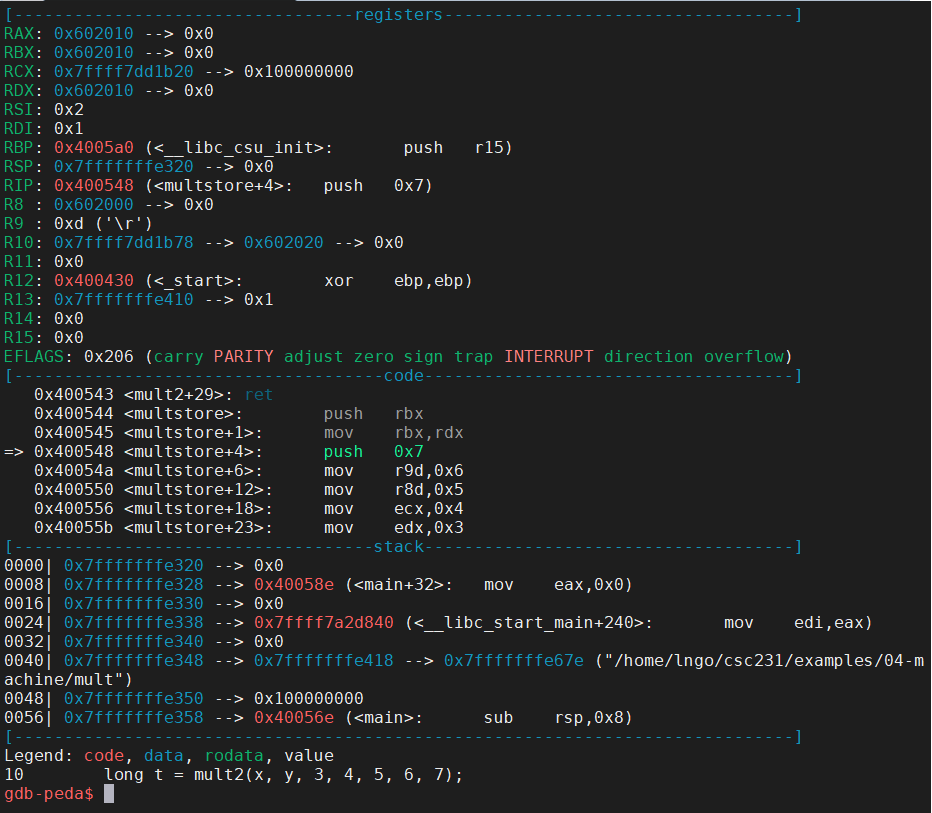

• Examine the two screenshots below to see how specific registers contain certain values?
  • rcx?
  • r8?
  • r9?
  • What is value of rax after <mult2+20>?
  • What is value of rax after <mult2+23>?

• Continue running s to finish the program.

33. Hands on: array and multi-dimensional arrays

• Given array of data type T and length L: T A[L]
  • Contiguous allocated region of L * sizeof(T) bytes in memory.
  • Identifier A can be used as a pointer to array element 0.
• Create a file named array.c in 04-machine with the following contents:

• Run cat -n array.c and remember the line number of the printf statement.
• Compile with -g flag and run gdb on the resulting executable.

$ cat -n array.c
$ gcc -g -o array array.c
$ gdb array

• Setup gdb with a breakpoint at the line number for the printf statement and start running.
• Run i locals to view all local variables.

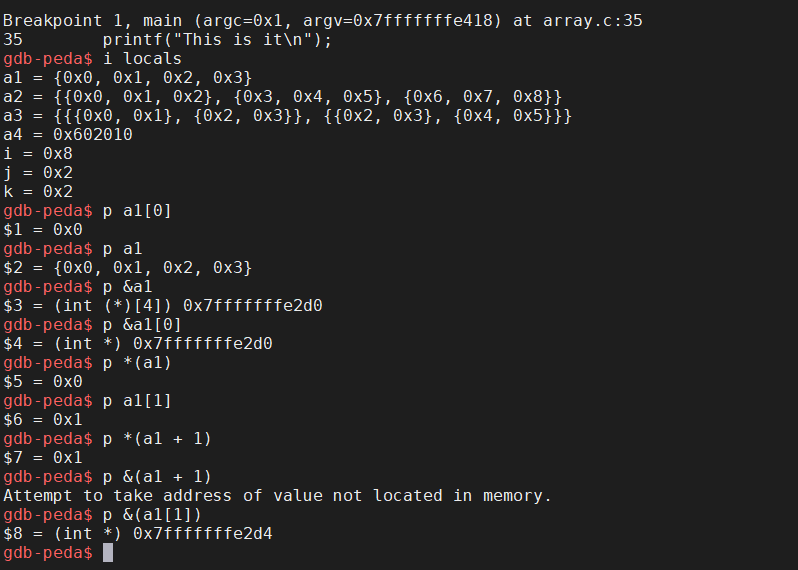

• Use p and variety of pointer/array syntax to view their values and addresses: *, [], &.

34. Hands on: struct

• Create a new data type (non-primitive) that groups objects of possibly different types into a single object.
  • Think classes in object-oriented programming minus the methods.
• Create a file named struct.c in 04-machine with the following contents:

• Compile with -g flag and run gdb on the resulting executable.

$ gcc -g -o struct struct.c
$ gdb struct

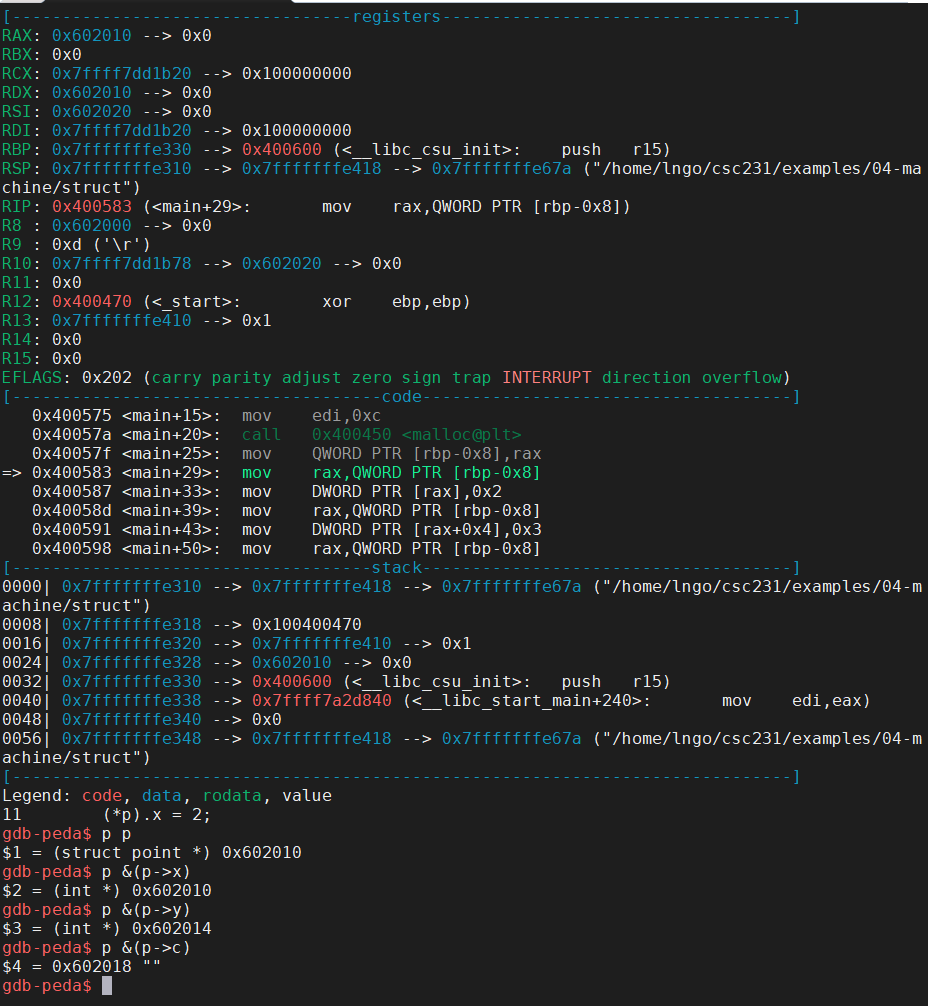

• Setup gdb with a breakpoint at main` and start running.
• Use n to walk through the program and answer the following questions:
  • How many bytes are there in the memory block allocated for variable p?
  • How are the addresses of x, y, and c relative to p?

35. Data alignment

• Intel recommends data to be aligned to improve memory system performance.
  • K-alignment rule: Any primitive object of K bytes must have an address that is multiple of K: 1 for char, 2 for short, 4 for int and float, and 8 for long, double, and char *.
• Create a file named alignment.c in 04-machine with the following contents:

• Run cat -n alignment.c and remember the line number of the return statement.
• Compile with -g flag and run gdb on the resulting executable.

$ cat -n array.c
$ gcc -g -o array array.c
$ gdb array

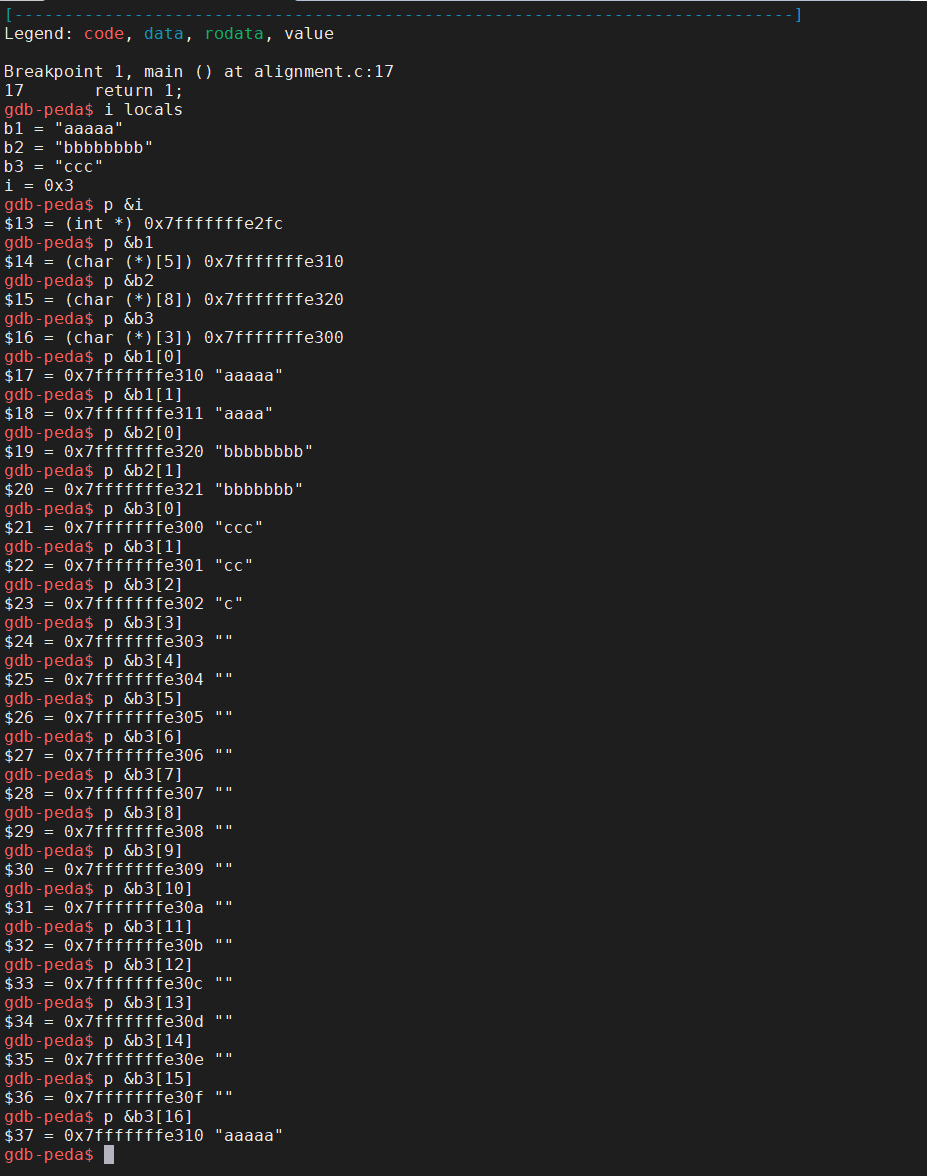

gdb-peda$ b 17
gdb-peda$ run

• Run i locals to view all local variables.
• Use p and & to view addresses of the three char array variables and the i variable.
• Why does address displacement is not an exact match between the i variable and the next array variable versus between the array variables?

Key Points

• First key point. Brief Answer to questions. (FIXME)
