Representing and manipulating information

Overview

Teaching: 0 min
Exercises: 0 min

Questions

How do modern computers store and represent information?

Objectives

Understand different basic bit representation, including two’s complement and floating point representation.

Understand how bit representations are implemented programmatically in C.

Read chapter 2 of textbook.

1. Everything is bits

Each bit is 0 or 1

By encoding/interpreting sets of bits in various ways

Computers determine what to do (instructions)

… and represent and manipulate numbers, sets, strings, etc…

Why bits? Electronic Implementation

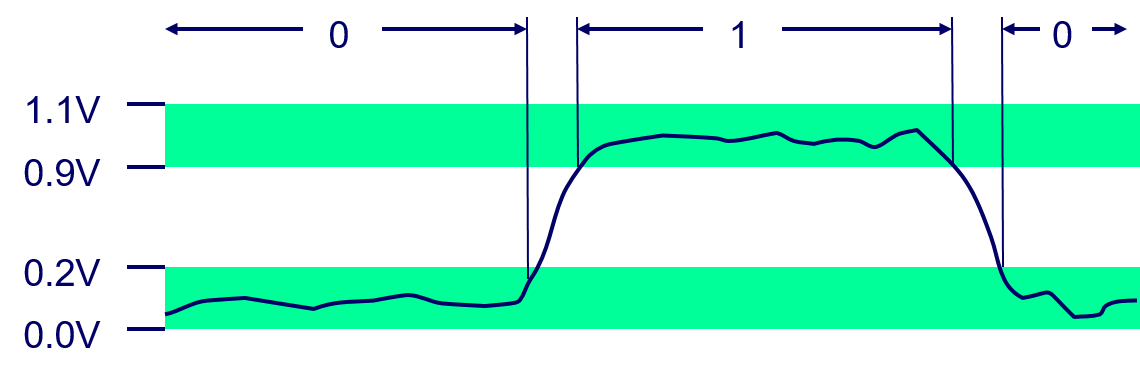

Easy to store with bistable elements.

Reliably transmitted on noisy and inaccurate wires.

2. Encoding byte values

Byte = 8 bits

Binary: 0000 0000 to 1111 1111.

Decimal: 0 to 255.

Hexadecimal: 00 to FF.

Base 16 number representation

Use character 0 to 9 and A to F.

Example: 15213 (decimal) = 0011 1011 0110 1101 (binary) = 3B6D (hex)

Hex 0 1 2 3 4 5 6 7 8 9 A B C D E F

Decimal 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Binary 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111


Hex	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
Decimal	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
Binary	0000	0001	0010	0011	0100	0101	0110	0111	1000	1001	1010	1011	1100	1101	1110	1111

3. Example data representations

C data type typical 32-bit typical 64-bit x86_64

char 1 1 1

short 2 2 2

int 4 4 4

long 4 8 8

float 4 4 4

double 8 8 8

pointer 4 8 8

C data type	typical 32-bit	typical 64-bit	x86_64
char	1	1	1
short	2	2	2
int	4	4	4
long	4	8	8
float	4	4	4
double	8	8	8
pointer	4	8	8

4. Boolean algebra

Developed by George Boole in 19th century

Algebraic representation of logic: encode True as 1 and False as 0.

Operations: AND (&), OR (|), XOR (^), NOT (~).

A B A&B A|B A^B ~A

0 0 0 0 0 1

0 1 0 1 1 1

1 0 0 1 1 0

1 1 1 1 0 0

A	B	A&B	A\|B	A^B	~A
0	0	0	0	0	1
0	1	0	1	1	1
1	0	0	1	1	0
1	1	1	1	0	0

5. General Boolean algebra

Operate on bit vectors

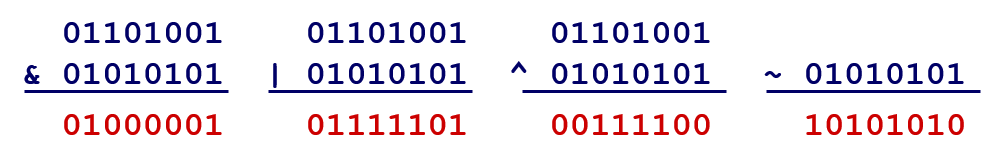

Operation applied bitwise.

All properties of boolean algebra apply.

6. Bit-level operations in C

Boolean operations: &, |, ^, ~.

Shift operations:

Left Shift: x « y

Shift bit-vector x left y positions

Throw away extra bits on left

Fill with 0’s on right

Right Shift: x » y

Shift bit-vector x right y positions

Throw away extra bits on right

Logical shift (for unsigned values)

Fill with 0’s on left

Arithmetic shift (for signed values)

Replicate most significant bit on left

Undefined Behavior

Shift amount < 0 or ≥ word size

Apply to any “integral” data type: long, int, short, char, unsigned

View arguments as bit vectors.

Arguments applied bit-wise.

7. Hands-on: bit-level operations in C

Open a terminal (Windows Terminal or Mac Terminal).

Reminder: It is podman on Windows and docker on Mac. Everything else is the same!.

Launch the container:
Windows:
$ podman run --rm --userns keep-id --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -it -v /mnt/c/csc231:/home/$USER/csc231:Z localhost/csc-container /bin/bash
Mac:
$ docker run --rm --userns=host --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -it -v /Users/$USER/csc231:/home/$USER/csc231:Z csc-container /bin/bash
Inside your csc231, create another directory called 03-data and change into this directory.

Create a file named bitwise_demo.c with the following contents:

Compile and run bitwise_demo.c.

Confirm that the binary printouts match the corresponding decimal printouts and the expected bitwise operations.

8. Encoding integers

C does not mandate using 2’s complement.

But, most machines do, and we will assume so.

Decimal Hex Binary

short int x 15213 3B 6D 00111011 01101101

short int y -15213 C4 93 11000100 10010011

Sign bit

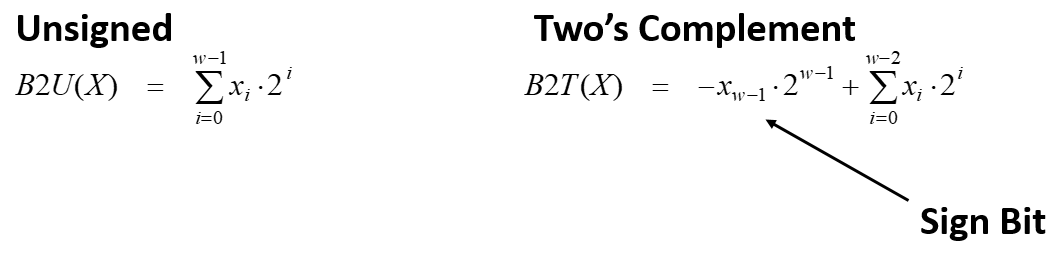

For 2’s complement, most significant bit indicates sign.

0 for nonnegative

1 for negative

	Decimal	Hex	Binary
short int x	15213	3B 6D	00111011 01101101
short int y	-15213	C4 93	11000100 10010011

9. 2’s complement examples

2’s complement representation depends on the number of bits.

Technical trick: A binary representation of the absolute value of negative 2 to the power of the number of bits minus the absolute value of the negative number.

Simple example for 5-bit representation

-16 8 4 2 1

10 0 1 0 1 0 8 + 2 = 10

-10 1 0 1 1 0 -16 + 4 + 2 = -10

Simple example for 6-bit representation

-32 16 8 4 2 1

10 0 0 1 0 1 0 8 + 2 = 10

-10 1 1 0 1 1 0 -32 + 16 + 4 + 2 = -10

Complex example

Decimal Hex Binary

short int x 15213 3B 6D 00111011 01101101

short int y -15213 C4 93 11000100 10010011

Weight 15213 -15213

1 1 1 1 1

2 0 0 1 2

4 1 4 0 0

8 1 8 0 0

16 0 0 1 16

32 1 32 0 0

64 1 64 0 0

128 0 0 1 128

256 1 256 0 0

512 1 512 0 0

1024 0 0 1 1024

2048 1 2048 0 0

4096 1 4096 0 0

8192 1 8192 0 0

16384 0 0 1 16384

-32768 0 0 1 -32768

Sum 15213 -15213

	-16	8	4	2	1
10	0	1	0	1	0	8 + 2 = 10
-10	1	0	1	1	0	-16 + 4 + 2 = -10

	-32	16	8	4	2	1
10	0	0	1	0	1	0	8 + 2 = 10
-10	1	1	0	1	1	0	-32 + 16 + 4 + 2 = -10

	Decimal	Hex	Binary
short int x	15213	3B 6D	00111011 01101101
short int y	-15213	C4 93	11000100 10010011

Weight	15213		-15213
1	1	1	1	1
2	0	0	1	2
4	1	4	0	0
8	1	8	0	0
16	0	0	1	16
32	1	32	0	0
64	1	64	0	0
128	0	0	1	128
256	1	256	0	0
512	1	512	0	0
1024	0	0	1	1024
2048	1	2048	0	0
4096	1	4096	0	0
8192	1	8192	0	0
16384	0	0	1	16384
-32768	0	0	1	-32768
Sum		15213		-15213

10. Numeric ranges

Unsigned values for w-bit word

UMin = 0

UMax = 2^w - 1

2’s complement values for w-bit word

TMin = -2^w-1

TMax = 2^w-1 - 1

-1: 111..1

Values for different word sizes:

8 (1 byte) 16 (2 bytes) 32 (4 bytes) 64 (8 bytes)

UMax 255 65,535 4,294,967,295 18,446,744,073,709,551,615

TMax 127 32,767 2,147,483,647 9,223,372,036,854,775,807

TMin -128 -32,768 -2,147,483,648 -9,223,372,036,854,775,808

Observations

abs(TMin) = TMax + 1

Asymetric range

UMax = 2 * TMax + 1

C programming

#include <limits.h>

Declares constants: ULONG_MAX, LONG_MAX, LONG_MIN

Platform specific

	8 (1 byte)	16 (2 bytes)	32 (4 bytes)	64 (8 bytes)
UMax	255	65,535	4,294,967,295	18,446,744,073,709,551,615
TMax	127	32,767	2,147,483,647	9,223,372,036,854,775,807
TMin	-128	-32,768	-2,147,483,648	-9,223,372,036,854,775,808

11. Challenge

Write a C program called numeric_ranges.c that prints out the value of ULONG_MAX, LONG_MAX, LONG_MIN. Also answer the following question: If we multiply LONG_MIN by -1, what do we get?

Note: You need to search for the correct format string specifiers.

Solution

12. Conversions (casting)

C allows casting between different numeric data types.

What should be the effect/impact?

Notations:

B2T: Binary to 2’s complement

B2U: Binary to unsigned

U2B: Unsigned to binary

U2T: Usigned to 2’s complement

T2B: 2’s complement to binary

T2U: 2’s complement to unsigned

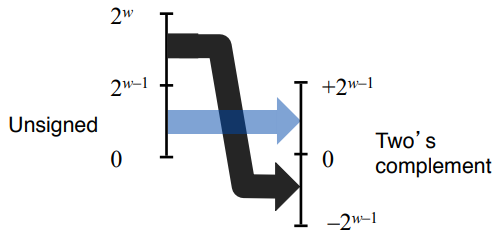

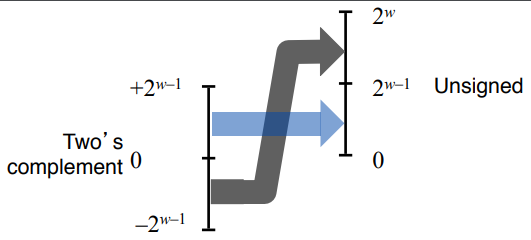

13. Visualization of conversions

T2U_w(x) = x + 2^w if x < 0

T2U_w(x) = x if x >= 0

U2T_w(x) = x - 2^w if x > TMax_w

U2T_w(x) = x if x <= TMax_w

Summary

Bit pattern is maintained but reinterpreted

Can have unexpected effects: adding or subtracting 2^w

When expressions contain both signed and unsigned int values, int values will be casted to unsigned.

14. Hands on: casting

Make sure that you are inside 03-data directory.

Create a file named casting.c with the following contents:

Compile and run casting.c.

Confirm that converted values are correct based on equations from slide 13.

15. Challenge

What is wrong with the following program?

How can this program be corrected?

Solution

16. Expanding and truncation

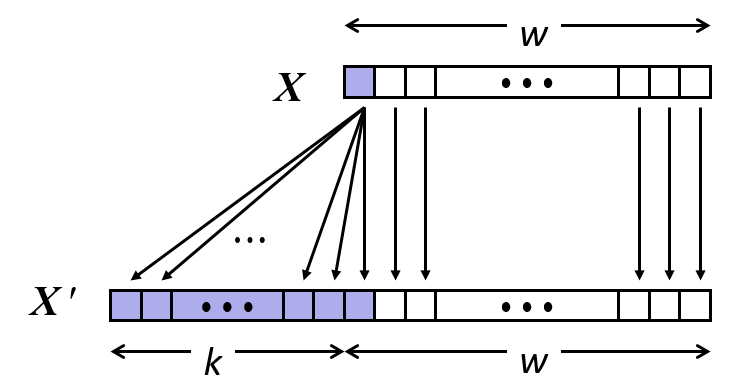

Expanding (e.g., short int to int)

Unsigned: zeros added

Signed: sign extension

Both yield expected result

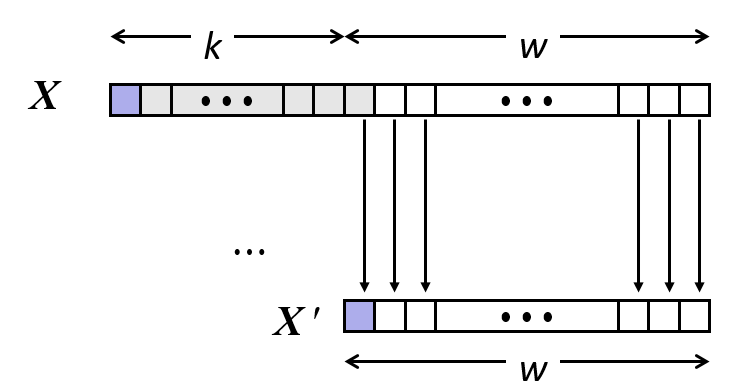

Truncating (e.g., unsigned to unsigned short)

Unsigned/signed: bits are truncated

Result reinterpreted

Unsigned: mod operation

Signed: similar to mod

For small (in magnitude) numbers yields expected behavior

17. Misunderstanding integers can lead to the end of the world!

Thule Site J: USAF radar station for missile warning and spacecraft tracking.

“There are many examples of errors arising from incorrect or incomplete specifications. One such example is a false alert in the early days of the nuclear age, when on October 5, 1960, the warning system at NORAD indicated that the United States was under massive attack by Soviet missiles with a certainty of 99.9 percent. It turned out that the Ballistic Missile Early Warning System (BMEWS) radar in Thule, Greenland, had spotted the rising moon. Nobody had thought about the moon when specifying how the system should act.” (Computer System Reliability and Nuclear War, CACM 1987).

Moon’s large size: 1000s of objects reported.

Moon’s distance: .25 million miles

Thule’s BMEWS max distance: 3000 miles.

Truncated distance to the moon: % sizeof(distance) = 2200 miles.

Remember assignment 1: The computer does not “see”, it only interprets.

Thousands of objects on the sky within missile detection range!.

Human control:

Kruschev was in New York on October 5, 1960.

Someone at Thule said, “why not go check outside?”

18. Unsigned addition

Given w bits operands

True sum can have w + 1 bits (carry bit).

Carry bit is discarded.

Implementation:

s = (u + v) mod 2^w

19. Hands on: unsigned addition

Make sure that you are inside 03-data directory.

Create a file named unsigned_addition.c with the following contents:

Compile and run unsigned_addition.c.

Confirm that calculated values are correct.

20. 2’s complement addition

Almost similar bit-level behavior as unsigned addition

True sum of w-bit operands will have w+1-bit, but

Carry bit is discarded.

Remainding bits are treated as 2’s complement integers.

Overflow behavior is different

TAdd_w(u, v) = u + v + 2^w if u + v < TMin_w (Negative Overflow)

TAdd_w(u, v) = u + v if TMin_w <= u + v <= TMax_w

TAdd_w(u, v) = u + v - 2^w if u + v > TMax_w (Positive Overflow)

21. Hands on: signed addition

Make sure that you are inside 03-data directory.

Create a file named signed_addition.c with the following contents:

Compile and run signed_addition.c.

Confirm that calculated values are correct.

22. Multiplication

Compute product of w-bit numbers x and y.

Exact results can be bigger than w bits.

Unsigned: up to 2w bits: 0 <= x * y <= (2^w - 1)²

2’s complement (negative): up to 2w - 1 bits: x * y >= (-2)^2w-2 + 2^2w-1

2’s complement (positive): up to 2w bits: x * y <= 2^2w-2

To maintain exact results:

Need to keep expanding word size with each product computed.

Is done by software if needed (arbitrary precision arithmetic packages).

Trust your compiler: Modern CPUs and OSes will most likely know to select the optimal method to multiply.

23. Multiplication and Division by power-of-2

Power-of-2 multiply with shift

u >> k gives u * 2^k

True product has w + k bits: discard k bits.

Unsigned power-of-2 divide with shift

u >> k gives floor(u / 2^k)

Use logical shift.

Signed power-of-2 divide with shift

x > 0: x >> k gives floor(u / 2^k)

x < 0: (x + (1 << k) - 1) >> k gives ceiling(u / 2^k)

C statement: (x < 0 ? x + (1 << k) - 1: x) >> k

24. Negation: complement and increase

Negate through complement and increment:

~x + 1 == -x

25. Challenge

Implement a C program called negation.c that implements and validates the equation in slide 24. The program should take in a command line argument that takes in a number of type short to be negated.

What happens if you try to negate -32768?

Solution

26. Byte-oriented memory organization

Programs refer to data by address

Conceptually, envision it as a very large array of bytes

In reality, it’s not, but can think of it that way

An address is like an index into that array

and, a pointer variable stores an address

Note: system provides private address spaces to each “process”

Think of a process as a program being executed

So, a program can clobber its own data, but not that of others

27. Machine words

Any given computer has a “Word Size”

`word size”: Nominal size of integer-valued data and of addresses

Until recently, most machines used 32 bits (4 bytes) as word size

Limits addresses to 4GB (232 bytes)

Increasingly, machines have 64-bit word size

Potentially, could have 18 EB (exabytes) of addressable memory

That’s 18.4 X 1018

Machines still support multiple data formats

Fractions or multiples of word size

Always integral number of bytes

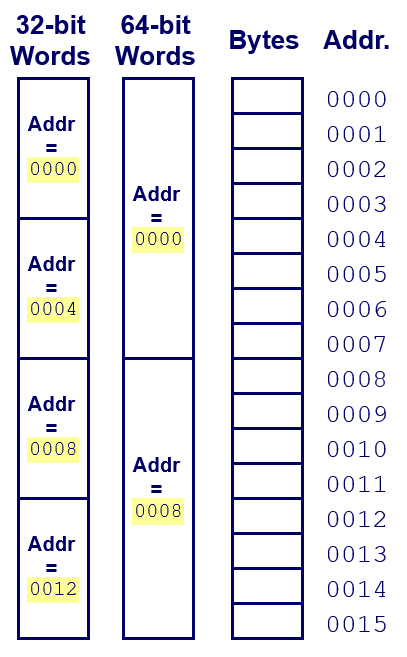

28. Word-oriented memory organization

Addresses specific byte locations

Address of first byte in word.

Address of successive words differ by 4 (32-bit) or 8 (64-bit).

30. Byte ordering in memory

Machine-dependent

Big Endian: Sun (Oracle SPARC), PPC Mac, Internet (network data transfer)

Least significant byte has the highest address.

Little Endian: x86, ARM processors running Android, iOS, and Linux

Least significant byte has lowest address.

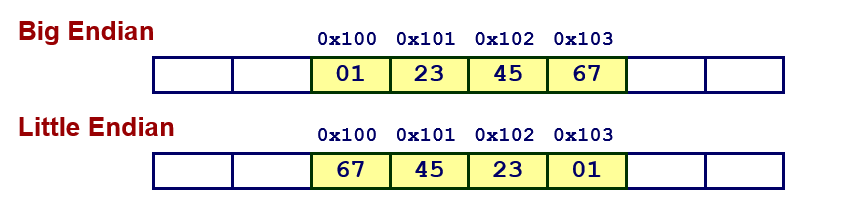

Example

Variable x has 4-byte value of 0x01234567

Address given by &x is 0x100

31. Hands on: byte ordering in memory

Make sure that you are inside 03-data directory.

Create a file named byte_ordering.c with the following contents:

Compile and run byte_ordering.c.

Confirm that calculated values are correct.

32. Fractional binary numbers

What is 1011.101₂?

8 + 0 + 2 + 1 + 1/2 + 0 + 1/4

Can only exactly represent numbers of the form x/2^k

Limited range of numbers within the w-bit word size.

33. IEEE Foating point

IEEE Standard 754

Established in 185 as uniform standard for floating point arithmetic

Supported by all major CPUs

Some CPUs don’t implement IEEE 754 in full, for example, early GPUs, Cell BE processor

Driven by numerical concerns

Nice standards for rounding, overflow, underflow

Hard to make fast in hardware (Numerical analysts predominated over hardware designers in defining standard).

34. Importance of floating-point arithmetic accuracy

Ariane 5 explordes on maiden voyage: $500 million dollars lost.

64-bit floating point number assigned to 16-bit integer

Cause rocket to get incorrect value of horizontal velocity and crash.

Patriot Missle defense system misses Scud: 28 dead

Velocity is a real number that can be expressed as a whole number and a decimal (e.g., 3750.2563…miles per hour). Time is kept continuously by the system’s internal clock in tenths of seconds but is expressed as an integer or whole number (e.g., 32,33, 34…). The longer the system has been running, the larger the number representing time. To predict where the Scud will next appear, both time and velocity must be expressed as real numbers. Because of the way the Patriot computer performs its calculations and the fact that its registers are only 24 bits long, the conversion of time from an integer to a real number cannot be any more precise than 24 bits. This conversion results in a loss of precision causing a less accurate time calculation. The effect of this inaccuracy on the range gate’s calculation is directly proportional to the target’s velocity and the length of time the system has been running. Consequently, performing the conversion after the Patriot has been running continuously for extended periods causes the range gate to shift away from the center of the target, making it less likely that the target, in this case a Scud, will be successfully intercepted.

35. IEEE Foating point representation

Numerical form: (-1)^sM2^E

Sign bit s determins whether the number is negative or positive.

Significantd M normalizes a fractional value in range [1.0, 2.0).

Exponent E weights value by power of two.

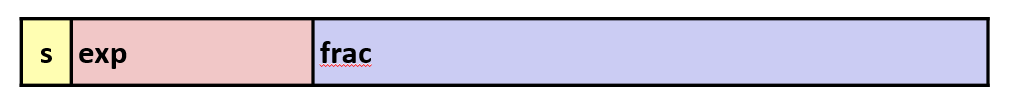

Encoding

Most significant bit is sign bit s.

exp field encodes E (but is not equal to E)

frac field encodes M (but is not equalt to M)

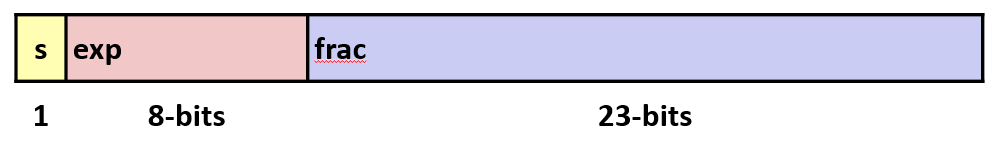

Single precision: 32 bits

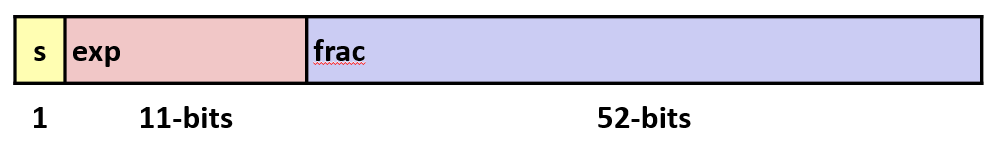

Double precision: 64 bits

36. Three “kinds” of floating point numbers

Depends on the exp field (E).

Denormalized: exp contains all 0s.

Special: exp contains all 1s.

Normalized: exp contains a mix of 0s and 1s.

37. Normalized floating point numbers

When: exp != 000…0 and exp != 111…1

Exponent coded as a biased value: E = exp – Bias

exp: unsigned value of exp field

Bias = 2^k-1 - 1, where k is number of exponent bits

Single precision: 127 (exp: 1…254, E: -126…127)

Double precision: 1023 (exp: 1…2046, E: -1022…1023)

Significand coded with implied leading 1: M = 1.xxx…x₂

xxx…x: bits of frac field

Minimum when frac=000…0 (M = 1.0)

Maximum when frac=111…1 (M = 2.0 – ε)

Get extra leading bit for “free” (hence the range: [1.0, 2.0))

38. Example: normalized floating point numbers

Value: float F = 15213.0;

15213₁₀ = 11101101101101₂ = 1.1101101101101₂ * 2¹³

Significand:

M = 1.1101101101101₂

frac = 11011011011010000000000₂

Exponent:

E = 13

Bias = 127

exp = 140 = 10001100₂

Result: 0 10001100 11011011011010000000000

39. Hands on: check floating point representation

Make sure that you are inside 03-data directory.

Create a file named show_fp.c with the following contents:

Compile and run show_fp.c.

Confirm that calculated values in slide 38 are correct.

40. Denormalized floating point

Condition: exp = 000…0

Exponent value: E = 1 – Bias

Significand coded with implied leading 0: M = 0.xxx…x₂

xxx…x: bits of frac

Cases

exp = 000…0, frac = 000…0

Represents zero value

Note distinct values: +0 and –0

exp = 000…0, frac ≠ 000…0

Numbers closest to 0.0

Equispaced

41. Special cases

Condition: exp = 111…1

Case: exp = 111…1, frac = 000…0

Represents value infinity

Operation that overflows

Both positive and negative

Case: exp = 111…1, frac != 000…0

Not-a-Number (NaN)

Represents case when no numeric value can be determined

42. Floating operations: basic idea

Compute exact result.

Make it fit into desired precision.

Possible overflow if exponent too large

Possible round to fit into frac

Rounding modes

1.40 1.60 1.50 2.50 -1.50

Towards zero 1 1 1 2 -1

Round down 1 1 1 2 -2

Round up 2 1 1 3 -1

Nearest even (default) 1 2 2 2 -2

Nearest even

Hard to get any other mode without dropping into assembly.

C99 has support for rounding mode management

All others are statistically based

Sum of set of positive numbers will consistently be over- or under-estimated.

	1.40	1.60	1.50	2.50	-1.50
Towards zero	1	1	1	2	-1
Round down	1	1	1	2	-2
Round up	2	1	1	3	-1
Nearest even (default)	1	2	2	2	-2

43. Floating point multiplication

(-1)^s₁M₁2^E₁ * (-1)^s₂M₂2^E₂.

Exact result: (-1)^sM2^E

s = s₁^s₂

M = M₁*M₂

E = E₁+E₂

Correction

If M >= 2, shift M right, increment E.

If E out of range, overflow.

Round M to fit frac precision

Implementation: Biggest chore is multiplying significands.

44. Floating point addition

(-1)^s₁M₁2^E₁ + (-1)^s₂M₂2^E₂.

Exact result: (-1)^sM2^E

Sign s, significand M: result of signed align and add

E = E₁

Correction

If M >= 2, shift M right, increment E.

If M < 1, shift M left k positions, decrement E by k.

Overflow if E out of range

Round M to fit frac precision

Implementation: Biggest chore is multiplying significands.

45. Mathematical properties of floating point addition

Compare to those of Abelian group (a group in which the result of applying the group operation to two group elements does not depend on the order in which they are written):

Closed under addition? Yes (but may generate infinity or NaN)

Communicative? Yes

Associative? No

Overflow and inexactness of rounding

(3.14+1e10)-1e10 = 0, 3.14+(1e10-1e10) = 3.14

0 is additive identity? Yes

Every elemtn has additive inverse? Almost

Except for infinities and NaN

Monotonicity?

Almost

Except for infinities and NaN

46. Mathematical properties of floating point multiplication

Compare to those of Abelian group (a group in which the result of applying the group operation to two group elements does not depend on the order in which they are written):

Closed under addition? Yes (but may generate infinity or NaN)

Communicative? Yes

Associative? No

Overflow and inexactness of rounding

(1e20 * 1e20) * 1e-20= inf, 1e20 * (1e20 * 1e-20)= 1e20

1 is additive identity? Yes

Multiplication distributes over addition? No

Overflow and inexactness of rounding

1e20 * (1e20-1e20)= 0.0, 1e20 * 1e20 – 1e20 * 1e20 = NaN

Monotonicity?

Almost

Except for infinities and NaN

47. Floating point in C

C guarantees two levels

float: single precision

double: double precision

Conversion/casting

Casting between int, float, and double changes bit representation

double/float to int

Truncates fractional part

Like rounding toward zero

Not defined when out of range or NaN: Generally sets to TMin

int to double

Exact conversion, as long as int has ≤ 53 bit word size

int to float

Will round according to rounding mode

Key Points

Various information representation schemes are utilized to represent different data types given the bit-size limitations.

previous episode

Computer Systems

next episode

Representing and manipulating information

Overview

1. Everything is bits

2. Encoding byte values

3. Example data representations

4. Boolean algebra

5. General Boolean algebra

6. Bit-level operations in C

7. Hands-on: bit-level operations in C

Windows:

Mac:

8. Encoding integers

9. 2’s complement examples

10. Numeric ranges

11. Challenge

Solution

12. Conversions (casting)

13. Visualization of conversions

14. Hands on: casting

15. Challenge

Solution

16. Expanding and truncation

17. Misunderstanding integers can lead to the end of the world!

18. Unsigned addition

19. Hands on: unsigned addition

20. 2’s complement addition

21. Hands on: signed addition

22. Multiplication

23. Multiplication and Division by power-of-2

24. Negation: complement and increase

25. Challenge

Solution

26. Byte-oriented memory organization

27. Machine words

28. Word-oriented memory organization

30. Byte ordering in memory

31. Hands on: byte ordering in memory

32. Fractional binary numbers

33. IEEE Foating point

34. Importance of floating-point arithmetic accuracy

35. IEEE Foating point representation

36. Three “kinds” of floating point numbers

37. Normalized floating point numbers

38. Example: normalized floating point numbers

39. Hands on: check floating point representation

40. Denormalized floating point

41. Special cases

42. Floating operations: basic idea

43. Floating point multiplication

44. Floating point addition

45. Mathematical properties of floating point addition

46. Mathematical properties of floating point multiplication

47. Floating point in C

Key Points

previous episode

next episode
