Lab3 Hint -- Walkthrough for ROP.c

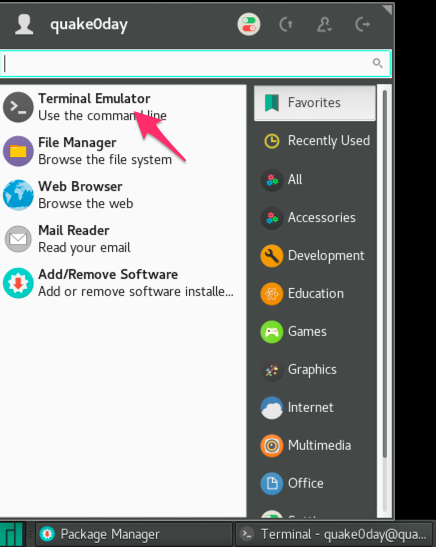

Step 1: Open Terminal

Step 2: Check and Turn off ASLR

Type: cat /proc/sys/kernel/randomize_va_space If return 0, it means the ASLR have been turned off. Otherwise, we need to manually turn it off.

To turn off ASLR:

Change to root user: su root, default password is csc495
Then type: echo 0 > /proc/sys/kernel/randomize_va_space

Step 3: Compile the code

• Download the source code to a folder
• Compile the code, make sure to turn off StackGuard gcc rop.c -o rop -m32 -fno-stack-protector -no-pie
• rop.c can be downloaded here:[Link]

Step 4: Use GDB to trigger buffer overflow

• Similarly to lab1, please use gdb to adjust the length of the dummy characters to trigger buffer overflow

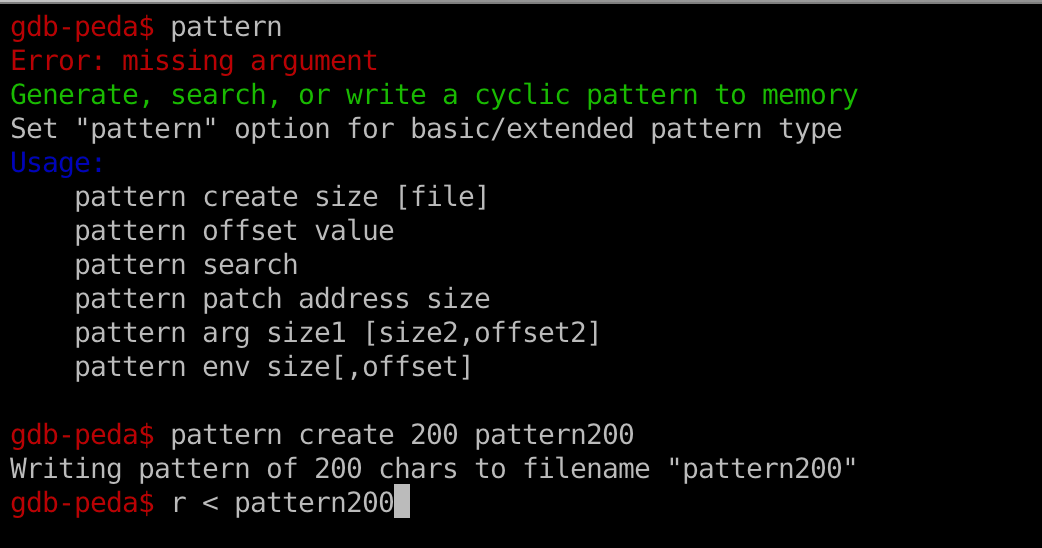

• You can use peda plugin to generate, search, or write a cyclic pattern:

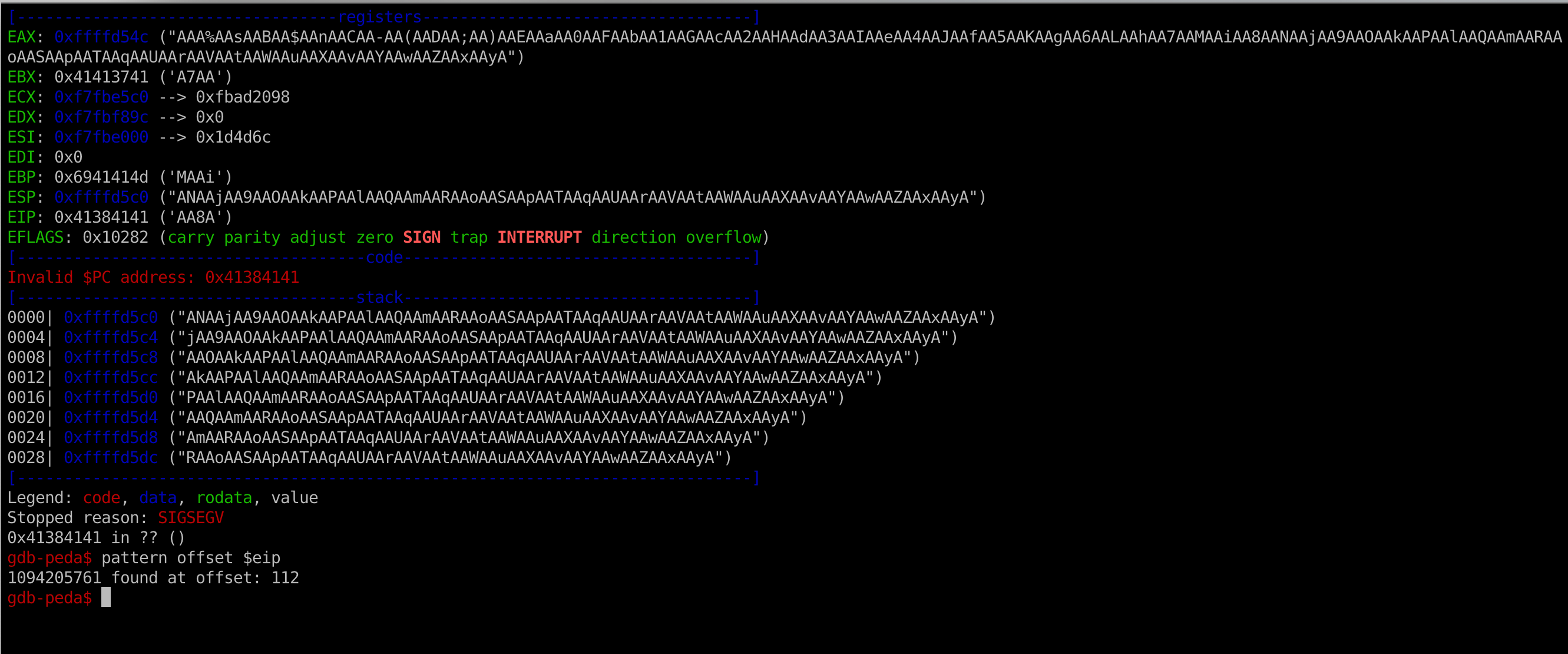

• The offset is 112.

Step 5: Prepare ROP chain

In your python script, you need to add the address of the add_bin(), add_bash(),exec_string(), and all gadgets with it's actual address. Make sure the script and the binary file (rop) are in the same folder and then type python2 exploitROP.py
• exploitROP.py can be downloaded here:[Link]
• The ROP chain should call add_bin() function first, then pass one argument 0xdeadbeef to make sure magic == 0xdeadbeef. After that, we need to use a pop, ret gadget to clean that argument (note: each pop delete one argument from the stack) on the stack
• Check ch10.pptx for more details: [Link]

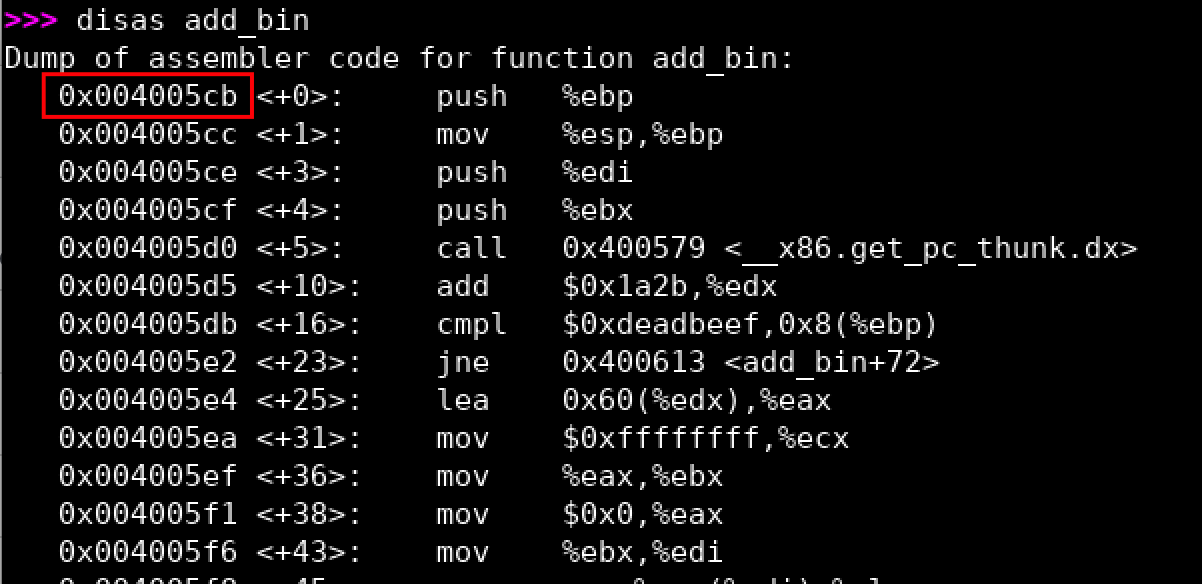

• The address of add_bin() function is: 0x004005cb (note: you may have a different address)

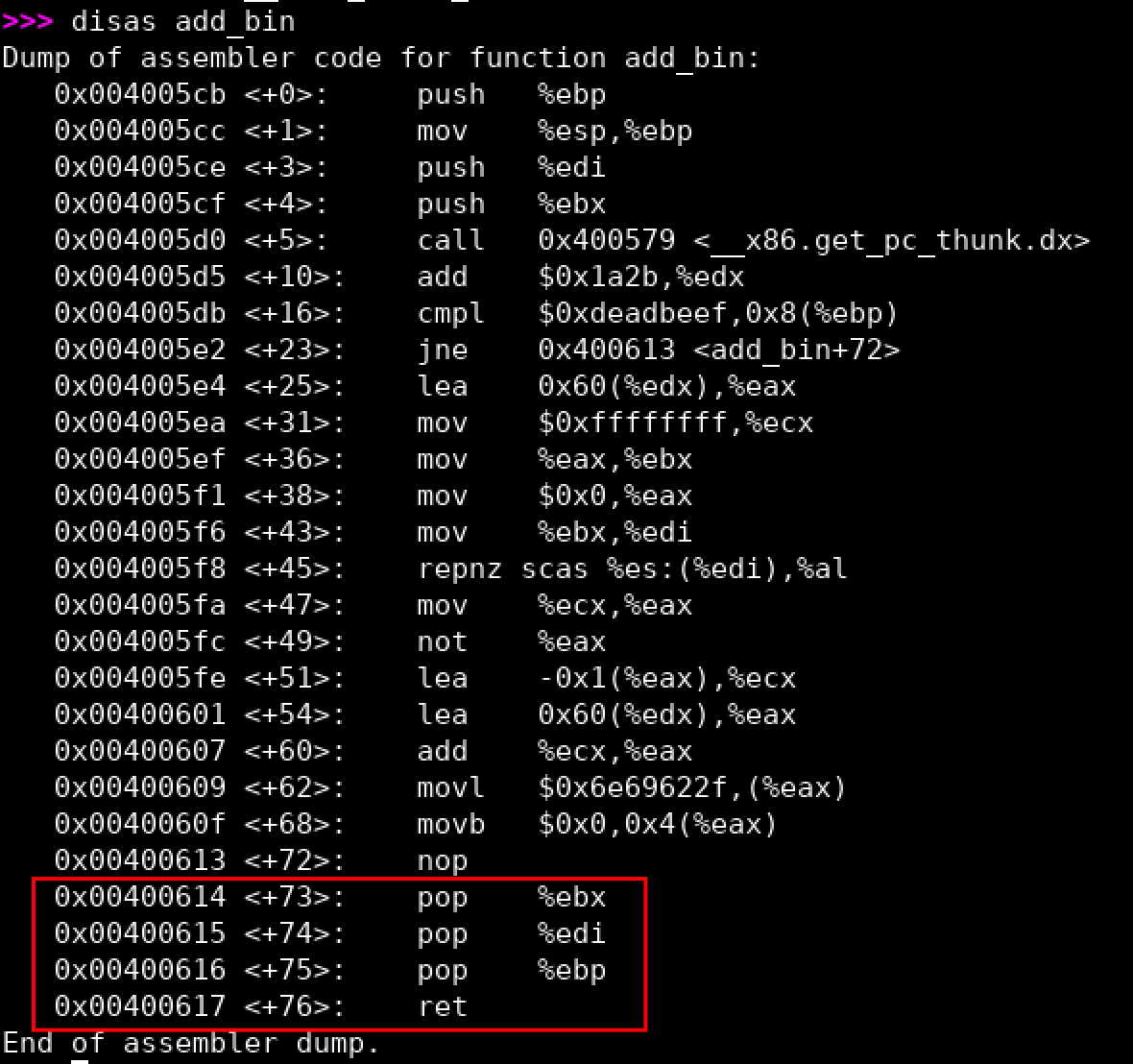

• The pop, ret gadget we can utilize is located at the end of the add_bin() function 0x00400616 :) (note: you may have a different address)
• Next, the ROP chain should call add_bash() function. Please check the source code to figure out the layout of the arugments and also the gadget.

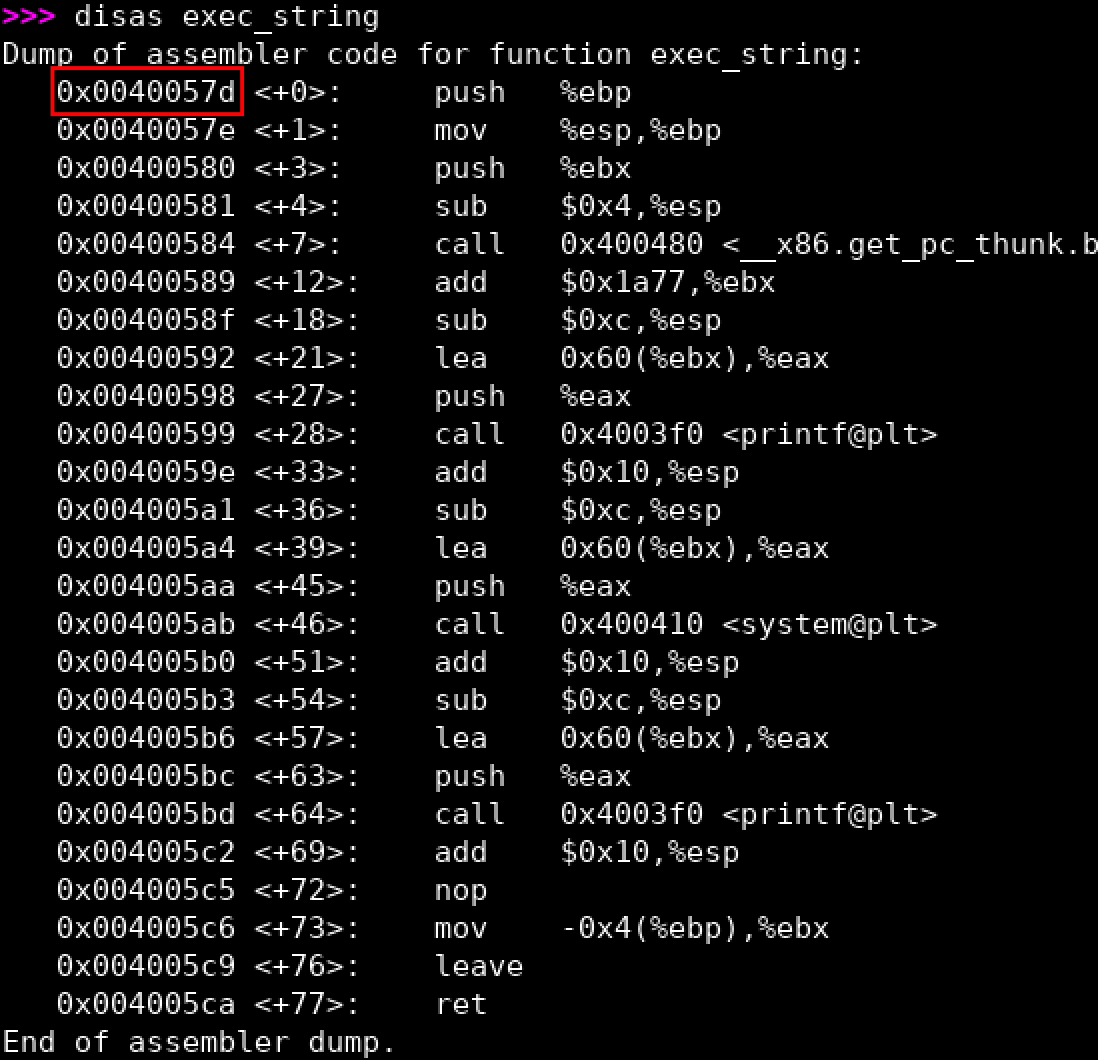

• Finally, we need to put the exec_string's address into our ROP chain

• You can type any bash shell command now:) Have fun
