RBAC Model Taxonomy

1. Overview

Models
  • Core RBAC
  • Hierarchical RBAC
  • Static constrained RBAC
  • Dynamic constrained RBAC
Roles versus ACL groups
  • ACL (access control list)
    • a lower-level mechinism that contains names of subjects that are authorized to access the object to which it refers.
    • specific permissions that are granted to each authorized subject
  • Roles
    • at a basic level, could be equivalent to the concept of groups
      • collection of users
      • users can have multiple roles (belong to multiple groups)
    • semantically different from group
      • groups are implementation-specific and characteristics can change.
      • roles are defined in term of properties with fixed characteristics.

2. Core RBAC

Overview
  • Consists of users, roles, and permissions, which are operations applied to objects.
  • Permissions are associated with roles.
  • Users are members of roles.
Administrative support
  • Permissions are assigned to roles
  • Simplifying the understanding and management of permissions.
  • Access requirements to resources are performed at the same level of abstractions as typical business processes in an enterprise:
    • role: teller, loan officer, doctor, nurse ...
    • operation: withdraw cash, deposit cash, write prescription, draw blood test
Permissions
  • Reflect higher-level organizational policy
  • Mutually exclusive roles
  • Cardinality: maximum numbers with respect to role
  • Pre-requisite:
    • can assign role only if already assigned prerequisite role
    • Not hierarchical
Role activation
  • Properties and mappings in RBAC can be divided into static and dynamic components.
  • Dynamic components of RBAC includes role activation and subject access.
    • Dynamic mapping of subject to user
    • Dynamic mapping of user to active role set.

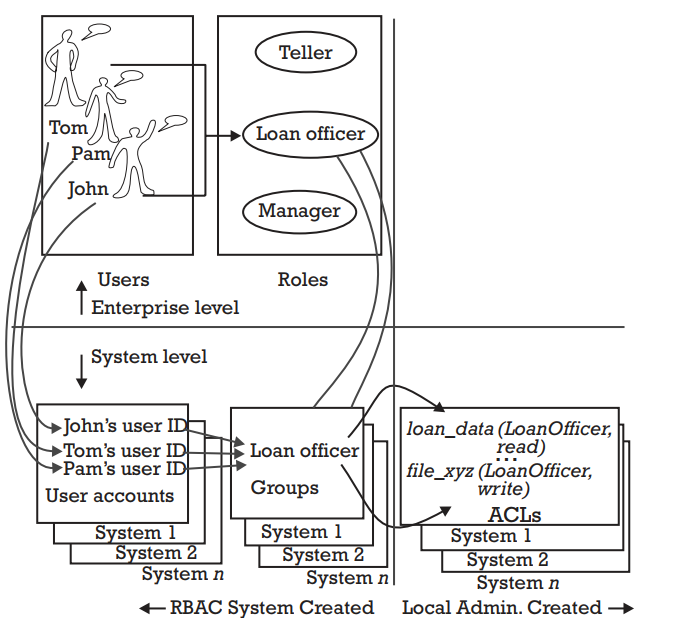

Mapping the enterprise view to the system view
  • Privileges are system-specific and permissions are mapped into privileges.
  • Uses and roles can have common meaning across multiple systems.

  • The relationship between roles and permissions depends on the scope on which RBAC is implemented.
    • RBAC implemented within an operating system: integration with users/groups/operations and resources of the computer system.
    • For distributed systems: RBAC needs to be implemented at the LDAP/server level to support SSO/Shibboleth Authentication.

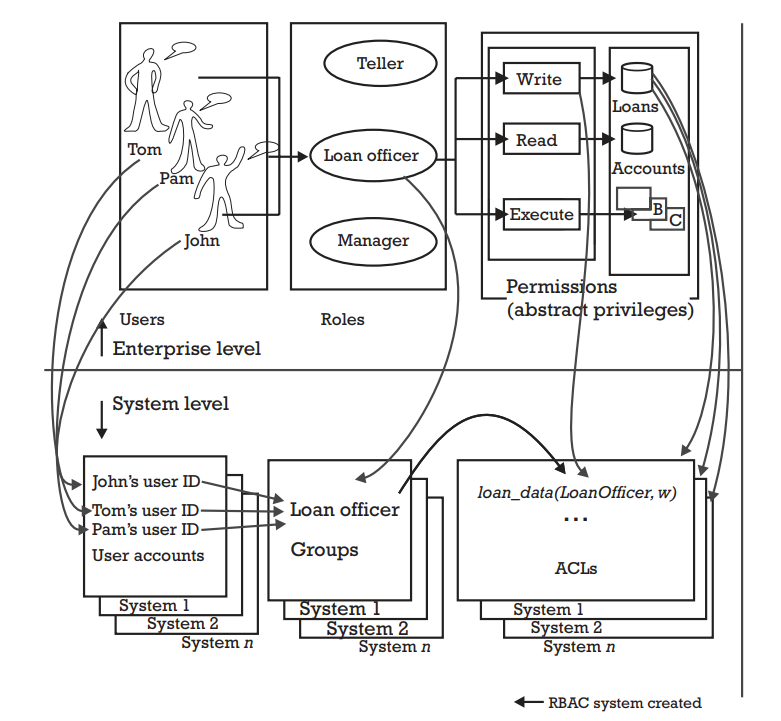

  • First step for enterprise-level RBAC
    • Create and maintain direct associations between RBAC users and local user IDs.
    • Local resources are protected via local users IDs and groups.
  • Operations and resources are created as abstractions.

3. Hierarchical RBAC

Role hierarchies
  • Permissions that are assigned to the role are known to contain, or be contained by, other roles in hierarchy.
  • A inherits B means all B's permissions are available to A.
  • Additional complexity cost in planning and construction but achieve improved adminitrative productivity.
Building hierarchies
  • Motivation: individual roles have overlapping functions.
  • With role hierarchy, collections of permissions can be defined using multiple subordinate roles.

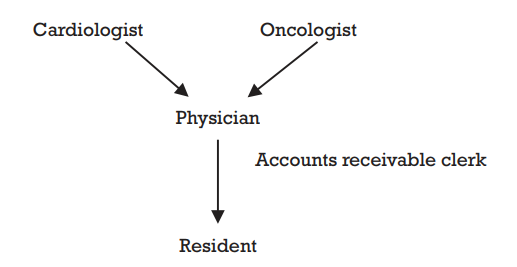

  • Example:
    • Physician inherits from Resident
    • Cardiologist inherits from Physician
    • Oncologist inherits from Physician
    • Accounts receivable clerk does not inherit from or is inherited by any of the above roles.

Inheritance schemes
  • Direct privilege inheritance
    • Closed management systems where there is only a single class of resources and operations.
  • Permission and user membership inheritance
    • Role represents both collections of permissions and users.
    • Top of graph represents more powerful roles
    • Greater opportutinies for redundant authorization of permissions to a user exist.

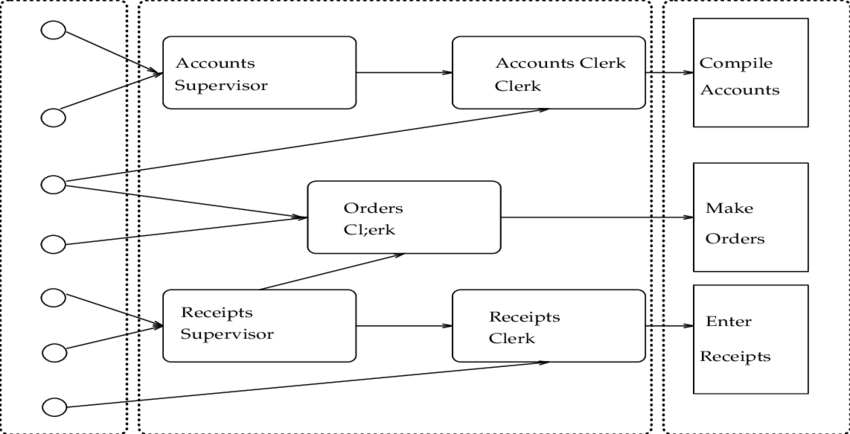

  • User containment and indirect privilege inheritance
    • Used in distributed RBAC implementations
    • Permissions are assigned to groups and groups are mapped to roles.
    • Users belong to groups
    • Examples: Supercomputing infrastructures
Hierarchy structures and inheritance forms
  • Role hierarchies can also support
    • line of authority
    • functional delineation
    • geographic responsibilities
  • Connector roles
    • not typicall assigned to users
    • define collection of permisisons to be inherited by higher-order roles.

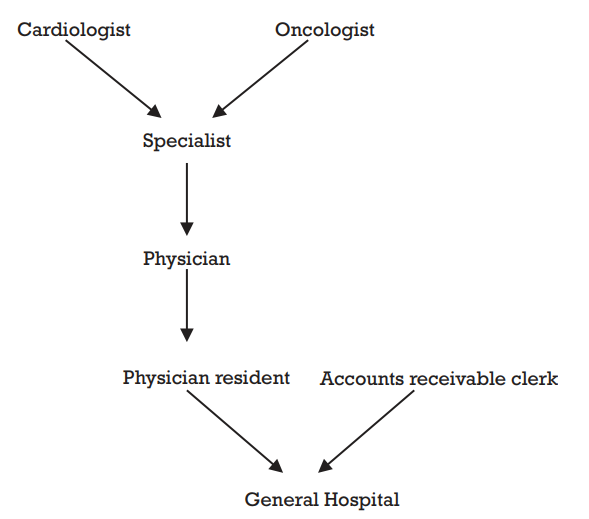

    • Example:
      • Physician inherits from Resident
      • Specialist inherits from Physician
      • Cardiologist inherits from Specialist
      • Oncologist inherits from Specialist
      • Accounts receivable clerk does not inherit from or is inherited by any of the above roles.

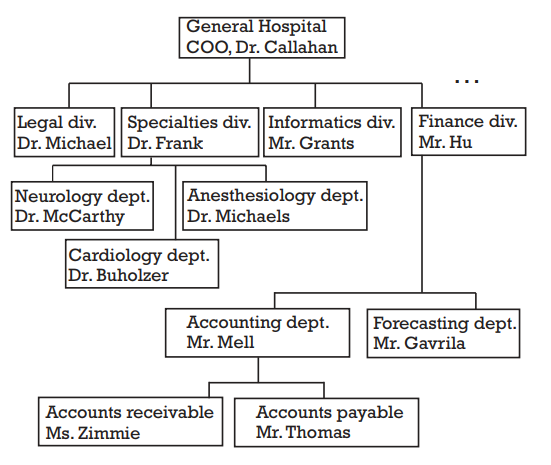

Organization chart hierarchies
  • Typical enterprises are structured and managed along organizational boundaries
  • departments, divisions, groups, and teams.
  • OU: organizational units.

  • Means of precisely describe (delineate)
    • line of authority
    • resource ownership
    • areas of responsibility
  • OUs do not
    • define complete sets of jobs positions or roles
    • prescribe privilege inheritance relations
  • OUs do
    • assist in defining roles
    • represent collection of functions and users
    • define business processes and workflows
General and limited role hierarchies
  • General hierarchies
    • support multiple inheritances of permissions and user membership among roles
    • allow a role to have more than one immediate ascendants (inheriting user membership from multiple sources) and more than one immediate descendents (inheriting permissions from multiple sources).
    • Example: student worker

  • Limited role hierarchies impose restrictions on the above characteristics:

    • single immediate descendent only.
    • remain the norm in popular commercial authorization management products

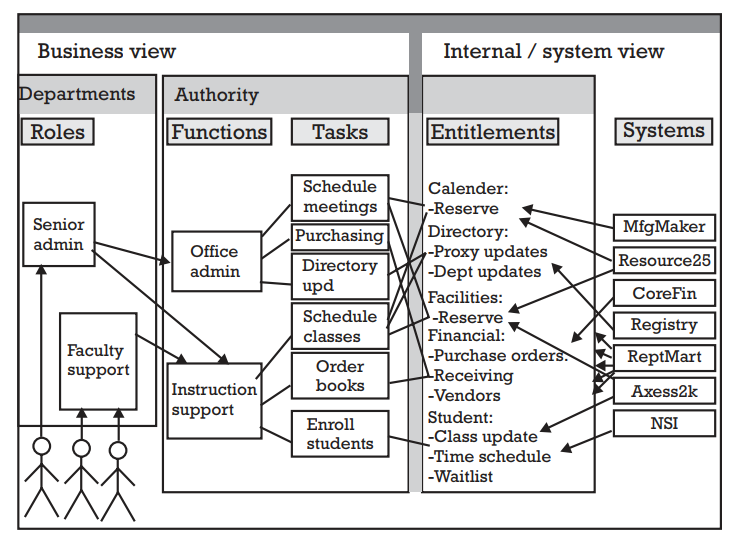

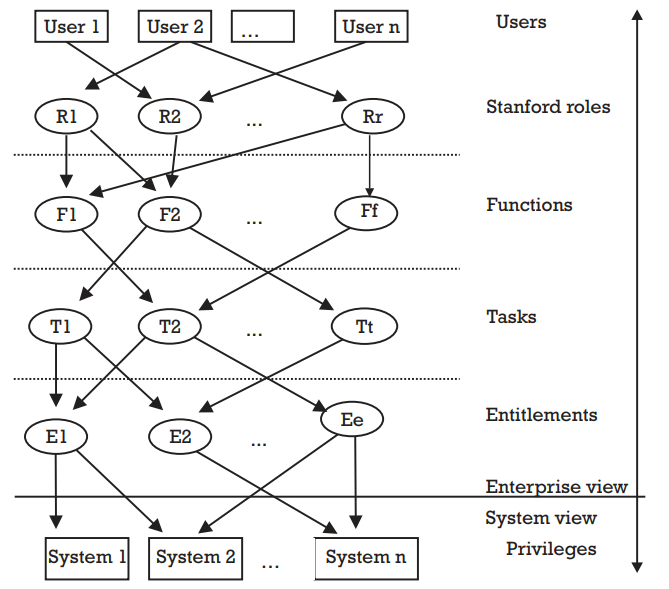

  • Stanford model:

    • Object-oriented approach to management enterprise's distribution of permissions.
    • recognizes various layers of abstractions: entitlements, tasks, functions, roles

4. Separation of Duty and RBAC Constraints

Overview
  • Separation of Duty (SoD) is a fundamental principle in security systems.
  • Critical operations are divided among two or more people, so that no single individual can compromise security.
Type of SoD
  • Two broad categories: static and dynamic
    • Distinguish by the time at which the role constraints are applied.
    • Static SoD places constraints at the time users are authorized for roles.
    • Dynamic SoD constraints are applied when users are using the system.

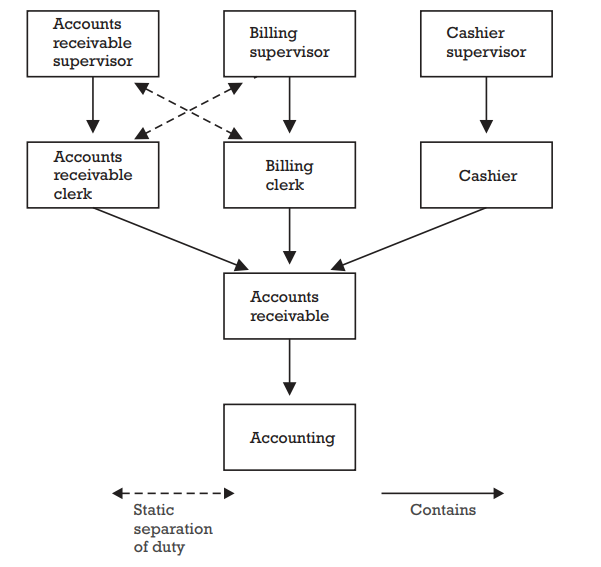

Static SoD (SSD)
  • Enforce assignment of users to roles.
    • If a user is assigned to one role, they cannot be member of another role.
    • In the presence of a hierarchy, inherited roles are also considered when enforcing constraints.
    • For example, a billing clerk role cannot also be a account receivable clerk role.

Dynamic SoD
  • Users maybe authorized for roles with conflict, but limitations are imposed when the user is logged on to the system.
    • Timely revocation of trust.
    • Can still create policy concerns.
    • Need extensive system support.
Using SoD in real systems
  • Most RBAC systems available today support role hierarchies
    • Property 1: Two roles \(R_i\) and \(R_j\) can be mutually exclusive only if neither one inherits the other, either directly or indirectly.
    • Property 2: If there are two roles \(R_i\) and \(R_j\) that are mutually exclusive, then there can be no third role that inherits both of them. As with property 1, this property must be handled properly by role management tools to allow administrators to set up role hierarchies that do not violate SoD constraints.
    • Property 3: If static SoD holds, then DSD is maintained. Clearly, if a user is only authorized for one of two roles, then he or she can never be active in both.
    • Property 4: If there are any two roles \(R_i\) and \(R_j\) that are mutually exclusive, then there can be no root or superuser role active on the system.
  • Mutual exclusion is used to enforce SoD policies.
    • Exclusion specified by sets (membership in one set preclude membership in others)
    • Exclusion specified by role-pair (potentially computationally intensive)
  • Assigning roles to users
    • Roles must be assigned in such away that no user can violate SoD rules through a combination of roles.
      • No single user posesses all privileges needed to accomplish a task controled under SoD.
      • Govem a set of roles and relationships, what is the minimal number of users required to ensure SoD?
Temporal constraints in RBAC systems
  • Incorporate the notion of time in specifying access control requirements
    • To limit resource usage in workflow environment
    • To limit role availability and activation capability
  • Taxonomy
    • Temporal constraints on roles
    • Temporal constraints on user-role assignments
    • Temporal constraints on role-permission assignments
  • Time-related concepts
    • Periodicity
    • Duration
  • Constraints
    • Role-enabling and disabling constraints (e.g. enable role doctor-on-call for specific doctors)
    • Role-activation and deactivation constraints (e.g. duration available for download)
    • Role-permission assignments constraints (e.g., hire John Smith as contractor between Sep and Dec)
  • Supporting requirements must also be enabled to support temporal constraints.
