Resource Units and Management in Kubernetes

---

0. Logistics

• Last day of the course: Thursday December 4th
• Review
• Final presentation periods:
• December 4th (4 presentation spots)
• December 2nd (5 presentation spots)
• Attendance: Mandatory for ALL member, whether your team presents or not.

---

1. What Is Resource Management?

In Docker, containers share all host resources without formal boundaries.
In Kubernetes, resource management ensures that:

• No single Pod monopolizes CPU or memory (“noisy neighbor” problem).
• Workloads get fair and predictable performance.
• Nodes and clusters remain healthy under load.

This is achieved using requests, limits, quotas, and namespaces.

---

2. Resource Units

CPU Units

• 1 CPU = 1 Kubernetes CPU unit = one virtual core (1 vCPU).
• Measured in millicores:
• 500m = 0.5 CPU
• 1000m = 1 CPU
• Fractional values are expressed with the m suffix (milli).

Behavior: - CPU is compressible — the container can use more than its request if the node has spare capacity, but it is throttled if it exceeds its limit. - Throttling happens via Linux cgroups’ CFS quota.

Memory Units

• Memory is measured in bytes.
• Common suffixes:
• SI (base-10): k, M, G, T
• Binary (base-2): Ki, Mi, Gi, Ti
• Example:
• 256Mi = 256 × 2²⁰ bytes ≈ 268 MB
• 1Gi = 1024 × 1024 × 1024 bytes ≈ 1.07 GB

Abstract

Memory is incompressible — if a container exceeds its limit, it is terminated with an OOMKilled (Out-of-Memory) event.

Extended Resources

Kubernetes also supports:

Type	Example Unit	Notes
Ephemeral Storage	ephemeral-storage: "1Gi"	Temporary local disk
HugePages	hugepages-2Mi: 128Mi	For special workloads
Custom Resources	nvidia.com/gpu: 1	GPU or device-specific

---

3. Resource Requests and Limits

Every container can specify requests (minimum) and limits (maximum) for CPU and memory.

resources:
  requests:
    cpu: "250m"
    memory: "256Mi"
  limits:
    cpu: "500m"
    memory: "512Mi"

Pod with Resource Requests and Limits

Create a file called pod-with-resources.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: cpu-mem-demo
spec:
  containers:
  - name: stress-container
    image: polinux/stress
    command: ["stress"]
    args: ["--cpu", "1", "--vm", "1", "--vm-bytes", "200M", "--vm-hang", "1"]
    resources:
      requests:
        cpu: "250m"
        memory: "256Mi"
      limits:
        cpu: "500m"
        memory: "512Mi"

Deploy the pod:

kubectl apply -f pod-with-resources.yaml
kubectl get pods
kubectl describe pod cpu-mem-demo
kubectl top pods

Observe how the scheduler allocates CPU shares and memory quota to this Pod.

---

4. Namespaces

Namespaces organize resources logically within a cluster. They act like virtual clusters on top of a single physical cluster.

Built-in namespaces

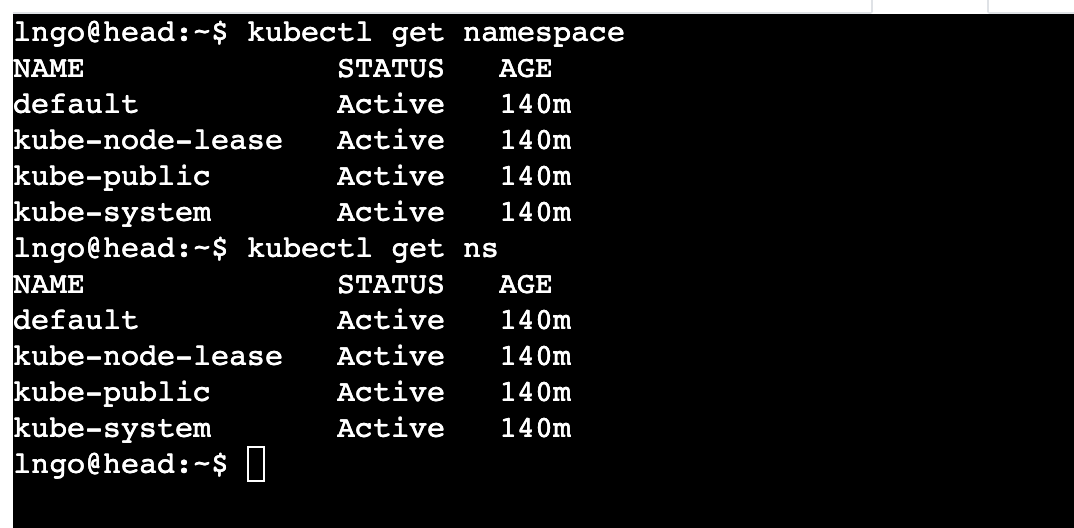

• Run the following commands on the headnode to list all available namespaces.
• You can use either ns or namespace.

kubectl get namespace
kubectl get ns

• default: Default namespace for user-created resources without namespace specified.
• kube-system: Special, reserved namespace for system components.
• kube-public: Name space for resources meant to be readable by all users.
• kube-node-lease: for Lease objects, which serves as node heartbeats.

Create a new namespace

Create a file named namespace.yaml:

apiVersion: v1
kind: Namespace
metadata:
  name: team-alpha
  labels:
    environment: development

Deploy the namespace manifest and check its availability.

kubectl apply -f namespace.yaml
kubectl get namespaces

5. ResourceQuota

When multiple teams share a cluster, you can restrict total resource usage per namespace.

Quote

A resource quota, defined by a ResourceQuota object, provides constraints that limit aggregate resource consumption per namespace. A ResourceQuota can also limit the quantity of objects that can be created in a namespace by API kind, as well as the total amount of infrastructure resources that may be consumed by API objects found in that namespace.

Create namespace and quota

kubectl create namespace dev

Create a manifest file called dev-quota.yaml:

apiVersion: v1
kind: ResourceQuota
metadata:
  name: dev-quota
  namespace: dev
spec:
  hard:
    requests.cpu: "2"
    requests.memory: 1Gi
    limits.cpu: "4"
    limits.memory: 1Gi
    pods: "4"

Apply the manifest file:

kubectl apply -f dev-quota.yaml
kubectl describe quota dev-quota -n dev

• Create and apply following deployment manifest called quota-demo-deploy.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: quota-demo
  namespace: dev
spec:
  replicas: 5
  selector:
    matchLabels:
      app: quota-demo
template:
  metadata:
    labels:
      app: quota-demo
  spec:
    containers:
    - name: busybox-demo
      image: busybox
      command: ["sh", "-c", "while true; do echo $(date) >> /tmp/date.log; sleep 10; done"]
      resources:
        requests:
          cpu: "500m"
          memory: "256Mi"
        limits:
          cpu: "1"
          memory: "256Mi"

• Confirm that we are not able to go above 4 replicas, as any Pod created in the dev namespace will be checked against this quota. If usage exceeds these totals, new Pods are rejected.

# Verify quota
kubectl describe quota dev-quota -n dev

# Deploy workloads
kubectl apply -f quota-demo-deploy.yaml

# Observe results
kubectl get pods -n dev
kubectl describe deployment quota-demo -n dev

• Delete the quote-demo deployment!

6. LimitRange

• A LimitRange defines default, minimum, and maximum resources for containers within a namespace.

Default Limits

• Create a manifest file called default-limits.yaml:

apiVersion: v1
kind: LimitRange
metadata:
  name: default-limits
  namespace: dev
spec:
  limits:
  - default:
      cpu: 500m
      memory: 512Mi
    defaultRequest:
      cpu: 200m
      memory: 256Mi
    type: Container

• Apply these limits to the dev namespace:

kubectl apply -f default-limits.yaml

• Now, any Pod without explicit resource requests/limits will inherit these defaults.

7. How Resource Enforcement Works Internally

Layer	Responsibility
Scheduler	Uses requests to pick a node that can host the Pod
Kubelet	Reserves node resources according to requests
Container	runtime (cgroups) Enforces limits (CPU throttling or OOM kill)
Metrics server	Reports usage (kubectl top)
Rancher UI / Dashboard	Visualizes namespace-level usage

8. Quality of Service (QoS) Classes

Kubernetes classifies Pods based on resource configuration:

QoS Class	Condition	Behavior
Guaranteed	All containers have requests = limits	Highest priority, least likely to be evicted
Burstable	Requests < limits	Medium priority
BestEffort	No requests or limits	Lowest priority, evicted first

You can check a Pod’s QoS with:

kubectl get pod cpu-mem-demo -o jsonpath='{.status.qosClass}'
