ClusterIP, NodePort, and Multi-Service Communication

1. Motivation

  • We learned about Pods and Deployments, the unit of execution and how to scale/manage them.
  • We also briefly touched on Services.
    • How do we move move from running apps to connecting apps.
  • Services in Kubernetes provide stable networking endpoints for ephemeral pods.
  • Two important service types:
    • ClusterIP: Internal access within the cluster.
    • NodePort: External access to services from outside the cluster.

2. Services Overview

  • Pods get dynamic IPs that can change when restarted.
  • Services provide:
    • Stable DNS names (e.g., my-service.default.svc.cluster.local)
    • Load balancing across pod replicas
  • Service types:
    • ClusterIP: Internal only (default).
    • NodePort: Exposes service on a static port on each node.
    • LoadBalancer: Cloud provider managed (beyond today’s scope).
flowchart TB
    subgraph Cluster["Kubernetes Cluster"]
        subgraph Pods["Pods"]
            B1["Backend Pod 1"]
            B2["Backend Pod 2"]
        end
        subgraph ClusterIPService["Service: ClusterIP"]
            C1["Virtual IP\n(10.x.x.x)"]
        end
        subgraph NodePortService["Service: NodePort"]
            N1["ClusterIP\n+ NodePort"]
        end
    end

    %% ClusterIP flow
    ClientIn["Internal Pod (curl)"] -->|"DNS: backend-svc"| C1 --> B1
    C1 --> B2

    %% NodePort flow
    ExternalClient["External Client\n(Browser or curl)"] -->|"http://NodeIP:Port"| N1 --> B1
    N1 --> B2

    %% Styling
    classDef cluster fill:#f0f8ff,stroke:#4682b4,stroke-width:2px;
    classDef service fill:#ffe4b5,stroke:#d2691e,stroke-width:2px;
    class Cluster,Pods cluster
    class ClusterIPService,NodePortService service

3. ClusterIP Services

Concept

  • Internal communication between pods.
  • Example: Frontend pod calls a backend service by DNS.

ClusterIP Demo

  • Create and deploy a backend Pod Deployment (simple HTTP echo app) called echo-deployment.yaml:
apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend
spec:
  replicas: 2
selector:
  matchLabels:
    app: backend
template:
  metadata:
    labels:
        app: backend
  spec:
    containers:
    - name: backend
      image: nginxdemos/hello:plain-text
      ports:
      - containerPort: 80

kubectl apply -f echo-deployment.yaml
  • Let's expose it with a ClusterIP service.
    • Create and deploy a service manifest called echo-svc.yaml.
apiVersion: v1
kind: Service
metadata:
  name: backend-svc
spec:
  selector:
    app: backend
  ports:
    - port: 80
    targetPort: 80

kubectl apply -f echo-deployment.yaml
  • Verify DNS-based resolution inside the cluster:
    • Calling the servce backend-svc links us to the Pod.
kubectl run curl --image=alpine -it --rm
# inside pod:
apk update
apk add curl
curl backend-svc

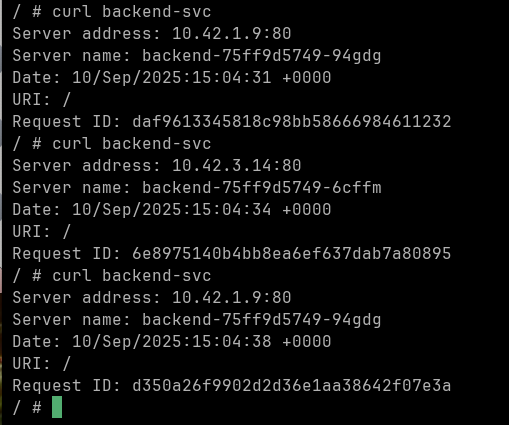

  • Observe how curl can return results from different pods.

4. NodePort Services

Concept

  • Makes service accessible from outside cluster.
  • Kubernetes opens a static port (30000–32767) on all nodes.

NodePort

  • Manually expose the backend service externally:
kubectl expose deployment backend --name=backend-nodeport --type=NodePort --port=80 --target-port=80

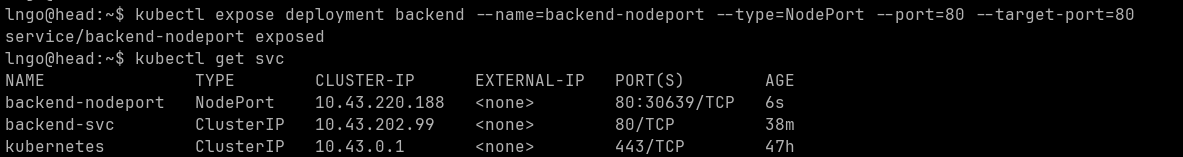

  • Check service details:
kubectl get svc backend-nodeport
  • You wil be assigned a random port between 30000 and 32767. An example output could be:

  • On a different node, or even a node from a different experiment, runs:
# NODE_IP should be the hostname/IP address of the CloudLab node you are on.
# NODE_PORT is the value between 30000 and 32767 that Kubernetes give your backend-nodeport service
curl NODE_IP:NODE_PORT

5. Multi-Service Communication

Concept

  • In a real apps, multiple services are talking to each other.

Quote of the Day App

Architecture
  • API Service: returns some random quotes
  • Time Service: return current server time
  • Frontend Service: aggregate both responses and presents a combined message to the user.
API Service: quote
  • Create and deploy a deployment manifest called quote-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: quote
spec:
  replicas: 2
  selector:
    matchLabels:
      app: quote
  template:
    metadata:
      labels:
        app: quote
    spec:
      containers:
      - name: quote
        image: ealen/echo-server
        env:
        - name: QUOTES
          value: |
            "The journey of a thousand miles begins with a single step."
            "What you do today can improve all your tomorrows."
            "In the middle of difficulty lies opportunity."
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: quote-svc
spec:
  selector:
    app: quote
  ports:
  - port: 80
    targetPort: 80
Time Service
  • Create and deploy a deployment manifest called time-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: time
spec:
  replicas: 1
  selector:
    matchLabels:
      app: time
template:
    metadata:
      labels:
        app: time
    spec:
      containers:
      - name: time
        image: busybox
        command: ["sh","-c"]
        args:
          - |
            while true; do
            printf "HTTP/1.1 200 OK\r\nContent-Type: text/plain\r\n\r\n$(date)\n" \
            | nc -l -p 8080 -s 0.0.0.0;
            done
        ports:
        - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: time-svc
spec:
  selector:
    app: time
  ports:
  - port: 80
    targetPort: 8080
Frontend Service
  • Create and deploy a deployment manifest called time-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: frontend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: frontend
  template:
    metadata:
      labels:
        app: frontend
    spec:
      containers:
      - name: frontend
        image: busybox
        command: ["sh","-c"]
        args:
          - |
            while true; do
            Q=$(wget -qO- http://quote-svc);
            T=$(wget -qO- http://time-svc);
            printf "HTTP/1.1 200 OK\r\nContent-Type: text/plain\r\n\r\nQuote: $Q\nTime: $T\n" \
            | nc -l -p 8080 -s 0.0.0.0 ;
            done
        ports:
        - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: frontend-svc
spec:
  type: NodePort
  selector:
    app: frontend
  ports:
  - port: 80
    targetPort: 8080

Test these services with the following:

kubectl get svc frontend-svc
curl http://<NODE-IP>:<NODEPORT>

flowchart TB
%% User
U["External User<br/>curl http://NodeIP:NodePort"]

%% NodePort Service
subgraph Node["frontend-svc (Service: NodePort)"]
    NP["NodePort: 31080<br/>(maps → targetPort 8080)"]
end

%% Frontend Pod
subgraph Frontend["Frontend Pod"]
    FE["containerPort: 8080<br/>(aggregator)"]
end

%% ClusterIP Services
subgraph Services["ClusterIP Services (internal only)"]
    QS["quote-svc<br/>targetPort 80"]
    TS["time-svc<br/>targetPort 80"]
end

%% Quote Pods
subgraph QuotePods["Quote Pods"]
    Q1["containerPort: 80"]
    Q2["containerPort: 80"]
end

%% Time Pod
subgraph TimePod["Time Pod"]
    T1["containerPort: 80"]
end

%% Connections
U --> NP --> FE
FE --> QS
FE --> TS
QS --> Q1
QS --> Q2
TS --> T1

%% Styling
classDef user fill:#f0f8ff,stroke:#4169e1,stroke-width:2px;
classDef service fill:#fffacd,stroke:#daa520,stroke-width:2px;
classDef pod fill:#f0fff0,stroke:#2e8b57,stroke-width:2px;
class U user
class Node,Services service
class Frontend,QuotePods,TimePod pod

6. Kubernetes Networking Theory

Review: NAT

  • Network Address Translation (NAT) is a technique where a network device (typically a router or firewall) rewrites the source or destination IP address of packets as they pass through.
  • Why it exists:
    • IPv4 has a limited address space: NAT lets many internal devices share a single public IP.
    • Provides a layer of isolation/security by hiding internal addresses.
  • Types of NAT:
    • SNAT (Source NAT): Rewrites the source IP of outbound traffic (e.g., your laptop 192.168.1.10 to public IP 203.0.113.5).
    • DNAT (Destination NAT): Rewrites the destination IP of inbound traffic (e.g., packets to 203.0.113.5 to 192.168.1.10).
  • PAT (Port Address Translation, aka masquerading): Multiple devices share one public IP by mapping connections to different ports.
  • In Kubernetes context:
    • Kube-proxy may use NAT (via iptables/ipvs) to redirect Service ClusterIP to Pod IP.
    • The Kubernetes networking model tries to minimize NAT inside the cluster: every Pod gets a unique, routable IP so pods can talk directly, no hidden rewrites. NAT is mostly used only at the cluster boundary (e.g., NodePort, LoadBalancer, egress to the Internet).
flowchart LR
subgraph Private["Private Network (LAN)"]
    A["Pod / Host<br/>192.168.1.10"]
    B["Pod / Host<br/>192.168.1.11"]
end

subgraph Router["Router / NAT Device"]
    N1["Source NAT (SNAT)<br/>Change source 192.168.x.x → 203.0.113.5"]
    N2["Destination NAT (DNAT)<br/>Change destination 203.0.113.5 → 192.168.1.10"]
end

subgraph Internet["Public Internet"]
    S["Public Server<br/>198.51.100.20"]
end

%% Outbound
A -->|"Outbound packet<br/>Src=192.168.1.10, Dst=198.51.100.20"| N1
N1 -->|"Translated packet<br/>Src=203.0.113.5, Dst=198.51.100.20"| S

%% Inbound
S -->|"Inbound packet<br/>Dst=203.0.113.5"| N2
N2 -->|"Translated packet<br/>Dst=192.168.1.10"| A

%% Styling
classDef private fill:#f0fff0,stroke:#2e8b57,stroke-width:2px;
classDef nat fill:#fffacd,stroke:#daa520,stroke-width:2px;
classDef internet fill:#f0f8ff,stroke:#4169e1,stroke-width:2px;
class Private private
class Router nat
class Internet internet

The Four Networking Requirements

  • NAT: Network Address Translation
  • Per K8s design, Kubernetes assumes a flat, non-NATted network between all entities:
    • All pods can communicate with all other pods without NAT.
    • All nodes can communicate with all pods without NAT.
    • Pod IPs are the same inside and outside the pod. (No masquerading from the pod’s perspective).
    • Services (ClusterIP, NodePort, LoadBalancer) are implemented via virtual IPs and iptables/ipvs rules that redirect traffic to backing pods.
  • This model makes things simple at the app level: each pod just gets an IP and DNS name, no special networking code.

How Services Work Under the Hood

  • ClusterIP: The kube-proxy component sets up iptables or ipvs rules to redirect traffic from the service’s virtual IP to one of the pod IPs behind it.
  • NodePort: Kube-proxy additionally opens a port (30000–32767) on each node, then DNATs traffic to the service ClusterIP.

Container Networking Interface (CNI)

  • Kubernetes itself does not implement networking.
  • It relies on CNI plugins to configure pod networking.
  • CNI is a specification: containers call CNI when they’re created, and CNI sets up network interfaces, IP assignment, and routing.
    • kubelet launches a pod and calls the configured CNI plugin.
    • The plugin sets up a veth pair (virtual Ethernet) to connect the pod’s network namespace to the host.
    • IP address is assigned (via IPAM plugin or cluster-wide allocator).
    • Routes and bridges are created to connect pod-to-pod and pod-to-node traffic.

Popular CNI Implementations

  • Flannel: Simple overlay network (VXLAN), flat layer-3 fabric.
  • Calico: Pure layer-3 networking with BGP; supports network policies.
  • Cilium: Uses eBPF for dataplane efficiency and fine-grained security.
  • Weave Net: Simple mesh overlay, encrypted by default.
